User manual Behringer HA8000 - Headphone Amplifier HA8000

Operating instructions and pdf manual for use - Behringer HA8000 - Headphone Amplifier HA8000 User manual, User manual Behringer HA8000 - Headphone Amplifier HA8000, Behringer, HA8000, Headphone, Amplifier, HA8000, Video


User manual for Behringer HA8000 - Headphone Amplifier HA8000

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Behringer  HA8000 - Headphone Amplifier HA8000
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Headphone Amplifiers
  • Safety instructions
  • Startup and operation of the headphone amplifiers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 150 USD
We recommend checking out our discussion threads on the Behringer HA8000 - Headphone Amplifier HA8000, which address similar problems with connecting and setting up Headphone Amplifiers Behringer.



User manual for the Behringer HA8000 - Headphone Amplifier HA8000

The user manual for the Behringer HA8000 - Headphone Amplifier HA8000 provides necessary instructions for the proper use of the product Pro Audio - Recording - Headphone Amplifiers.

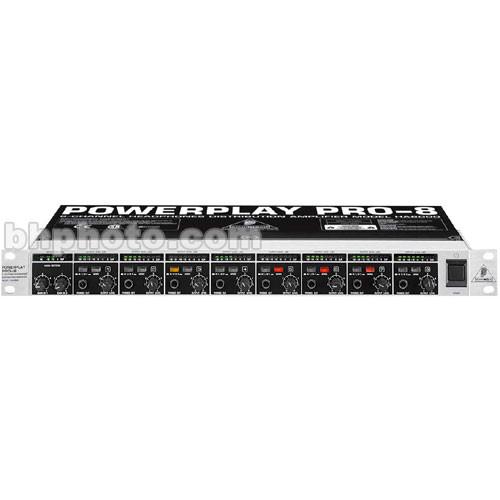

The Behringer POWERPLAY HA8000 is an 8-channel high-power headphones mixing and distribution amplifier designed for stage and studio recording applications. With two independent stereo main inputs as well as a dedicated direct input on each channel, the unit allows the engineer to prepare a customized monitoring mix for each musician.

Each of the unit's amplifiers can drive loads down to 8 ohms and each features its own 8-digit LED output level meter, Main in 1/Main in 2 select switch, a stereo or dual mono select switch, and a 1/4" direct input for integrating an additional sound source. The front panel of each section gives one 1/4" phones out jack per channel. The main section includes a dedicated 5-segment LED input meter, plus Main in 1, and Main in 2 level dials.

The back of the unit features an additional 1/4" phones output per channel, which allows a total of 16 pairs of headphones to listen to 8 separate mixes at once.
If you own a Behringer headphone amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer HA8000 - Headphone Amplifier HA8000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer  HA8000 - Headphone Amplifier HA8000Download user manual for Behringer HA8000 - Headphone Amplifier HA8000
(PDF file, 3.22 MB)
Additional parameters of the Behringer HA8000 - Headphone Amplifier HA8000:
Number of Channels 8
Input Connections 2 x 1/4" TRS Phone(L/Mono, R) Main Input 1, Balanced
2 x 1/4" TRS Phone(L/Mono, R) Main Input 2, Balanced
8 x 1/4" Stereo Phone Direct Ins
Output Connectors 16 x 1/4" Stereo Phone
Maximum Output Level +24 dBm (load impedance 100 ohms)
Function Controls 1 x Main In 1 Level Control Knob
1 x Main In 2 Level Control Knob
8 x Channel Output Level Control Knobs
8 x Main In 1/Main In 2 Channel Monitoring Switches
8 x Mono Channel Monitoring Switches
Frequency Response 10 Hz - 150 kHz, +/-3 dB
THD + N 0.006% typ. @ +4 dBu, 1 kHz, Gain 1
Noise 22 Hz - 22 kHz >90 dB @ 0 dBu
Display Input Level:
4-digit LED: -30, -12, 0 dB, CLIP
Output Level:
8-digit LED: -30, -24, -18, -12, -6, -3, 0 dB, CLIP
Dimensions 1.75 x 19 x 8.5" (44.5 x 482.6 x 217 mm)
Weight 5.2 lb (2.35 kg)
Specialties Up to 150 kHz Frequency Response
Individual Output Level Displays
Individual Direct Inputs Per Channel
Packaging Info
Package Weight 7.45 lb
Box Dimensions (LxWxH) 20.7 x 12.1 x 4.4"
The user manual for the Behringer HA8000 - Headphone Amplifier HA8000 can be downloaded in .pdf format if it did not come with your new headphone amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer headphone amplifierss, where you can use our link to download the user manual for the Behringer HA8000 - Headphone Amplifier HA8000.

The user manual lists all of the functions of the Behringer HA8000 - Headphone Amplifier HA8000, all the basic and advanced features and tells you how to use the headphone amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer HA8000 - Headphone Amplifier HA8000. User manuals are also available on the Behringer website under Pro Audio - Recording - Headphone Amplifiers.
