User manual for the Behringer iNUKE NU4-6000 Ultra-Lightweight High-Density NU4-6000

The user manual for the Behringer iNUKE NU4-6000 Ultra-Lightweight High-Density NU4-6000 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

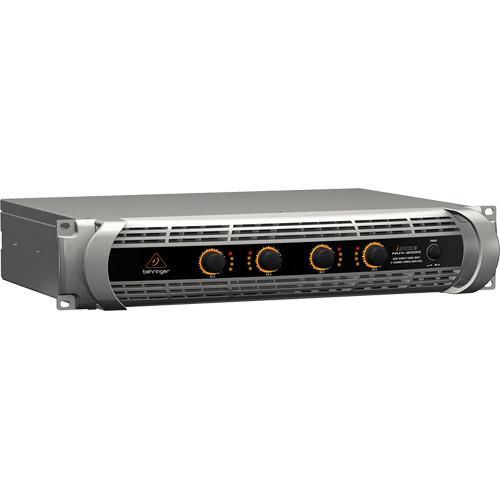

The Behringer iNUKE NU4-6000 4-Channel Power Amplifier features four 1,500W amplifiers in a 2RU rackmountable chassis. You can run your stereo full-range mains plus two separate monitor mixes. You may also operate your subwoofers in bridge mode (3,000W) and run mid and high packs in mono biamp mode (2 x 1,500W). The unit utilizes a high-density Class-D technology amplifier design combined with an efficient switch-mode power supply and a back-to-front ventilation system to keep cool while operating. For additional protection the amplifier also includes DC, LF, and thermal overload circuits.

All channels on the front panel feature positive-detent gain controls with signal LEDs that light when a signal is present, as well as clip LEDs to indicate when the signal is distorted and you need to reduce the input signal.

The rear panel features combo XLR and 1/4" TRS input connectors making the unit compatible with a variety of balanced and unbalanced sources. Professional twist-lock speaker sockets are provided to ensure that efficient transfer of power to your speakers. The rear panel also has the switches that enable the amplifier to work in Quad Mono, Dual Stereo, or Dual Mono Bridge mode. A built-in crossover switch enables the amplifier to operate in biamp mode, sending low-frequency content to passive subwoofers, while the high-frequency output is channeled to full-range loudspeakers.
If you own a Behringer power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer iNUKE NU4-6000 Ultra-Lightweight High-Density NU4-6000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Behringer iNUKE NU4-6000 Ultra-Lightweight High-Density NU4-6000:
Specifications
    Power
    Maximum Output Power 4-channel
    8 Ω per channel: 4 x 440 W
    4 Ω per channel: 4 x 860 W
    2 Ω per channel: 4 x 1,600 W
    Bridge Connection
    8 Ω per bridged pair: 2 x 1,600 W
    4 Ω per bridged pair: 2 x 3,000 W
    System
    Controls Front: Power switch gain controls (channels 1, 2, 3, and 4)

    Rear: 2 x Mode switch (bridge / stereo / mono)
    2 x Crossover switch (full-range / 100 Hz)
    Power Amber backlit illuminated gain controls
    Indicator Lights Limit (per channel): Red LED (0 dB, full scale)
    Signal (per channel): Amber LED (-24 dB, -12 dB, -6 dB)
    Connectors
    Inputs 4 x combo jacks
    Input Impedance 10 kΩ unbalanced, 20 kΩ balanced
    Outputs 4 x locking-style professional speaker connectors
    Output Circuit Type: Class-D
    Distortion <0.2%
    Frequency Response 20 Hz to 20 kHz, +0 / -2 dB
    Damping Factor >120 at 8 Ω
    Signal-to-Noise Ratio >100 dB
    Cooling Continuously variable speed fan
    Back-to-front air flow
    Amplifier Protection: Thermal and DC protection, stable into reactive or mismatched loads
    Protection Load Protection: On / off muting, DC-fault power supply shutdown
    General
    Power Supply USA / Canada: 120 V~, 60 Hz, (25 A, 250 VAC)
    Power Consumption At 1/8 Maximum Non-Clipped Output at 2 Ω: 620 W
    At Maximum Attainable Output at 2 Ω: 4,800 W
    Main Connector Standard IEC receptacle
    Dimensions (H x W x D) Approximately 3.7 x 19.0 x 12.2" (93.9 x 482.6 x 309.8 mm)
    Weight Approximately 12.4 lb (5.6 kg)
    Packaging Info
    Package Weight 17.0 lb
    Box Dimensions (LxWxH) 21.8 x 14.8 x 6.6"
