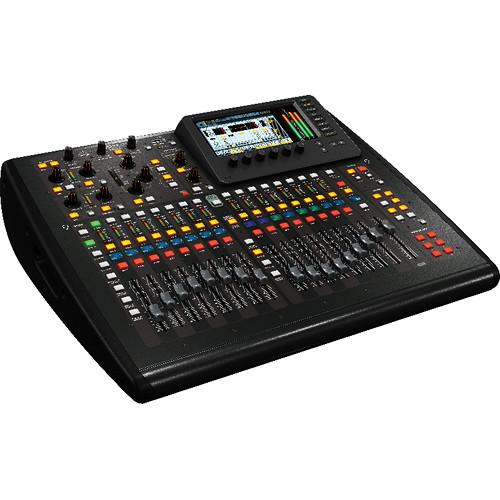

The X32 Compact 40-Channel, 25-Bus Digital Mixing Console from Behringer provides a wealth of features in a compact design, ideal for professional live and recording applications. The mixer features 16 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

The mixer has 16 analog XLR outputs, as well as 6 balanced line-level 1/4" Aux inputs and outputs, and two 1/4" headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The mixer also has a pair of AES50 ports that feature Klark Teknik SuperMAC networking capability for use with 48-channel digital snakes for ultra-low jitter and latency. The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.

The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular processors, such as Lexicon 480L and PCM70, EMT250 and Quantec QRS, etc. The integrated high-power 40-bit floating-point DSP system delivers "unlimited" dynamic range, no internal overload, and near-zero latency between inputs and outputs for top-quality performance. The mixer also has 6 mute groups and 8 DCA groups.

The intuitive interface offers ease-of-use with a dedicated channel strip section that has direct-access controls. There is also a high-resolution 7" color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The unit has 17 motorized 100mm faders for extensive user-definable control.

The system has a USB flash connector to provide file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all of the physical inputs and outputs.

Other features of the X32 Compact include networked remote control or show setups with the included remote editor software via USB and Ethernet ports. You can even conveniently handle the scene management duties of complex productions. All of these features are packed into a compact and durable enclosure to ensure a long life of professional use.
If you own a Behringer digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer X32 Compact 40-Input, 25-Bus Digital X-32 COMPACT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer X32 Compact 40-Input, 25-Bus Digital X-32 COMPACTDownload user manual for Behringer X32 Compact 40-Input, 25-Bus Digital X-32 COMPACT
(PDF file, 11.11 MB)
Additional parameters of the Behringer X32 Compact 40-Input, 25-Bus Digital X-32 COMPACT:
Specifications
    Processing
    Number of Channels 32 input channels
    8 aux in channels
    8 FX return channels
    16 buses, 6 matrices
    Main LRC
    Effects Engine Internal:
    8 true-stereo
    16 mono
    Scene File Memory 100 total recall scenes (including preamp and fader)
    Signal Processing 40-bit floating point
    Conversion Cirrus Logic A/D CS5368, D/A CS4385
    24-bit @ 44.1 / 48 kHz
    114 dB dynamic range
    Latency Timings Local I/O: 0.8 mS (local in > console processing > local out)

    Networked I/O: 1.1 mS (stagebox in > console processing > stagebox out)
    Total I/O Channels 150 / 160
    Connectors
    Mic/Line Inputs 16 x XLR balanced
    Line Outputs 8 x XLR balanced
    AUX Inputs 6 x 1/4" TRS
    2 x RCA line-level (1 x L/R)
    AUX Outputs 6 x 1/4" TRS
    2 x RCA line-level (1 x L/R)
    Talkback Mic Input 1 x XLR (no internal mic)
    Monitor Outputs 2 x 1/4" TRS balanced
    Headphone Output 2 x 1/4" TRS stereo
    AES50 Ports 2 x SuperMAC
    Expansion Port 1 x 32-channel I/O card, various standards available
    P-16 Connector 1 x Ultranet (no power supplied)
    MIDI In/Out 1 / 1
    Ethernet Port 1 x RJ45 (for remote control)
    USB Port 1 x USB 2.0 type A (for audio and data import/export)
    Microphone Inputs
    Designer MIDAS
    THD + Noise < 0.006% A-weighted (20 dB gain, 0 dBu out)
    Input Impedances 5kΩ unbalanced
    10kΩ balanced
    Maximum Input Level +23 dBu without clipping
    Phantom Power +48V, switchable per channel
    Equivalent Input Noise -128 dBu (input shorted)
    CMRR > 70 dB @ 20 dB gain (typical)
    > 80 dB @ 40 dB gain
    Performance
    Frequency Range 10 Hz to 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB
    Dynamic Range Analog in to analog out: 106 dB
    A/D dynamic range, preamp and converter: 109 dB
    D/A dynamic range, converter and output: 108 dB
    Cross-Talk Rejection 100 dB @ 1 kHz, adjacent channels
    Residual Noise -87 dBu, A-weighted
    Input Impedance TRS: 40kΩ balanced, 20kΩ unbalanced
    Maximum Input Level TRS: +16 dBu without clipping
    Output Level XLR: +4 dBu, nominal; +21 dBu, maximum
    TRS: +4 dBu, nominal; +16 dBu maximum
    Output Impedance XLR: 75Ω, balanced or unbalanced
    TRS: 300Ω balanced, 150Ω unbalanced
    Headphone Output Impedance: 40Ω
    Level: +25 dBm (stereo)
    Indicator
    Display 7", 800 x 480, 262k color TFT (Main Screen)
    LCD Screen 128 x 64 LCD with RGB color backlight (Channel Selector Screen)
    Metering 3 x 24-segment LED meters
    Power
    Power Supply 100 to 240V (50/60 Hz) switch-mode autorange
    Power Consumption 120 W
    Dimensions & Weight
    Dimensions (W x D x H) 8.5 x 24.6 x 20" (215 x 625 x 510 mm)
    Weight 33.9 lb (15.4 kg)
    Packaging Info
    Package Weight 46.4 lb
    Box Dimensions (LxWxH) 29.5 x 25.0 x 12.5"
