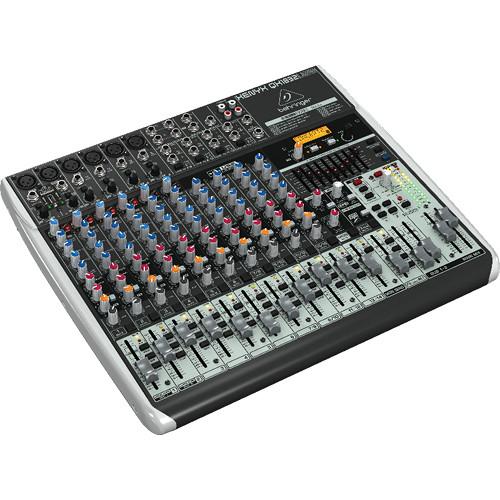

Behringer XENYX X1832USB -18-Input USB Audio Mixer QX1832USB
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 300 USD
We recommend checking out our discussion threads on the Behringer XENYX X1832USB -18-Input USB Audio Mixer QX1832USB, which address similar problems with connecting and setting up Analog Recording Mixers Behringer.


User manual for the Behringer XENYX X1832USB -18-Input USB Audio Mixer QX1832USB

The user manual for the Behringer XENYX X1832USB -18-Input USB Audio Mixer QX1832USB provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

The Behringer XENYX X1832USB-18-Input USB Audio Mixer with Effects is an 18-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. The mixer features six microphone preamps, "British"-style EQ, and six easy-to-use one-knob compressors.
If you own a Behringer analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer XENYX X1832USB -18-Input USB Audio Mixer QX1832USB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Behringer XENYX X1832USB -18-Input USB Audio Mixer QX1832USB:
Specifications
    Total # Of Inputs 18 inputs
    Mic/Line Inputs 6 x XLR microphone inputs
    8 x 1/4" TRS line-level inputs
    Stereo Line Inputs 4 x 1/4" TRS left & right paired inputs
    AUX Sends 3
    AUX Returns 3 stereo returns
    Inserts 4
    BUS (Group) Outputs 2 sub groups
    2 Trk Master I/O 2 x balanced XLR outputs
    2 x 1/4" TRS outputs
    ALT I/O 2 x 1/4" TRS sub outputs
    stereo RCA 2-track outputs
    Monitor Outputs 2 x 1/4" TRS control room outputs
    1 x 1/4" stereo headphone output
    EQ Section 3-Band EQ with mid sweep on every channel
    Graphic EQ 9-Band stereo graphic EQ
    Solo/Mute Mute and solo buttons on every channel
    Channel Level Control 60 mm faders
    Trim/Gain Control Yes
    Phantom Power +48 V phantom
    Metering 12-segment stereo LED meters
    Clip LEDs on every channel
    Microphone Inputs
    Type XLR, electronically balanced, discrete input circuit
    Mic Input Noise (E.I.N.) 20 to 20,000 Hz
    At 0 Ω source resistance: -134 dB/135.7 dB A-weighted
    At 50 Ω source resistance: -134 dB/133.3 dB A-weighted
    At 150 Ω source resistance: -129 dB/130.5 dB A-weighted
    Frequency Response Preamp:
    < 10 to 150,000 Hz (-1 dB)
    < 10 to 200,000 Hz (-3 dB)

    Mic Input to Main Output:
    <10 to 90,000 Hz (+0 dB / -1 dB)
    <10 to 160,000 Hz (+0 db / -3 dB)
    Dynamic Range Not specified by the manufacturer
    Gain Range 10 to 60 dB
    Maximum Input Level +12 dBu at +10 dB Gain
    Impedance Approximately 2.6 kΩ balanced
    Signal-to-Noise Ratio 110 dB A-weighted (0 dBu In @ +22 dB gain)
    Total Harmonic Distortion (THD) 0.005% / 0.004% A-weighted
    Line Input
    Type 1/4" TRS connector, electronically balanced
    Impedance Approximately 20 kΩ
    10 kΩ unbalanced
    Gain Range -10 to +40 dB
    Maximum Input Level 30 dBu
    Crosstalk Main fader closed: 90 dB
    Channel muted: 89 dB
    Channel fader closed: 89 dB
    Stereo Input
    Type 1/4" TRS connector, electronically balanced
    Impedance Approximately 20 kΩ
    Maximum Input Level 22 dBu
    EQ Type Mono Channels Low: 80 Hz, ± 15 dB
    Mid: 100 to 8,000 Hz, ± 15 dB
    High: 12,000 Hz, ± 15 dB
    EQ Type Stereo Channels Low: 80 Hz, ± 15 dB
    Low Mid: 500 Hz, ± 15 dB
    Mid: 3,000 Hz, ± 15 dB
    High: 12,000 Hz, ± 15 dB
    AUX Section
    AUX Sends Type: 1/4" TS connector, unbalanced

    Impedance: Approximately 120 Ω

    Maximum Output Level: 22 dBu
    AUX Returns Type: 1/4" TRS connector, electronically balanced

    Impedance: Approximately 20 kΩ balanced, 10 kΩ unbalanced

    Maximum Input Level: 22 dBu
    Main Outputs Type: XLR, electronically balanced and 1/4" TRS balanced

    Impedance: Approximately 240 Ω symmetrical, 120 Ω unbalanced

    Maximum Output Level: 28 dBu
    Control Room Outputs Type: 1/4" TS unbalanced

    Impedance: Approximately 120 Ω

    Maximum Output Level: 22 dBu
    Headphone Outputs Type: 1/4" TRS connector, unbalanced

    Maximum Output Level: 19 dBu at 150 Ω (+25 dBm)
    DSP Converter: 24-bit Sigma-Delta, 64/128-times oversampling

    Sampling Rate: 40 kHz
    USB Audio: Stereo In/Out

    Connector: Type B

    Converter: 16-bit

    Sample Rate: 48 kHz
    Noise Main mix at -∞ with channel fader at -∞: -101 dB

    Main mix at 0 dB with channel fader at -∞: -93 dB

    Main mix at 0 dB with channel fader at 0 dB: -81 dB
    Power Supply
    Mains 100 to 240 V, 50/60 Hz
    Power Consumption 50 W
    Fuse 100 to 240 V 1.6 A H 250 V
    Connection Standard IEC receptacle
    Dimensions (H x W x D) 3.54 x 13.98 x 16.92" (90 x 355 x 430 mm)
    Weight 10.9 lb (4.94 kg)
    Packaging Info
    Package Weight 13.4 lb
    Box Dimensions (LxWxH) 20.7 x 17.4 x 5.9"
