User manual BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A

Operating instructions and pdf manual for use - BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A User manual, User manual BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A, BenQ, MS504A, 3200-Lumen, SVGA, DLP, Multimedia, Proje


User manual for BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A

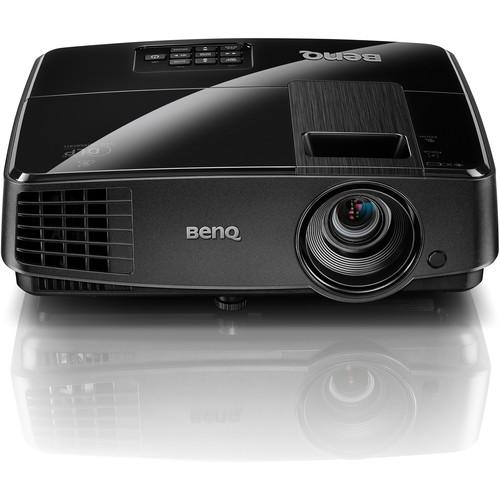

BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A
  • Manufacturer: BenQ
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your BenQ
  • Settings and expert assistance
  • Contact BenQ service
  • Troubleshooting
  • Warranty information
  • Price: 289 USD
We recommend checking out our discussion threads on the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A, which address similar problems with connecting and setting up Multimedia Projectors BenQ.



User manual for the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A

The user manual for the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector is suitable for use in educational and professional environments. It features 3200 lumens of brightness and a notable 13,000:1 contrast ratio. Additionally, this projector has an SVGA 800 x 600 native resolution, and supports up to 1600 x 1200 UXGA video signals. The MS504A is powered by a DLP chip system, and the lamp features a long life of up to 10,000 hours in Eco Lamp Care mode. Furthermore, you can use the MS504A to project up to a 300" diagonal screen size, and it features a 1.86 - 2.04:1 throw ratio.

With S-video, RCA composite video, and two VGA inputs, this projector is well equipped for external video sources. It also supports component video cables over VGA when used with an optional adapter. Other features include a 0.5W standby power consumption level, optional ceiling mount compatibility, and the inclusion of a remote control and VGA cable. A 2W speaker is also built into the projector for audio playback.
If you own a BenQ multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504ADownload user manual for BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A
(PDF file, 4.43 MB)
Additional parameters of the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A:
Specifications
Image Display
Display System 1-Chip DLP
Native Resolution SVGA - 800 x 600
Supported Resolutions Minimum: VGA - 640 x 480
Maximum: UXGA - 1600 x 1200
Format NTSC
PAL
SECAM
HDTV Compatibility 480i
480p
576i
576p
720p
1080i
1080p
Brightness 3200 Lumens
Offset 120% ± 5%
Aspect Ratio Native: 4:3
Contrast Ratio 2D — 13000:1
DLP Link 3D Yes
Color Range 1.07 Billion
Scan Vertical: 23 - 120 Hz
Horizontal: 15 - 102 Hz
Lens
Lens F 2.56 - 2.8 (f = 21 - 23.1 mm)
Zoom 1.1x
Throw Ratio 1.86 - 2.04:1 (53" @ 2 m)
Projection Size 30 - 300" / 76.20 - 762.00 cm
Features
Keystone Correction Yes, Vertical: ± 40°
Ceiling Mountable Yes
Built-in Speaker Yes, 2 W (Mono)
Picture Modes Cinema, Dynamic, Presentation, User 1, sRGB
Input/Output Connectors
Inputs/Outputs 2x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Output)
1x RCA Composite Video (Input)
1x S-Video Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x Mini-USB Type-B Female
1x RS-232C Control
General
Watts 190 W
Life Normal Mode: 4000 Hours
Eco Mode: 6000 Hours
smartEco Mode: 6500 Hours
SmartEco Lamp Care Mode: 10000 Hours
Fan Noise Normal Mode: 33 dB
Eco Mode: 28 dB
Remote Control Yes
Languages Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 270 W
Eco Mode: 220 W
Standby Mode: <.5 W
Dimensions (WxHxD) 11.1 x 3.7 x 8.7" / 28.2 x 9.4 x 22.1 cm With Feet
Weight 3.96 lb / 1.80 kg
Packaging Info
Package Weight 6.1 lb
Box Dimensions (LxWxH) 13.858 x 11.417 x 5.512"
The user manual for the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BenQ users keep a unique electronic library for BenQ multimedia projectorss, where you can use our link to download the user manual for the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A.

The user manual lists all of the functions of the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BenQ service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BenQ MS504A 3200-Lumen SVGA DLP Multimedia Projector MS504A. User manuals are also available on the BenQ website under A/V Presentation - Projectors - Multimedia Projectors.
