User manual BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570

Operating instructions and pdf manual for use - BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570 User manual, User manual BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570, BenQ, MX570, 3200-Lumen, XGA, DLP, Multimedia, Projector, MX


User manual for BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570

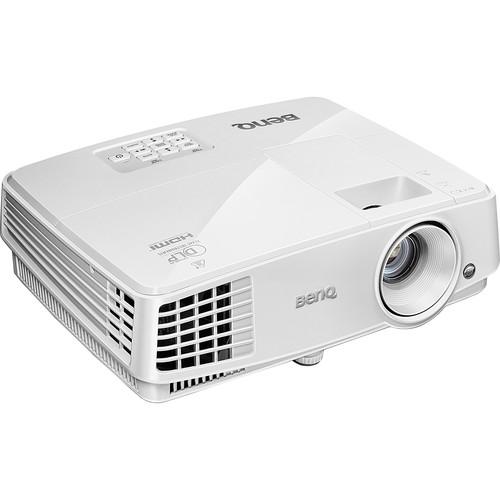

BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570
  • Manufacturer: BenQ
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your BenQ
  • Settings and expert assistance
  • Contact BenQ service
  • Troubleshooting
  • Warranty information
  • Price: 479 USD
We recommend checking out our discussion threads on the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570, which address similar problems with connecting and setting up Multimedia Projectors BenQ.



User manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570

The user manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Enjoy detailed high-resolution images with the BenQ MX570 3200 Lumen XGA DLP Multimedia Projector. It features 3200 lumens of brightness and a 13,000:1 contrast ratio for easy viewing in virtually any environment. It has an XGA 1024 x 768 native resolution for viewing content in detail. The MX570 is powered by a DLP chip system, and the lamp features a 4000 hour life. The projector is also equipped with SmartEco technology, which will extend the life of the lamp by matching its power requirements to the needs of the displayed video without sacrificing brightness, color, or contrast. Designed to conserve power, its standby power consumption level is 0.5W.

This projector is well-equipped for a multitude of video sources with two VGA, one HDMI, one S-video, and one composite video input. You can use the MX570 to project images up to a 300" diagonal screen size, and it features a 1.51 to 1.97:1 throw ratio to allow for a wide range of placement. Plus you can control it via LAN through Ethernet or RS-232C with Crestron or PJ-Link. Other features include 1.3x manual zoom and a 10W speaker.
If you own a BenQ multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570Download user manual for BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570
(PDF file, 4.86 MB)
Additional parameters of the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570:
Image Display
Display System 1-Chip DMD DLP
Native Resolution XGA - 1024 x 768
Supported Resolutions Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200
Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 480i
480p
576i
576p
720p
1080i
1080p
Pixels 786,432
Brightness 3200 Lumens
Offset 115% ± 5% vertical
Aspect Ratio Native: 4:3
Supported: 16:9
Supported: 16:10
Contrast Ratio 13000:1
DLP Link 3D Yes
Supported 3D Formats Frame Sequential (up to 720p)
Frame Packing (up to 1080p)
Side by Side (up to 1080p)
Top Bottom (up to 1080p)
Color Range 1.07 Billion
Scan Horizontal: 15 - 102 kHz
Vertical: 23 - 120 Hz
Lens
Focus Manual
Lens F 2.59 - 2.87 (f = 16.88 - 21.88 mm)
Zoom Manual: 1.3x
Throw Distance 5.91 - 20.0' (1.8 - 6.1 m)
Throw Ratio 1.51 - 1.97:1 (65" @ 2 m)

±3%

Projection Size 60 - 300" / 152.40 - 762.00 cm (Max Diagonal: 300" / 762.00 cm)
Features
Keystone Correction Digital: Yes, Vertical: ± 40°
Picture-in-Picture None
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option None
Built-in Speaker Yes, 10 W
Internal Memory None
Closed Captioning Yes
Picture Modes Cinema, Cinema 3D, Dynamic, Presentation, User 1, User 2, sRGB
Input/Output Connectors
Inputs/Outputs 2x 15-pin VGA Video (Input)
1x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Output)
1x RCA Composite Video (Input)
1x S-Video Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x Ethernet LAN (Input)
1x Mini-USB Type-B Female (Input)
1x RS-232C Control (Input)
Wireless LAN None
General
Watts Normal Mode: 190 W
Life Normal Mode: 4000 Hours
Remote Control Yes
Security Cable Lock Slot
Keypad Lock
Languages Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Power Requirements 100-240 VAC, 2.7 A
Power Consumption Normal Mode: 280 W
Eco Mode: 220 W
Standby Mode (Normal): <.5 W
Altitude 9842' (3000 m)
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90%

at sea level, without condensation

Dimensions (WxHxD) 11.1 x 3.7 x 8.7" / 283.0 x 95.0 x 222.0 mm with feet
Weight 4.19 lb / 1.9 kg
Packaging Info
Package Weight 6.5 lb
Box Dimensions (LxWxH) 13.8 x 11.5 x 5.4"
The user manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BenQ users keep a unique electronic library for BenQ multimedia projectorss, where you can use our link to download the user manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570.

The user manual lists all of the functions of the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BenQ service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector MX570. User manuals are also available on the BenQ website under A/V Presentation - Projectors - Multimedia Projectors.
