User manual for the Beseler 23CIII-XL Condenser Enlarger 8004-02
The user manual for the Beseler 23CIII-XL Condenser Enlarger 8004-02 provides
necessary instructions for the proper use of the product Photography - Darkroom - Enlargers.

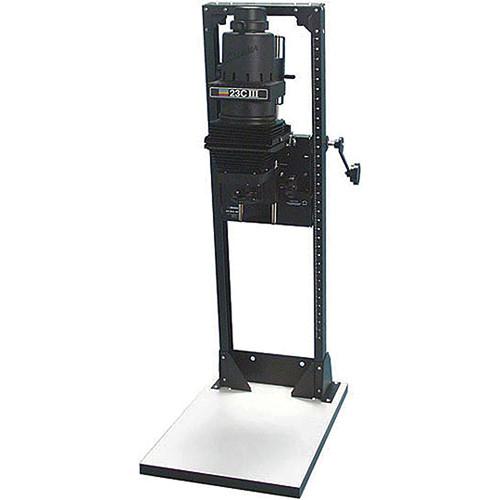

The American made Beseler 23CIII-XL Enlarger is one of the world's most popular medium format enlargers. Well over half a million have been purchased since it first became available in 1955. Many have been in near continuous use by schools, government agencies and businesses, and countless others have been handed down from father to son, to granddaughter, like the well-loved family possession that it has become.
|
If you own a Beseler enlargers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Beseler 23CIII-XL Condenser Enlarger 8004-02 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Beseler 23CIII-XL Condenser Enlarger 8004-02:
| Maximum Film Size | 6 x 9cm (2-1/4 x 3-1/4") | | Light Source | Condenser lamphouse | | Maximum Height | 57" (1448mm) | | Modular Head System | Accepts other 23CIII heads
(23CII heads are not compatible with the 23CIII system)
Condenser Lamphouse, 120 Volt (No.8130)
Condenser Lamphouse, 230 Volt (No.8131)
Dichro Lamphouse, 120 Volt (No.8132)
Dichro Lamphouse, 230 Volt (No.8133)
Variable Contrast Lamphouse, 120V (No.8134) | | Baseboard Size | H=1-1/4" (32mm)
W=16" (406mm)
D=25-1/2" (648mm) | | Maximum Print Size On Baseboard | Larger than 16 x 20" (+ 17-1/2 x 22") | | Filter Drawer | Included (accepts 5-1/2 x 5-1/2" variable contrast, or color printing filters) | | Replacement Lamp | Screw mount PH-140 (75w/120v)
Older models require bayonet mount PH-111A bulb | | Reversible Column | No | | Wall Projection | Yes, no accessories required | | Tilts | Yes (left/right shift) | | Voltage | 120v (220v available with use of PH1400 bulb) | | Voltage Stabilized | No | | Weight | 60 lbs (27Kg) | | Specialties | All 23C3-XL enlargers are factory aligned using the most up-to-date laser technologies | | Accessories | Dust Cover (No.8047), Alignment Tool (No.8139), Replacement Focusing Knob with screw (No.8039), Heat Absorbing Glass (No.8042), Red Safety Filter (No.8040) | | Package Weight | 50.9 lb | | Box Dimensions (LxWxH) | 46.0 x 17.0 x 15.0" | |
The user manual for the Beseler 23CIII-XL Condenser Enlarger 8004-02 can be downloaded in .pdf
format if it did not come with your new enlargers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Beseler users keep a unique electronic library
for Beseler enlargerss,
where you can use our link to download the user manual for the Beseler 23CIII-XL Condenser Enlarger 8004-02.
The user manual lists all of the functions of the Beseler 23CIII-XL Condenser Enlarger 8004-02,
all the basic and advanced features and tells you how to use the enlargers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Beseler service.
