User manual for the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G

The user manual for the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

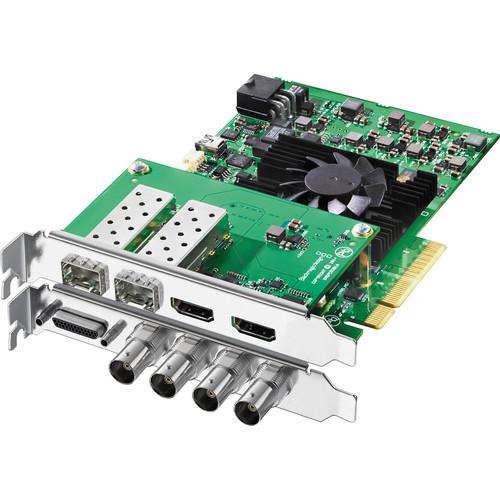

The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096x2160) at 60 fps. The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.
If you own a Blackmagic Design computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G:
SDI Video Input 2 x 12G-SDI
Supports single link and dual link 4:2:2/4:4:4 and is 2D/3D switchable
SDI Video Output 2 x 12G-SDI
Supports single link and dual link 4:2:2/4:4:4 and is 2D/3D switchable
Analog Video Input 1 x Component YUV on 3 BNCs switchable to S-Video or Composite
Component supports HD and SD
Analog Video Output 1 x Component YUV on 3 BNCs switchable to S-Video and Composite
Component supports HD and SD
HDMI Video Input 1 x HDMI type A connector (supports Ultra HD 4K 60p in 4:2:0)
HDMI Video Output 1 x HDMI type A connector (supports Ultra HD 4K 60p in 4:2:0)
Analog Audio Input 2 channels of professional balanced analog audio via XLR connectors
Analog Audio Output 2 channels of professional balanced analog audio via XLR connectors
AES/EBU Audio Input 2 channels unbalanced with sample rate converter
AES/EBU Audio Output 2 channels unbalanced
SDI Audio Input 16 channels embedded in HD/2K/4K
8 channels embedded in SD
SDI Audio Output 16 channels embedded in HD/2K/4K
8 channels embedded in SD
HDMI Audio Input 8 channels embedded in SD, HD, and Ultra HD
HDMI Audio Output 8 channels embedded in SD, HD, Ultra HD
Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format
Device Control Sony compatible RS-422 deck control ports
Serial ports TxRx direction reversible under software control
Computer Interface PCI Express 8-lane generation 2, compatible with 8- and 16-lane PCIe with HDMI mezzanine card
Supported Codecs AVC-Intra
AVCHD
Canon XF MPEG2
Digital SLR
DV-NTSC
DV-PAL
DVCPRO50
DVCPROHD
DPX
HDV
XDCAM EX
XDCAM HD
XDCAM HD422
Apple ProRes 4444
Apple ProRes 422 (HQ, 422, LT, & Proxy)
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2
Uncompressed 10 bit 4:4:4
Uncompressed 12-bit 4:4:4
Supported Applications Apple Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster
SD Format Support 625/25i PAL, 525/59.94i NTSC
HD Format Support 720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
2K Format Support 2048 x 1080PsF 23.98/24/25
2048 x 1080p 23.98/24/25/47.95/48/50/59.94/60
4K Format Support 3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60
4096 x 2160p 23.98/24/25/29.97/30/50/59.94/60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 372M, SMPTE 435, ITU-R BT.656 and ITU-R BT.601
SDI Metadata Support VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning
Sampling Video:
4:2:2, 4:4:4, and 4:4:4:4

Audio:
Television standard sample rate of 48 kHz at 24 bit
Color Precision 8/10-bit YUV 4:2:2 and 8/10/12-bit RGB 4:4:4 in HD, 2K, and 4K
Color Space REC 601, REC 709
HDMI Configuration HDMI automatically configures to connected display
Deep Color Support Yes
Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and 4K
Component analog video connections are switchable between SD and HD
HDCP Compatible No
Colorspace Conversion Hardware based real time on output
3D Processing Dual stream and frame packed capture & playback
HD Down Conversion Built-in hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Composite and S-Video. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles.
HD Up Conversion Built in hardware up conversion from SD to 720p or 1080p on playback. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom. HD outputs via HD-SDI, HDMI, and component analog.
Cross Conversion Built-in hardware cross conversion from 720p to 1080p, 1080p to 720p on playback.
Real Time Effects Apple Final Cut Pro internal effects
Adobe Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects DaVinci Resolve
Operating Systems Supported Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later
Windows 7 64-bit or Windows 8 64-bit
Linux
Software Update Firmware built into software driver; loaded at system start or via updater software
Physical Installation PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows, and Linux

Mac OS X systems require a Mac Pro computer with PCI Express slots
Operating Temperature 32 to 104°F (5 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90% non-condensing
Dimensions Depth: 6.69" (17 cm)
Weight 10.56 oz (299.37 g)
Packaging Info
Package Weight 1.9 lb
Box Dimensions (LxWxH) 8.8 x 6.1 x 3.2"
The user manual for the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design computer hardwares, where you can use our link to download the user manual for the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G.

The user manual lists all of the functions of the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G. User manuals are also available on the Blackmagic Design website under Professional Video - Post Production - Computer Hardware.


Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G - no comments have been made yet - be the first to add a comment

Post new comment/question/response regarding the Blackmagic Design DeckLink 4K Extreme 12G BDLKHDEXTR4K12G

Fields marked with * must be filled out.
