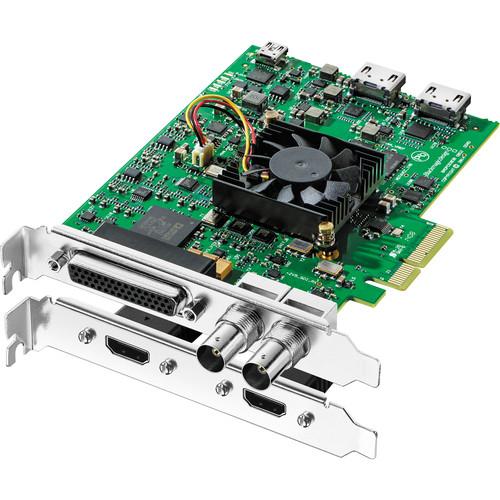

The DeckLink Studio 4K Capture & Playback Card from Blackmagic Design features 6G-SDI and 4K HDMI inputs/outputs which support resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the DeckLink Studio 4K offers a wide range of video and audio connections via an included breakout cable. These connections consist of analog component, S-Video, composite video, two channels of AES/EBU audio, and four channels of balanced analog audio. The card also provides RS-422 deck control, a reference input, and a down converted SD output.

DeckLink Studio 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac, Windows, and Linux based workstations.
If you own a Blackmagic Design computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design DeckLink Studio 4K Capture & BDLKSTUDIO4K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blackmagic Design DeckLink Studio 4K Capture & BDLKSTUDIO4KDownload user manual for Blackmagic Design DeckLink Studio 4K Capture & BDLKSTUDIO4K
(PDF file, 14.01 MB)
Additional parameters of the Blackmagic Design DeckLink Studio 4K Capture & BDLKSTUDIO4K:
Specifications
    SDI Video Input 1 x 10-bit 6G-SDI via BNC Connector

    Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
    SDI Video Output 1 x 10-bit 6G-SDI via BNC Connector

    Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
    Analog Video Input Via included breakout cable:
    1 x Component YUV on three BNC connectors (HD and SD)
    1 x Composite
    1 x S-Video
    HDMI Video Input 1 x HDMI Type A
    HDMI Video Output 1 x HDMI Type A
    SDI Audio Input 16 Channels embedded in HD, 2K, and 4K; 8 Channels embedded in SD
    SDI Audio Output 16 Channels embedded in HD, 2K, and 4K; 8 Channels embedded in SD
    HDMI Audio Input 8 Channels embedded
    HDMI Audio Output 8 Channels embedded
    Analog Audio Input 4 Channels of professional balanced analog audio via 1/4" jack connectors (via included breakout cable)
    Analog Audio Output 4 Channels of professional balanced analog audio via 1/4" jack connectors (via included breakout cable)
    Channels 3 & 4 can switch to AES/EBU outputs
    AES/EBU Audio Input 2 Channels unbalanced with sample rate converter (via included breakout cable)
    AES/EBU Audio Output 2 Channels unbalanced (via included breakout cable)
    Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output, for a total of 6 AES/EBU output audio channels
    Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K, or 4K format
    Device Control RS-422 deck control port (Sony-compatible)
    Serial ports TxRx direction reversible under software control
    Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8, and 16 lane PCIe slots
    Codecs Supported AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4
    Format Support SD
    625/25 PAL
    525/29.97 NTSC

    HD
    720p 50/59.94/60
    1080i 50/59.94/60
    1080PsF 23.98/24/25/29.97/30
    1080p 23.98/24/25/29.97/30/50/59.94/60

    2K
    2048x1080p 23.98/24/25

    4K
    3840x2160p 23.98/24/25/29.97/30
    4096x2160p 23.98/24/25
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, ITU-R BT.656, and ITU-R BT.601
    SDI Metadata Support VITC read for 3:2 pulldown removal
    VANC capture and playback using up to 3 lines of video in file
    HD RP188
    Closed captioning
    Audio Sampling 24-bit, 48 kHz
    Video Sampling 4:2:2 and 4:4:4 (4K is 4:2:2)
    SDI Color Precision 10-bit
    Color Space REC 601, REC 709
    HDMI Configuration HDMI automatically configures to connected display
    HDMI Resolution Pixel-for-pixel up to 4K resolutions
    HDMI Color Precision 8-bit RGB, 10-bit YUV
    HDCP Compatible No. HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
    Multiple Rate Support SDI video connections are switchable between SD, HD, 3G, and 6G formats
    Colorspace Conversion Hardware based, real-time
    HD Down Conversion Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
    HD Up Conversion Built in, high quality hardware up-conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog.
    Cross Conversion Built-in, high-quality hardware cross conversion from 1280x720 to 1920x1080 and 1920x1080 to 1280x720 on playback
    Real-Time Effects Apple Final Cut Pro internal effects
    Adobe Premiere Pro CC Mercury Playback Engine effects
    Avid Media Composer internal effects
    Blackmagic Design DaVinci Resolve
    Supported Operating Systems Mac OS X 10.8 Mountain Lion, Max OS X 10.9 Mavericks or later
    Windows 7 or Windows 8
    Linux
    Supported Applications Apple Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster
    Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X

    Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8

    Media Express, Blackmagic Control Panel and Blackmagic driver on Linux
    Internal Software Upgrade Firmware built into software driver; loaded at system start or via updater software
    EMC certifications FCC, CE and C-Tick
    Operating Temperature 32 to 104° F (5 to 40°C)
    Storage Temperature -4 to 113°F (-20 to 45°C)
    Relative Humidity 0 to 90%, non-condensing
    Length 5.55" (14.10 cm)
    Weight 5.9 oz (167.3 g)
    Packaging Info
    Package Weight 1.7 lb
    Box Dimensions (LxWxH) 7.0 x 5.5 x 3.5"
    The user manual for the Blackmagic Design DeckLink Studio 4K Capture & BDLKSTUDIO4K can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design computer hardwares, where you can use our link to download the user manual for the Blackmagic Design DeckLink Studio 4K Capture & BDLKSTUDIO4K.
