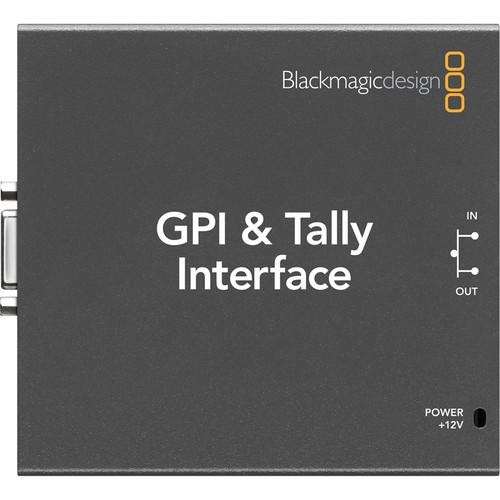

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
If you own a Blackmagic Design switcher accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design GPI & Tally Interface for ATEM SWTALGPI8 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design GPI & Tally Interface for ATEM SWTALGPI8:
Specifications
    Connections
    Contact Closure 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
    Inputs Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
    Outputs Mechanical relay contact closure to ground (maximum 30 V @ 1 A)
    Ethernet 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
    Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates
    Extras
    Software Included Configured via ATEM Switcher utility
    Firmware Upgrade Firmware built into software driver. Loaded at system startup or via updater software
    Operating System Microsoft Windows 7 and Apple Mac OS X
    Power Supply 12 V power supply included with international socket adapters for all countries
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 5.7 x 5.4 x 2.6"
    The user manual for the Blackmagic Design GPI & Tally Interface for ATEM SWTALGPI8 can be downloaded in .pdf format if it did not come with your new switcher accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design switcher accessoriess, where you can use our link to download the user manual for the Blackmagic Design GPI & Tally Interface for ATEM SWTALGPI8.

    The user manual lists all of the functions of the Blackmagic Design GPI & Tally Interface for ATEM SWTALGPI8, all the basic and advanced features and tells you how to use the switcher accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design GPI & Tally Interface for ATEM SWTALGPI8. User manuals are also available on the Blackmagic Design website under Professional Video - Studio & EFP Equipment - Switcher Accessories.
