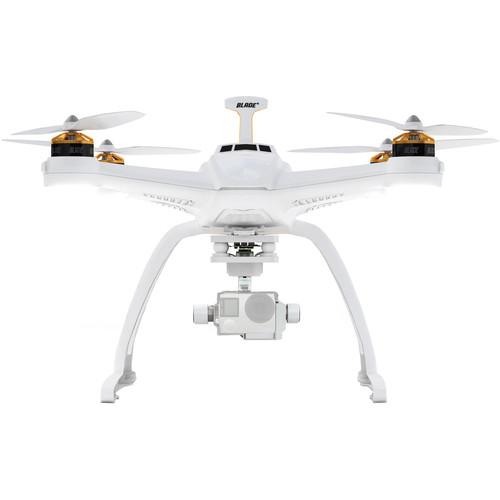

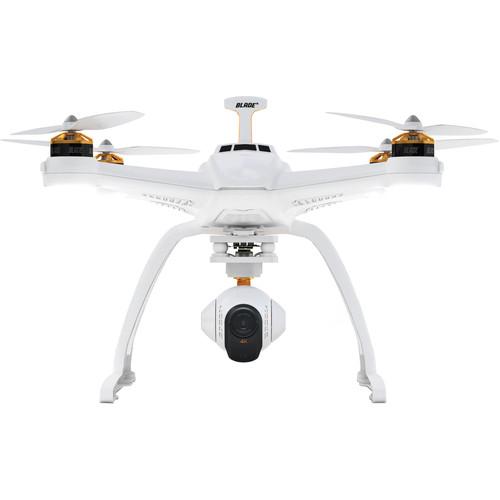

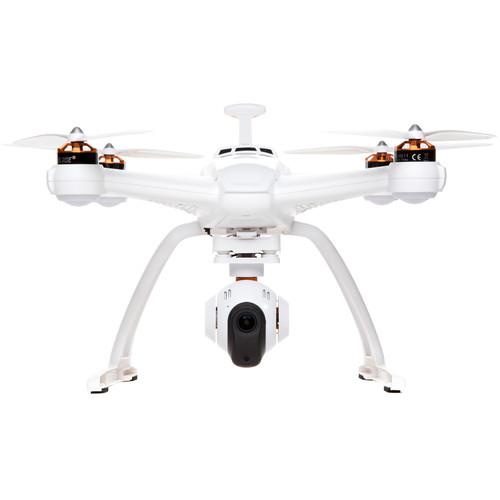

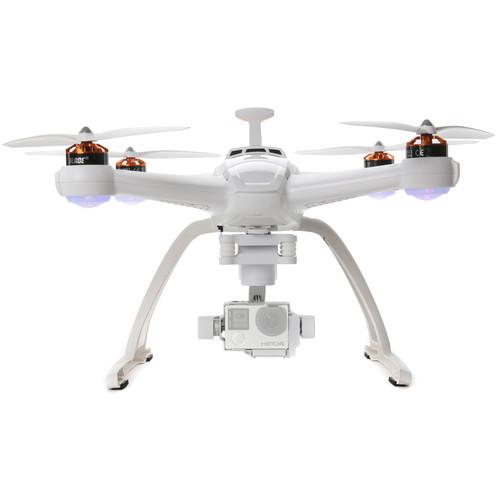

BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675
  • Manufacturer: BLADE
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones
  • Safety instructions
  • Startup and operation of the aerial imaging platforms & drones
  • Tips for setting up your BLADE
  • Settings and expert assistance
  • Contact BLADE service
  • Troubleshooting
  • Warranty information
  • Price: 900 USD
BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675 BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675 BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675 BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675 BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675
Click to enlarge image

We recommend checking out our discussion threads on the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675, which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones BLADE.



User manual for the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675

The user manual for the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

This is the Ready-to-Fly (RTF) version of the Chroma Camera Drone from Blade, which includes the ST-10+ transmitter/personal ground station combination. The ST-10+ enables control of the aircraft, monitoring of a live video feed, and can display telemetry data. It is powered by an embedded Android mobile device with 5.5" screen. A 400-sized X-configuration quad, the Chroma is design to appeal to a range of users, form hobby fliers to shooters looking to capture aerial angles. To this end, it incorporates the CGO3-GB, a 3-axis gimbal-stabilized able to capture 4K video, 1080p video at up to 120 fps, and shoots photos at 12 megapixels.

A GPS-based flight control system - the brains that control the aircraft - enables varying degrees of autopilot redundancy, with options to accommodate pilots of every skill level. This feature is centered around Blade's SAFE technology, which includes Smart, AP (Aerial Photography), Follow Me, and Tracking modes. Additional safety features include Return Home, which brings the aircraft back to the pilot at the press of a button, as well as adjustable flight boundaries to ensure the quadcopter stays within a specified range.

Also included in the bundle is a 5400mAh "cartridge -style" flight battery lasting up to 30 minutes along with a battery charger as well as an 8GB memory card for the camera.
If you own a BLADE aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675Download user manual for BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675
(PDF file, 8.63 MB)
Additional parameters of the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675:
Specifications
Performance
Flight Time Approximately 30 minutes
Flight Battery
Capacity 6300 mAh
Chemistry Lithium-polymer
Voltage 3S 11.1 VDC
Flight Control System
GPS GPS, GLONASS
Receiver
Frequency 2.4 GHz (control link)
Video Downlink
Frequency 5.8 GHz
Range Up to 1970' / 600 m line-of-sight
Transmitter
Specifications Model: ST-10+ Personal Ground Station

Frequency: Control Channels: 2.4 GHz
Video Receiver: 5.8 GHz
Channels: 10
Range: Control Signal: Up to 2624.7' / 400 m line-of-sight under optimal conditions

Flight Modes: Smart, Angle, Home Modes

Operating System: Android

Display: Size: 5.5"

Interface: Capacitive multi-touch

OSD: Flight systems telemetry data can be viewed on-screen

Feedback: Tactile (vibrating) and audible feedback
Camera
Specifications Model: CGO3-GB
Focus :Fixed
ResolutionVideo: 4K; 1080p at 120, 60, 50 or 48 fps
Resolution Photo: 12 MP
White Balance: Automatic
Audio: Audio recording via integrated microphone (turn on/off with app)
File Formats Photo: JPEG, DNG RAW
Recording Media: microSDHC/XC Class 10: 4 to 128 GB
Gimbal Control Angle Accuracy: ±0.02°
Video Transmitter Frequency: 5.8 GHz
Transmit Power: 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum) Range: Up to 984.3' / 300 m line-of-sight
Power Requirements: 7 to 14 VDC (powers from flight battery)
Storage Temperature:-4 to 140°F / -20 to 60°C
Operating Temperature: 32 to 122°F / 0 to 50°C
Dimensions: 4.5 x 5.3 x 2.9" / 115 x 135 x 74 mm
Weight: 6.5 oz / 185 g
Motors
Type 4 x 780 Kv brushless outrunner
Propellers
Diameter 10.2" / 260 mm
General
Configuration Quadcopter
Completion Level Ready-to-Fly
Dimensions Motor-to-Motor Distance: 15.7" / 400 mm
Height: 9.5" / 242 mm
Weight 45.9 oz / 1.3 kg
Packaging Info
Package Weight 11.05 lb
Box Dimensions (LxWxH) 18.9 x 15.0 x 10.6"
Blade Chroma Camera Drone: Quick Look
Chroma - Your First Flight
The user manual for the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BLADE users keep a unique electronic library for BLADE aerial imaging platforms & droness, where you can use our link to download the user manual for the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675.

The user manual lists all of the functions of the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BLADE service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675. User manuals are also available on the BLADE website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675

Post new comment to BLADE Chroma Camera Drone with CGO3-GB 4K Camera & BLH8675

Subject: Looking for manual(s)
Date: 04.09.2022 22:28:16Author: James Bullitt
I have the Reference Guide and Quickstart Guide. Looking for the Service Manual and any other manuals which will help me understand all the modes and features as well as identify parts for when replacements are needed.
Reply

Subject: Failed to take snapshot
Date: 10.12.2016 23:13:49Author: Anthony
Blade Chroma CG03 4K
I have tried to reset, reconfigure, disconnected, reconnected, you name I've tried it.
Video works fine, however I can not take photos.
When I depress the photo button, it seems to 'click' however the error message comes up 'failed to take snapshot' .
I have reformatted the SD card, which works fine for video recording. Perhaps it is a hardware fault..? I have searched many threads but have been unable to find a suitable reason or remedy.
Reply

Subject: Retrieving video
Date: 18.10.2016 08:43:03Author: Jack
How do I retrieve my video and pics from the chroma blade w/ cgo3
Reply

Subject: change the definition record
Date: 27.04.2016 05:01:24Author: Normand
Hello,

how I can change (on the station ST-10) the capture 4k video recording to choose the 1080p or 720p capture. Because I want to transfer the camera's SD memory card directly the drone into my tablet samsung to see recording ? tank you
Reply
