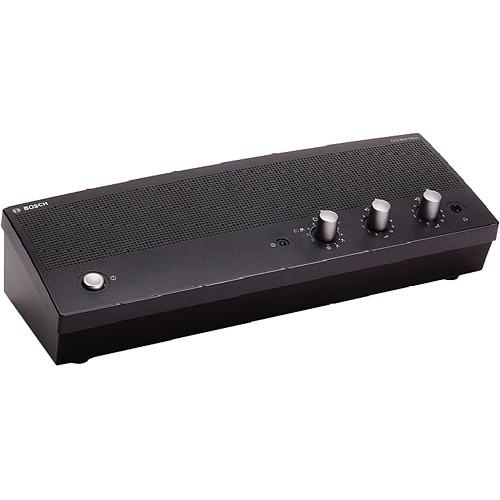

The Bosch CCS-CU Control Unit is the central power and control station for all CCS 900 Ultro Conference System contributor units, such as the chairman and delegate units. The control unit will supply power for up to 50 delegate / chairman units, and provide control for up to 150. The unit features a built in speaker and automated, programmable control over contributor units without the need for an operator. Plenty of connections allow for interfacing within paging systems, amplifier systems, recording devices and more. The unit is feature rich, however its control section is straightforward and intuitive to operate in any conference setting.
If you own a Bosch audio conferencing and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Bosch CCS-CU Control Unit for CCS 900 Ultro F.01U.080.442 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch CCS-CU Control Unit for CCS 900 Ultro F.01U.080.442:
Specifications
Connections
Top • 1x 0.14" (3.5mm) stereo headphone socketBack • 1x AC input • 2x 7-pole circular female connectors, trunk in/out loop through interconnection • 1x 3-pole female XLR connector, microphone input (can be used as line input by included 50dB attenuator)• 1 x Cinch connector pair, line input/output • 1 x Cinch connector pair, telephone input/output • 1 x Cinch connector pair, insertion input/output • 2 x Cinch connector pairs (R/L channel), external recorder input/output• USB interface (CCS-CURD)
Power Supply
Mains voltage: 100 to 240 VAC ± 10% Current consumption: maximum 0.9A (100 VAC) to 0.3 A (240 VAC)DC supply to contribution units: 24V ± 1V (current limited)
Volume
mute (50dB att.) + 10 steps of 1.9dB
Limiter
10dB above nominal level loudspeaker / headphone
Gain
Gain reduction due to number of open microphones (NOM): ÷ NOM ± 1 dB
Total Harmonic Distortion
Nominal input (85 dB SPL): < 0.5 Max. input (110 dB SPL): < 0.5
Sample Rate
Recording: 32kHz Playback: 32, 44.1, 48kHz
Bit Rate
Recording: 64, 96, 128, 192, 256 KBit/sec Playback: any bitrate
Mount
Tabletop (portable or fixed) 19-inch rack flush mounting
Material
Top: polymer Bottom: painted metal
Color
Charcoal and Black
Dimensions (HxWxD)
3.4 x 14.2 x 5.6" (84 x 361 x 143mm) Height of feet: 0.22" (5.5mm)
