User manual for the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450

The user manual for the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Matrix Solutions - Keyboards & Controllers.

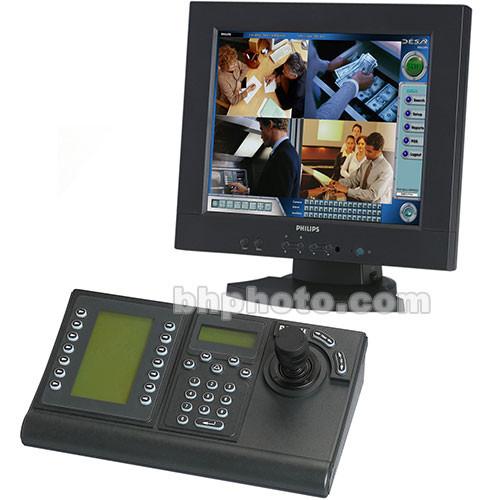

The Bosch KBD-Universal is a full featured keyboard designed for use with all Allegiant switchers, Divar digital recorders and System4 multiplexers. This keyboard has the advantage over the KBD-Digital model keyboard of being able to control an Allegiant switcher plus a Divar recorder or System4 multiplexer at the same time, eliminating the need for multiple keyboards. The keyboard connects to a system using the supplied 10 ft. cable carrying both control signals and power. Optional keyboard extension kits are available to extend distances up to 100 ft. (LTC 8558) or up to 5000 ft. (LTC8557). The keyboard is built of a rugged splash-proof design and incorporates various features for ease of setup and operation. These include Soft Keys, backlit-keys with an easy-to-read display, and a user-friendly OSD offering programming in several languages. An optional rack kit is available for mounting in a standard 19" rack.
If you own a Bosch keyboards & controllers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450:
Signal Connectors Allegiant Connector: RJ-11 x1 (data and power)
Mux/DVR Connector: RJ-11 x1 (data and power)
Console Connector: 9-Pin Male D-sub
Protocols Allegiant Signal

RS-485: 2-wire, 9600 Baud,
8 bits, no parity, 1 stop bit
RS-232: 3-wire, 9600 Baud,
8 bits, no parity, 1 stop bit

Mux/DVR Signal

RS-485: 2-wire, 19,200 Baud,
8 bits, no parity, 1 stop bit

Terminal Mode Signal

RS-232: 3 wire, 9600 Baud,
8 bits, no parity, 1 stop bit

Console Signal

RS-232 RTS/CTS handshaking,
19,200/57600 Baud, 8 bits, no parity,
1 stop bit
Language Options English, Spanish, French, German, Dutch, Italian, Polish and Portuguese.
Operating Temperature 32 - 122°F (-0 ~ +50°C)
Power Requirements 12-15 VAC or VDC (supplied by main system)
Dimensions (WxHxD) 12.9 x 2.9 x 7.5" (327 x 75 x 190mm)
Weight 2.6 lb (1.1 kg)
Packaging Info
Package Weight 5.25 lb
Box Dimensions (LxWxH) 16.5 x 13.8 x 8.9"
The user manual for the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450 can be downloaded in .pdf format if it did not come with your new keyboards & controllers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch keyboards & controllerss, where you can use our link to download the user manual for the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450.

The user manual lists all of the functions of the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450, all the basic and advanced features and tells you how to use the keyboards & controllers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch KBD-Universal IntuiKey Series Digital 4.998.800.450. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Matrix Solutions - Keyboards & Controllers.
