User manual for the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537

The user manual for the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Signal Extenders.

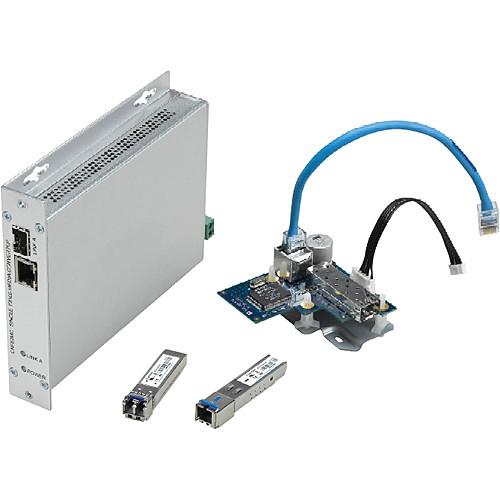

The Bosch SFP-2 Small Form-factor Pluggable Optical Interface is an interchangeable module that provides an integrated fiber optic solution. It is designed to transmit 10/100 Mbps ethernet signals over fiber optic cable. When used with VG4-SFPSCKT or CNFE2MC/IN media converters, the interface enables fast ethernet optical interface.
If you own a Bosch signal extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537:
Specifications
    Interface Data Interface: Ethernet
    Data Rate 10/100 Mbps
    IEEE 802.3 Compliant
    Type MMF
    Connector Duplex LC
    Wavelength 1310/1310 nm
    Distance 1.2 miles (2 km)
    Compatibility 60/125 μm MMF. For 50/125 μm fiber, subtract 4 dB from the specified optical budget value. Must meet or exceed fiber standard ITU-T G.651.

    Specified transmission distances are limited to the optical loss of the fiber and any additional loss introduced by connectors, splices, and patch panels. The modules are designed to operate over the entire optical loss budget range, so they do not require a minimum loss in order to operate.
    Dimensions (LxWxH) 2.2 x 0.5 x 0.3" (56 x 14 x 9 mm)
    Weight 0.05 lb (0.23 kg)
    Packaging Info
    Package Weight 0.03 lb
    Box Dimensions (LxWxH) 2.8 x 0.4 x 0.2"
    The user manual for the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537 can be downloaded in .pdf format if it did not come with your new signal extenders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch signal extenderss, where you can use our link to download the user manual for the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537.

    The user manual lists all of the functions of the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537, all the basic and advanced features and tells you how to use the signal extenders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch SFP-2 Small Form-factor Pluggable Optical F.01U.136.537. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Video Transmission - Signal Extenders.
