User manual Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987

Operating instructions and pdf manual for use - Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987 User manual, User manual Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987, Bosch, VDC-455V03-20, FlexiDomeXT, Vandal, Res


User manual for Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

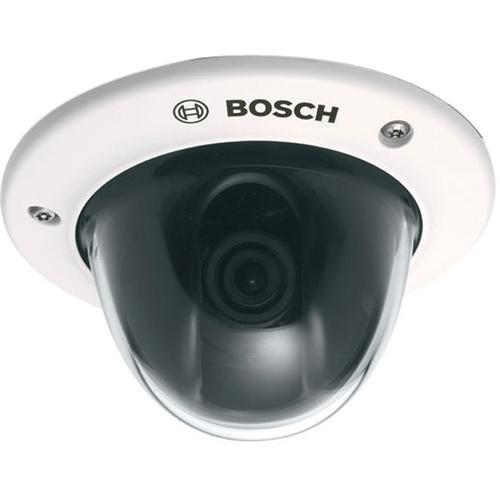

Bosch VDC-455V03-20 FlexiDomeXT  Vandal Resistant F.01U.008.987
  • Manufacturer: Bosch
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your Bosch
  • Settings and expert assistance
  • Contact Bosch service
  • Troubleshooting
  • Warranty information
  • Price: 243 USD
We recommend checking out our discussion threads on the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987, which address similar problems with connecting and setting up Wired Analog & HD Cameras Bosch.



User manual for the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987

The user manual for the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

A good image quality and a low light sensitivity are two of the most important features to have in an effective security camera. With its 540 lines of resolution and NightSense technology, the Bosch VDC-455V03-20 perfectly adheres to those principles. You'll also appreciate the way it neatly installs recessed inside a hard or drop ceiling. Also of great importance is its rugged exterior and built-in heater, so you can place it in an outdoor location, safe from weather and vandalism.
If you own a Bosch wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987:
Specifications
    Signal System NTSC
    Image Sensor 1/3" Color CCD
    Number of Pixels Not Specified by Manufacturer
    Resolution 540 Lines
    Lens Focal Length: 2.6-6mm
    Aperture: F1.4
    Angle of View: 98.5 x 75.3° Wide / 48.1 x 36.2° Tele (H x V)
    Focus: Manual
    Iris Operation Automatic iris control
    Minimum Illumination Color

    30 IRE: 0.58 Lux
    50 IRE: 1.3 Lux
    100 IRE: 5.1 Lux

    NightSense

    30 IRE: 0.23 Lux
    50 IRE: 0.5 Lux
    100 IRE: 2.0 Lux
    Pan & Tilt 360° Pan, 90° tilt, +/-90° azimuth
    Signal-to-Noise Ratio >50dB
    Controls AGC: 20dB max
    Auto Black: On/Off
    Electronic Shutter: Flickerless, On/Off
    NightSense: Auto, Forced, Off
    Sharpness Correction: Horizontal & Vertical, Symmetrical
    BLC: Center Window Weighing, Off
    White Balance: Auto sensing, Hold
    Microphone No
    IR Illumination No
    Video Output BNC
    Audio Output N/A
    Motion Detection No
    Sync System Internal or Line Lock
    Control Port N/A
    Construction Top: Cast aluminum
    Bubble: Polycarbonate, clear with UV blocking antiscratch coating
    Trim Ring: Aluminum
    Power Requirements 12VDC or 24VAC
    Power Consumption 4W (6W heater on)
    Operating Temperature -58 ~ 122°F (-50 ~ +50°C)
    Diameter and Height 6.2 x 3.4" (158 x 85mm)
    Weight 1.6 lbs (740g)
    Packaging Info
    Package Weight 2.55 lb
    Box Dimensions (LxWxH) 9.1 x 8.4 x 7.7"
    The user manual for the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987 can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch wired analog & hd camerass, where you can use our link to download the user manual for the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987.

    The user manual lists all of the functions of the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch VDC-455V03-20 FlexiDomeXT Vandal Resistant F.01U.008.987. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
