User manual Brother HL-3140CW Wireless Color Laser Printer HL-3140CW

Operating instructions and pdf manual for use - Brother HL-3140CW Wireless Color Laser Printer HL-3140CW User manual, User manual Brother HL-3140CW Wireless Color Laser Printer HL-3140CW, Brother, HL-3140CW, Wireless, Color, Laser, Printer, HL-3140

User manual for Brother HL-3140CW Wireless Color Laser Printer HL-3140CW

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Brother HL-3140CW Wireless Color Laser Printer HL-3140CW
  • Manufacturer: Brother
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
  • Safety instructions
  • Startup and operation of the laser printers
  • Tips for setting up your Brother
  • Settings and expert assistance
  • Contact Brother service
  • Troubleshooting
  • Warranty information
  • Price: 217 USD
We recommend checking out our discussion threads on the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW, which address similar problems with connecting and setting up Laser Printers Brother.


User manual for the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW

The user manual for the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

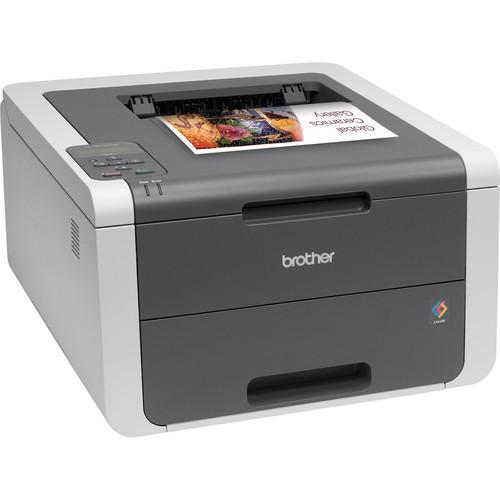

The HL-3140CW Wireless Color Laser Printer from Brother features a 600 x 2400 dpi and outputs black-and-white and color documents at up to 19 ppm. The printer's built-in 64 MB of memory means that print jobs are stored in the printer itself, not on your computer so they don't slow down your workflow.
If you own a Brother laser printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Brother HL-3140CW Wireless Color Laser Printer HL-3140CWDownload user manual for Brother HL-3140CW Wireless Color Laser Printer HL-3140CW
(PDF file, 2.29 MB)
Additional parameters of the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW:
Specifications
    Performance
    Printing Technology Digital color LED technology
    Maximum Resolution 600 x 2400 dpi
    Print Speed 19 ppm black & color
    First Print Out Speed As fast as 16 seconds (black & color)
    Compatible Toner Cartridges TN221BK Standard Yield Black Toner
    TN221C Standard Yield Cyan Toner
    TN221M Standard Yield Magenta Toner
    TN221Y Standard Yield Yellow Toner
    TN225C High Yield Cyan Toner
    TN225M High Yield Magenta Toner
    TN225Y High Yield Yellow Toner
    DR221CL Drum Unit Set
    Page Yield TN221BK: 2500 pages
    TN221C: 1400 pages
    TN221M: 1400 pages
    TN221Y: 1400 pages
    TN225C: 2200 pages
    TN225M: 2200 pages
    TN225Y: 2200 pages
    DR221CL: 15,000 pages
    Memory 64 MB
    Processor 333 MHz NEC VR5500
    Duty Cycle Maximum: Up to 30,000 pages/month
    Recommended: 300 to 1500 pages/month
    Print Features Secure Printing, Secure Function Lock, Toner Save Mode
    Paper Handling
    Paper Types Input Tray: Plain, Thin, Recycled
    Manual Feed: Plain, Thin, Thick, Thicker, Recycled, Bond, Labels, Envelopes, Env. Thin, Env. Thick, Glossy Paper
    Paper Sizes Input Tray: Letter, Legal, Folio, Executive, A4, A5, A6, B5, B6
    Manual Feed: Letter, Legal, Executive, A4, A5, A6, B5, B6, Envelopes
    Manual Feed - Custom: 3.0 x 4.57 to 8.5 x 14.0" (7.62 x 11.61 to 21.59 x 35.56 cm)
    Media Weight Input Tray: 16 to 28 lb (60 to 105 g/m2)
    Manual Feed: 16 to 43 lb (60 to 163 g/m2)
    Paper Capacity Input Tray: 250 sheets
    Manual Feed: 1 sheet
    Output Tray: 100 sheets
    Connectivity
    Interface Hi-Speed USB 2.0
    Wireless
    Network Standards 802.11b/g/n
    Network Security WEP 64/128, WPA-PSK (TKIP/AES), WPA2-PSK (AES), 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
    Wireless Configuration 1-push wireless configuration via AOSS or Wi-Fi Protected Setup capable routers
    Network Protocols IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/ v3, ICMP, Web Services (Print), CIFS client, SNTP Client
    IPv6: NDP, RA, DNS resolver, mDNS, LLMNR responder,LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS,FTP Server,TELNET Server, HTTP/HTTPS server,TFTP client and server, SMTP Client, SNMPv1/v2c/v3, ICMPv6,Web Services (Print), CIFS Client, SNTP Client
    OS Compatibility Windows: XP Home, XP Pro, XP Pro x64, Vista, Windows 7, Windows 8, Server 2003, Server 2003 x64, Server 2008, Server 2008 R2, Server 2012
    Mac: OS X 10.6.8, 10.7.x, 10.8.x
    Linux
    Windows System Requirements 32 or 64-bit processor, 80 MB disk space
    Mac System Requirements Intel processor, 80 MB disk space
    Mobile Printing Features AirPrint, Google Cloud Print, Brother iPrint&Scan, Cortado Workplace, Wi-Fi Direct
    Printer Emulations GDI
    General Attributes
    Control Panel 1-line 16-character LCD
    Power Requirements 110-120 VAC, 50/60 Hz
    Power Consumption Printing: 660 W
    Ready: 75 W
    Deep Sleep: < 1.0 W
    Acoustic Noise Sound Pressure - Printing: 53 dB
    Sound Pressure - Ready: 33 dB
    Sound Power - Printing: 6.3 B(A)
    Sound Power - Ready: 4.15 B(A)
    Certifications Energy Star
    Temperature / Humidity Operating Temperature: 50 to 90.5°F (10 to 32.5°C)
    Storage Temperature: 32 to 104°F (0 to 40°C)
    Operating Humidity: 20 to 80%
    Storage Humidity: 10 to 90%
    Dimensions 16.1 x 18.3 x 9.4" (40.9 x 46.5 x 23.9 cm)
    Weight 37.5 lb (17.0 kg)
    Packaging Info
    Package Weight 42.9 lb
    Box Dimensions (LxWxH) 23.5 x 20.5 x 14.5"
    The user manual for the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW can be downloaded in .pdf format if it did not come with your new laser printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Brother users keep a unique electronic library for Brother laser printerss, where you can use our link to download the user manual for the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW.

    The user manual lists all of the functions of the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW, all the basic and advanced features and tells you how to use the laser printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Brother service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Brother HL-3140CW Wireless Color Laser Printer HL-3140CW. User manuals are also available on the Brother website under Computers & Solutions - Printers & Accessories - Laser Printers.
