User manual Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN

Operating instructions and pdf manual for use - Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN User manual, User manual Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN, Brother, PT-9800PCN, Desktop, Bar, Code, Network,


User manual for Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

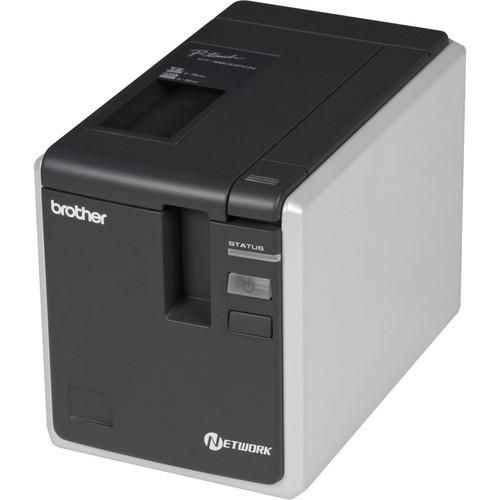

Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN
  • Manufacturer: Brother
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Label Printer
  • Safety instructions
  • Startup and operation of the label printer
  • Tips for setting up your Brother
  • Settings and expert assistance
  • Contact Brother service
  • Troubleshooting
  • Warranty information
  • Price: 393 USD
We recommend checking out our discussion threads on the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN, which address similar problems with connecting and setting up Label Printer Brother.



User manual for the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN

The user manual for the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Label Printer.

Refine your workflow with the Brother PT-9800PCN Desktop Bar Code Network Printer. This compact little guy meets the daily challenges of your business needs with an impressive mixture of features. Most notably, the PT-9800PCN provides the added flexibility of an Ethernet connection to take full advantage of network options. The printer is Windows OS compatible as well, and comes packaged with Brother's PT-Editor print application design software, giving you more choices when it comes to label making.
If you own a Brother label printer and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCNDownload user manual for Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN
(PDF file, 13.71 MB)
Additional parameters of the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN:
Hardware Features
Model Type Industrial desktop network label printer
Tape Family HG, TZ
Tape Sizes 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm
Tape Length 8m / 26.25'
Tape Technology Laminated thermal transfer
Tape Types High grade, standard adhesive, extra-strength adhesive, flexible ID, tamper-evident, non-laminated, iron-on fabric, acid free
LCD N/A
Print Resolution 360 x 720 dpi (14 x 28 dots/mm)
Print Speed HG tape: 3.15 ips (80 mm/sec)
TZ tape: 0.78 ips (20 mm/sec)
Keyboard N/A
Operation Modes PC connected (Dumb printer, template), connected to host peripheral (USB host and serial interface)
Cutter Automatic (built-in) cutter: full-cut mode and crack and peel mode
Batteries N/A
AC Adapter AD-9100ES
Included
Interface PC connected (dumb printer, template), connected to host peripheral (host USB and serial interface)
Printer Emulations Raster, ESC P, Template
Control Panel On/off, feed/cut
Power Switch Mechanical
Number of Fonts 3

ESC P: Helsinki, Letter Gothic Template
Bitmap and outline: Helsinki, Brussels, Letter Gothic Template

Font Styles ESC P: bold, italic
Underline template: bold, italic, vertical, outline, shadow, outline/shadow
Point Sizes ESC P: 21, 28, 44, 56, 88, 120 dots
Template (bitmap): 21, 28 dots
Template (outline): 35-380 dots (20 sizes)
Number of Styles 6
Database File Compatibility .csv, .txt, .mdb, .xls and Microsoft SQL Server
Maximum Print Height 1.07" / 27.1mm
Multi-Block Yes
Label Length Setting 0.17-39.37" / 4.32-999.99mm
Auto Incrementation Alpha numeric
Horizontal Alignment Left, center, right justification
Vertical Printing Yes
Mirror Printing Yes
Rotate Printing Yes
Additional Functions Snapper function
Download data to unit
Text Insert Yes
Multi-Copy Print Up to 5,000 copies
Memory 7MB
99 template file memory for transferred data
Date/Time Stamp Yes
Auto Templates Yes
Barcoding Yes

Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS)
2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode

PC Connectivity Window: USB 1.1 or 2.0, serial (RS-232C), Ethernet (10/100 Base-TX)

Mac: USB 1.1 or 2.0, Ethernet (10/100 Base-TX)

System Requirements Windows 2000 Professional, XP, 7, Vista, Windows Server 2003/2008
50 MB available hard disk space
512 MB minimum RAM memory

Mac OS 10.3.9 to 10.7.x
50 MB available hard disk space
128 MB minimum RAM memory

Power Requirements 120 VAC, 60Hz
Dimensions 4.6 x 7.6 x 5.5" / 116 x 193 x 140mm
Weight 3.5 lb / 1.6kg
Packaging Info
Package Weight 6.55 lb
Box Dimensions (LxWxH) 11.1 x 9.9 x 9.0"
The user manual for the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN can be downloaded in .pdf format if it did not come with your new label printer, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Brother users keep a unique electronic library for Brother label printers, where you can use our link to download the user manual for the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN.

The user manual lists all of the functions of the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN, all the basic and advanced features and tells you how to use the label printer. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Brother service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Brother PT-9800PCN Desktop Bar Code Network Printer PT9800PCN. User manuals are also available on the Brother website under Computers & Solutions - Printers & Accessories - Label Printer.
