User manual C2G DisplayPort Male to DVI-D Female Adapter Converter 54321

Operating instructions and pdf manual for use - C2G DisplayPort Male to DVI-D Female Adapter Converter 54321 User manual, User manual C2G DisplayPort Male to DVI-D Female Adapter Converter 54321, C2G, DisplayPort, Male, to, DVI-D, Female, Adapter,


User manual for C2G DisplayPort Male to DVI-D Female Adapter Converter 54321

C2G DisplayPort Male to DVI-D Female Adapter Converter 54321
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitor & Display Accessories - Computer Monitor Adapters
  • Safety instructions
  • Startup and operation of the computer monitor adapters
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 15 USD
We recommend checking out our discussion threads on the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321, which address similar problems with connecting and setting up Computer Monitor Adapters C2G.



User manual for the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321

The user manual for the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321 provides necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - Computer Monitor Adapters.

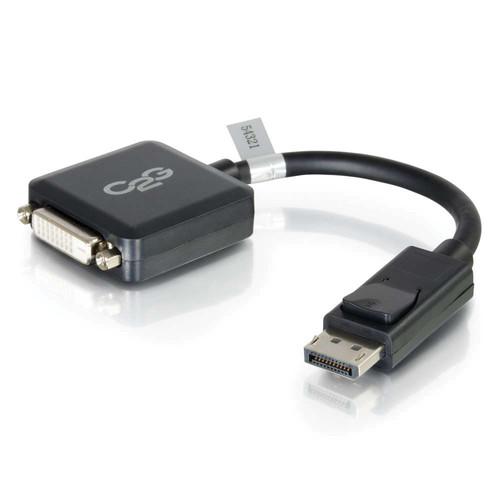

The black C2G DisplayPort Male to DVI-D Female Adapter Converter is an 8" adapter converter for adapting the DisplayPort output of a laptop so that it may be connected to a computer monitor which accepts a DVI-D input. This adapter carries a digital video signal, supports up to a 1920x1200 resolution, and meets the requirements of high performance applications.
If you own a C2G computer monitor adapters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321:
Electrical
Voltage Rating 30 V
Conductor Resistance @ 20°C maximum
Insulation Resistance 10 M Ω/km
Time Delay: 5.2 ns/m maximum
Attenuation 5.02 dB @ 100-450 MHz, 7.69 dB @ 1 GHz
12.595 dB @ 2 GHz, 17.495 dB @ 3 GHz
22.395 dB @ 4 GHz, 27.295 dB @ 5 GHz
32.195 dB @ 6 GHz, 37.095 dB @ 7 GHz
Physical
Operating Temperature 32-122°F (0-50°C)
Storage Temperature -13-158°F (-25-70°C)
Approvals CE
Conductor 2 Conductors, 5 Pair:
Conductor: 30 AWG (7/0.1 TC)
Insulation: FM-PE, ID: 0.8 ± 0.05 mm
Color: white/brown, white/red, white/orange, white/green, white/blue
Drain: 30 AWG (7/0.1 TC), HD-PE ID: 0.56 ± 0.05 mm
Shield: AL-mylar wrap
Coverage: 100%

5 Conductors:
Conductor: 30 AWG (7/0.1 TC)
Insulation: HD-PE, ID: 0.56 ± 0.05 mm
Color: red/orange/yellow/green/white
General
Connector 1 DisplayPort male
Connector 2 DVI-D female
Jacket PVC
Shield AL-mylar, coverage: 100%, braid: 16/9/0.12
Drain Wire 30 AWG (7/0.10 BC)
Outer Diameter 6.5 ± 0.2 mm
Length 8" (20.32 cm)
Weight 0.12 lb (0.05 kg)
Packaging Info
Package Weight 0.1 lb
Box Dimensions (LxWxH) 10.9 x 6.0 x 0.8"
The user manual for the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321 can be downloaded in .pdf format if it did not come with your new computer monitor adapters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G computer monitor adapterss, where you can use our link to download the user manual for the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321.

The user manual lists all of the functions of the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321, all the basic and advanced features and tells you how to use the computer monitor adapters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G DisplayPort Male to DVI-D Female Adapter Converter 54321. User manuals are also available on the C2G website under Computers & Solutions - Monitor & Display Accessories - Computer Monitor Adapters.
