User manual C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328

Operating instructions and pdf manual for use - C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328 User manual, User manual C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328, C2G, DisplayPort, Male, to, Single, Link, DVI-D, Mal


User manual for C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328

C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitor & Display Accessories - DisplayPort to DVI/VGA Cables
  • Safety instructions
  • Startup and operation of the displayport to dvi/vga cables
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 25 USD

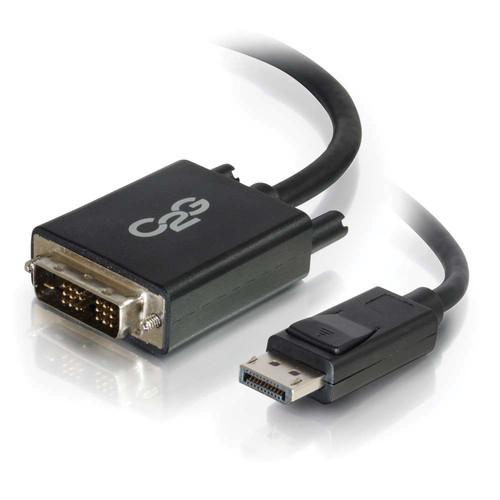

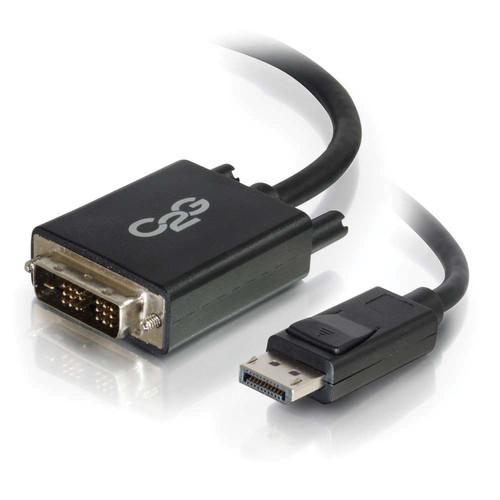

C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328 C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328 C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328
Click to enlarge image

We recommend checking out our discussion threads on the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328, which address similar problems with connecting and setting up DisplayPort to DVI/VGA Cables C2G.



User manual for the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328

The user manual for the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328 provides necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - DisplayPort to DVI/VGA Cables.

The black C2G DisplayPort Male to Single Link DVI-D Male Adapter Cable is 3' long and offers a useful solution for connecting the DisplayPort output of a standard or laptop computer to the DVI input of a computer monitor. This cable carries a digital video signal, and supports up to a 1920 x 1200 resolution.
If you own a C2G displayport to dvi/vga cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328:
Specifications
    Electrical Specifications
    Voltage Rating 30 V
    Conductor Resistance @ 68°F (20°C) max
    Insulation Resistance 10 MΩ/km
    Time Delay 5.2 ns/m (max)
    Attenuation 5.02 dB @ 100-450 MHz 7.69 dB @ 1 GHz
    12.595 dB @ 2 GHz 17.495 dB @ 3 GHz
    22.395 dB @ 4 GHz 27.295 dB @ 5 GHz
    32.195 dB @ 6 GHz 37.095 dB @ 7 GHz
    Physical Specifications
    Operating Temperature 32° to 122°F (0° to 50°C)
    Storage Temperature 13° to 158°F (-25° to 70°C)
    Approvals CE
    Conductor (2 Conductors, 5 Pair)
    Conductor 30 AWG (7/0.1TC)
    Insulation FM-PE, ID:0.8±0.05 mm
    Color White/Brown, White/Red, White/Orange, White/Green White/Blue
    Drain 30 AWG (7/0.1 TC), HD-PE ID:0.56±0.05
    Shield AL-Mylar Wrap , Coverage-100%
    Conductor (5 Conductors)
    Conductor 30 AWG (7/0.1 TC)
    Insulation HD-PE, ID:0.56±0.05 mm
    Color Red/Orange/Yellow/Green/ White
    Overall Cable
    Jacket PVC
    Shield AL-Mylar-Coverage 100% , Braid-16/9/0.12
    Drain 2:30 AWG (7/0.08 BC)
    OD 6.5±0.2
    Dimensions & Weight
    Length 3.00' (0.91 m)
    Weight 0.25 lb (113.40 g)
    Packaging Info
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 6.0 x 4.6 x 1.0"
    The user manual for the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328 can be downloaded in .pdf format if it did not come with your new displayport to dvi/vga cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G displayport to dvi/vga cabless, where you can use our link to download the user manual for the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328.

    The user manual lists all of the functions of the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328, all the basic and advanced features and tells you how to use the displayport to dvi/vga cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G DisplayPort Male to Single Link DVI-D Male Adapter 54328. User manuals are also available on the C2G website under Computers & Solutions - Monitor & Display Accessories - DisplayPort to DVI/VGA Cables.
