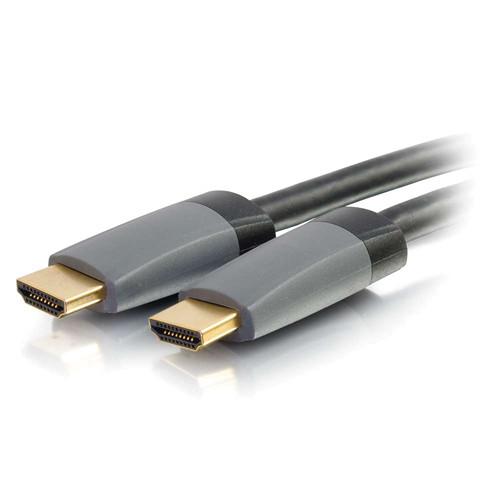

C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524 C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524 C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524
Click to enlarge image

We recommend checking out our discussion threads on the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524, which address similar problems with connecting and setting up HDMI Cables C2G.



User manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524

The user manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524 provides necessary instructions for the proper use of the product TVs & Entertainment - Cables & Accessories - HDMI Cables.

The black C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male HDMI Cable with Ethernet is a 16.4' cable that connects multimedia source devices in home theater, desktop or commercial audio video applications requiring high speed HDMI features. The CL2 rated cable jacket is designed to meet the requirements for in-wall installations. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection.

This cable supports Ultra HD, 4K at 50/60 Hz (2160p), up to 32 audio channels and wide angle theatrical 21:9 video aspect ratio.

Note: both the source device and display must support an HDMI feature in order to pass that feature through this cable.
If you own a C2G hdmi cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42524:
General
Resolution Supported Up to 4K @ 50/60 Hz (2160p)
Support 3D video, Deep Color and x.v. Color
Dolby True HD, DTS-HD Master Audio and up to 32 audio channels
1536 kHz audio sample frequency
21:9 video aspect ratio
Connector Plating Gold
Connector 1 19-pin HDMI male
Connector 2 19-pin HDMI male
Length 16.4' (5 m)
Dimensions 0.51 x 0.82 x 1.5" (13 x 21 x 39 mm)
Weight 1.17 lb (0.53 kg)
Electrical
Bandwidth 10.2 Gbps
Nominal Impedance With Tolerance: 100 Ω
Nominal Capacitance 95.2 pF/m
Dielectric Strength 2.1
Insulation Resistance 10 MΩ
Nominal Attenuation 300 KHz - 825 MHz: < 8 dB
825 MHz - 2.475 GHz: < 21 dB
2.457-4.125 GHz: < 30 dB
Physical
Bend Radius 2.87" (73 mm)
Temperature Rating 176°F (80°C)
Operating Temperature -4-176°F (-20-80°C)
Storage Temperature -4-176°F (-20-80°C)
Approvals CMG, CE
Construction
Drain Wire 28 AWG (7/0.127) bare copper
Foil Shield Aluminum foil and Mylar 25% minimum overlapped
Braided Shield 16/10/0.12 CCAM 70% coverage
Jacket CMG (PVC, UL/CL2)
Outer Diameter 0.28 +/- 0.007" (7.3 +/- 0.2 mm)
Inner Diameter Conductor 1: 0.04 +/- 0.002" (1.05 +/- 0.05 mm)
Conductor 2: 0.02 +/- 0.002" (0.7 +/- 0.05 mm)
Insulation Conductor 1: foamed PE
Conductor 2: HDPE
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 8.6 x 7.3 x 1.8"
