User manual C2G Mini Displayport Extension Cable, Male to Female 54413

Operating instructions and pdf manual for use - C2G Mini Displayport Extension Cable, Male to Female 54413 User manual, User manual C2G Mini Displayport Extension Cable, Male to Female 54413, C2G, Mini, Displayport, Extension, Cable, Male, to, Fema


User manual for C2G Mini Displayport Extension Cable, Male to Female 54413

C2G Mini Displayport Extension Cable, Male to Female 54413
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables
  • Safety instructions
  • Startup and operation of the displayport cables
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 17 USD

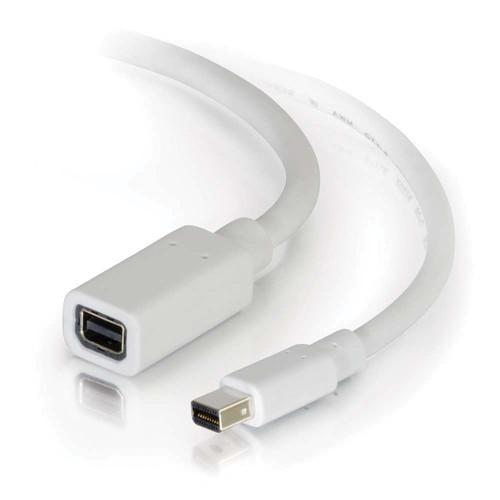

C2G Mini Displayport Extension Cable, Male to Female 54413 C2G Mini Displayport Extension Cable, Male to Female 54413 C2G Mini Displayport Extension Cable, Male to Female 54413
Click to enlarge image

We recommend checking out our discussion threads on the C2G Mini Displayport Extension Cable, Male to Female 54413, which address similar problems with connecting and setting up DisplayPort Cables C2G.



User manual for the C2G Mini Displayport Extension Cable, Male to Female 54413

The user manual for the C2G Mini Displayport Extension Cable, Male to Female 54413 provides necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables.

The white C2G Mini Displayport Male to Female Extension Cable, adds 3' length to an existing DisplayPort cable or extends the fixed Mini DisplayPort cable of a computer monitor. This cable carries a digital audio/video signal and is built to DisplayPort 1.2 standards.
If you own a C2G displayport cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G Mini Displayport Extension Cable, Male to Female 54413 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G Mini Displayport Extension Cable, Male to Female 54413:
Specifications
    Electrical Specifications
    Voltage Rating 30 V
    Conductor Resistance @ 68°F (20°C) max
    Insulation Resistance 10 MΩ/km
    Time Delay 5.2 ns/m (max)
    Attenuation 5.02 dB @ 100-450 MHz, 7.69 dB @ 1 GHz
    12.595 dB @ 2 GHz, 17.495 dB @ 3 GHz
    22.395 dB @ 4 GHz, 27.295 dB @ 5 GHz
    32.195 dB @ 6 GHz, 37.095 dB @ 7 GHz
    Physical Specifications
    Minimum Bend Radius 2.05" (52 mm)
    Approvals CE
    Conductor (2 Conductors, 5 Pair)
    Conductor 32 AWG (7/0.08TC)
    Insulation FM-PE, ID:0.62±0.05 mm
    Color White/Black, White/Brown, White/Red, White/Green White/Blue
    Drain 32AWG (7/0.08 TC)
    Shield AL-Foil Wrap, Transparent Wrap
    Conductor (5 Conductors)
    Conductor 32 AWG (7/0.08 TC)
    Insulation PP, ID:ø0.5±0.05 mm
    Color Red/Blue/Purple/White/Gray
    Overall Cable
    Jacket PVC
    Shield AL-Foil Wrap, Braid, 85% Min Coverage
    Drain 2:30 AWG (7/0.10 BC)
    OD 5.2±0.15
    General
    Length 3' (0.91 m)
    Weight 0.10 lb (45.36 g)
    Packaging Info
    Package Weight 0.1 lb
    Box Dimensions (LxWxH) 7.8 x 5.3 x 0.5"
