User manual CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000

Operating instructions and pdf manual for use - CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000 User manual, User manual CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000, CAD, GXL3000, Multi-Pattern, Condenser, Microphone, GXL3000,


User manual for CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

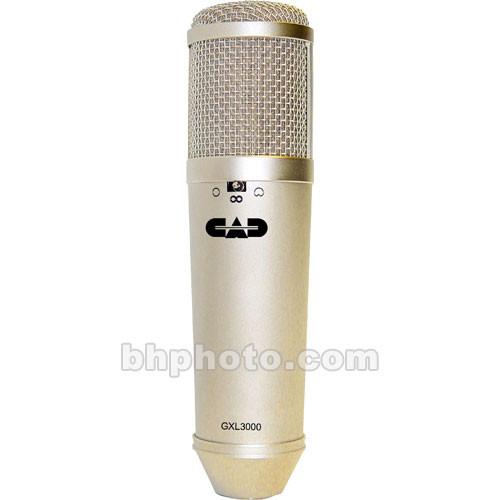

CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000
  • Manufacturer: CAD
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Large Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the large diaphragm condenser
  • Tips for setting up your CAD
  • Settings and expert assistance
  • Contact CAD service
  • Troubleshooting
  • Warranty information
  • Price: 149 USD
We recommend checking out our discussion threads on the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000, which address similar problems with connecting and setting up Large Diaphragm Condenser CAD.



User manual for the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000

The user manual for the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000 provides necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

The GXL3000 Multi-Pattern Condenser Microphone from CAD is designed for capturing vocals and general instruments in project and professional studio recording applications. The microphone's diaphragm provides cardioid, omni-directional, and figure 8 polar patterns. This multi-pattern design provides flexibility for capturing audio in a wide range of scenarios. The cardioid pattern rejects off-axis audio and noise, the omni-directional pattern provides a generous pick up area at the front of the capsule, and the figure-8 pattern provides a uniform response at both sides of the diaphragm. High sensitivity and wide, linear frequency response make the GXL3000 a viable solution for most applications, including vocals, guitar, and percussion. The package also contains an elastic shock mount and a protective pouch. 48V of phantom power are required for operation.
If you own a CAD large diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000:
Transducer Condenser
Polar Pattern Cardioid, Figure 8, Omnidirectional
Frequency Range 35 Hz to 20 kHz
Equivalent Noise Level 20 dB A-Weighted
Maximum SPL 135 dB SPL 1%  dB Pad Engaged
Impedance 200 ohms
Sensitivity 13 mV/PA, re: 1 V/Pa
Power Requirements 48 V
Low-Cut Filter Yes, 6 dB/Octave @ 100 Hz
Pad Yes, 10 dB
Operating Current Consumption 4.0 mA
Packaging Info
Package Weight 2.3 lb
Box Dimensions (LxWxH) 14.0 x 4.25 x 3.5"
The user manual for the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000 can be downloaded in .pdf format if it did not come with your new large diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other CAD users keep a unique electronic library for CAD large diaphragm condensers, where you can use our link to download the user manual for the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000.

The user manual lists all of the functions of the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000, all the basic and advanced features and tells you how to use the large diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from CAD service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the CAD GXL3000 Multi-Pattern Condenser Microphone GXL3000. User manuals are also available on the CAD website under Pro Audio - Recording - Large Diaphragm Condenser.
