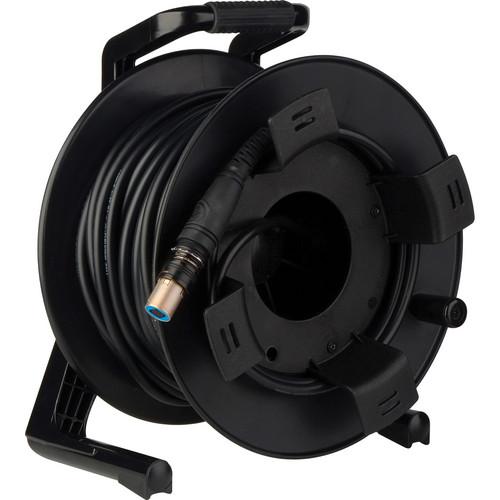

This 164 ft opticalCON QUAD Singlemode Fiber Tactical Cable Reel from Camplex is a four fiber broadcast interconnect cable with a heavy duty tactical reel. It features a Neutrik opticalCON QUAD NO4SX connector on each end, COCA factory terminated and interferometrically tested to GR-326-CORE endface standards. The connectors have common LC contacts and a mechanical shutter system that shields against endface contamination. The cable is tested for < -55dB typical return and comes with diagnostics documentation. The reel includes a side reel flange.
The connectors are assembled using the Neutrik opticalCON ADVANCED system, which adds lockable, waterproof metal caps and rubber guards, especially critical for outdoor applications. This improves the cable protection and water resistance in long-term use.
If you own a Camplex fiber optic cables and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-0164 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-0164:
Tactical, Polyurethane jacket, 5 mm diameter, black
Connector 1
Neutrik opticalCON QUAD NO4SX, nickel finish
Connector 2
Neutrik opticalCON QUAD NO4SX, nickel finish
Cable Retention Force
500 N
Lifetime
> 1000 cycles
Insertion / Withdrawal Force
< 45 N
Minimum Bend Radius
1.57" (4 cm)
Optical Type
LC-UPC straight polish
Fiber Type
9 µm singlemode fiber
Cable Loss
< 0.5 dB/km @ 1310/1550 nm
Connector Loss
< 0.5 dB / connector
Return Loss
-55 dB / -45 dB RL (typical/max)
Operating Temperature
-13 to 167°F (-25 to 75°C)
