User manual for the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000

The user manual for the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000 provides necessary instructions for the proper use of the product Professional Video - Cables - Fiber Optic Cables.

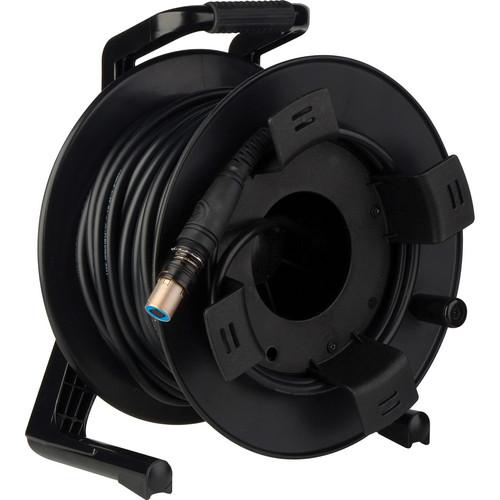

This 1000 ft opticalCON QUAD Singlemode Fiber Tactical Cable Reel from Camplex is a four fiber broadcast interconnect cable with a heavy duty tactical reel. It features a Neutrik opticalCON QUAD NO4SX connector on each end, COCA factory terminated and interferometrically tested to GR-326-CORE endface standards. The connectors have common LC contacts and a mechanical shutter system that shields against endface contamination. The cable is tested for < -55dB typical return and comes with diagnostics documentation. The reel includes a side reel flange.

The connectors are assembled using the Neutrik opticalCON ADVANCED system, which adds lockable, waterproof metal caps and rubber guards, especially critical for outdoor applications. This improves the cable protection and water resistance in long-term use.
If you own a Camplex fiber optic cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000:
Specifications
    Cable
    Length 1000 ft (305 m)
    Cable Type Tactical, Polyurethane jacket, 5 mm diameter, black
    Connector 1 Neutrik opticalCON QUAD NO4SX, nickel finish
    Connector 2 Neutrik opticalCON QUAD NO4SX, nickel finish
    Cable Retention Force 500 N
    Lifetime > 1000 cycles
    Insertion / Withdrawal Force < 45 N
    Minimum Bend Radius 1.57" (4 cm)
    Optical Type LC-UPC straight polish
    Fiber Type 9 µm singlemode fiber
    Cable Loss < 0.5 dB/km @ 1310/1550 nm
    Connector Loss < 0.5 dB / connector
    Return Loss -55 dB / -45 dB RL (typical/max)
    Operating Temperature -13 to 167°F (-25 to 75°C)
    The user manual for the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000 can be downloaded in .pdf format if it did not come with your new fiber optic cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Camplex users keep a unique electronic library for Camplex fiber optic cabless, where you can use our link to download the user manual for the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000.

    The user manual lists all of the functions of the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000, all the basic and advanced features and tells you how to use the fiber optic cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Camplex service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Camplex opticalCON QUAD Singlemode Fiber Tactical HF-TROC4S-1000. User manuals are also available on the Camplex website under Professional Video - Cables - Fiber Optic Cables.
