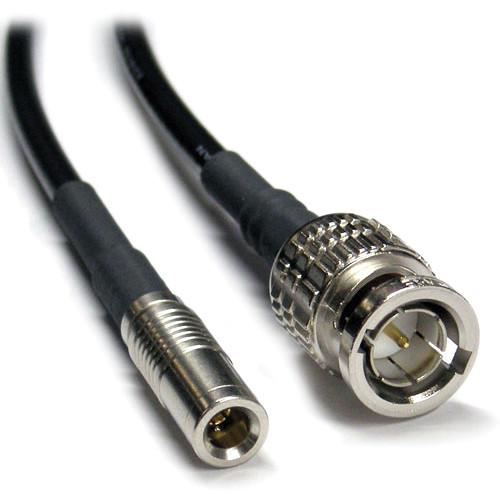

Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25
  • Manufacturer: Canare
  • Basic description and contents of package
  • Product classification: Professional Video - Camcorder & Camera Peripherals - Camcorder Cables
  • Safety instructions
  • Startup and operation of the camcorder cables
  • Tips for setting up your Canare
  • Settings and expert assistance
  • Contact Canare service
  • Troubleshooting
  • Warranty information
  • Price: 34 USD
Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25
Click to enlarge image

We recommend checking out our discussion threads on the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25, which address similar problems with connecting and setting up Camcorder Cables Canare.



User manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25

The user manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 provides necessary instructions for the proper use of the product Professional Video - Camcorder & Camera Peripherals - Camcorder Cables.

The Canare 25 ft offers the professional broadcaster a high-performance, 100% sweep tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards. It is designed for connecting equipment or video distribution gear having standard size BNC input.
If you own a Canare camcorder cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB25:
Specifications
    Impedance 75 ± 3 ohms
    Composition Inner Conductor: 1/0.59 A quantity/mm, 23 AWG
    Shield Coverage Outer Conductors 95% or more: 0.12TA mm, 7 ends, 16 carriers
    Conductor Resistance Inner: 39.95 ohms/mile (64.3 ohms/km)
    Outer: 10.5 ohms/mile (16.9 ohms/km)
    Static Capacity 53 nf/km @ 1 kHz
    Attenuation 30.2 dB / 328' (100 m) @ 750 MHz
    Cable O.D. Nominal: 0.16” (4.2 mm)
    Insulation: 0.1” (2.59 mm)
    Inner Conductor: 0.02” (0.59 mm)
    Maximum Transmission Distance 1,030.18’ (314 m) @ 143 Mbps (SMPTE 259M, Composite NTSC)
    941.6’ (287 m) @ 177 Mbps (ITU-R BT. 601, Composite PAL)
    777.56’ (237 m) @ 270 Mbps (SMPTE 259M, Component 4:2:2)
    675.85’ (206 m) @ 360 Mbps (SMPTE 259M, Component 4:2:2, 16x9)
    551.18’ (168 m) @ 540 Mbps (SMPTE 344M, SDI)
    216.53’ (66 m) @ 1.5 Gbps (SMPTE 292M, HD-SDI)
    150.92’ (46 m) @ 3 Gbps (SMPTE 424M, HD 1080p)
    Nominal Attenuation 4.1 dB / 328' (100 m) @ 10 MHz
    6.5 dB / 328' (100 m) @ 30 MHz
    9.5 dB / 328' (100 m) @ 72.0 MHz (SMPTE 259M, Composite NTSC)
    10.4 dB / 328' (100 m) @ 88.0 MHz (ITU-R BT. 601, Composite
    PAL)
    12.6 dB / 328' (100 m) @ 135 MHz (SMPTE 259M, Component
    4:2:2)
    14.5 dB / 328' (100 m) @ 180 MHz (SMPTE 259M, Component
    4:2:2 16x9)
    17.8 dB / 328' (100 m) @ 270 MHz (SMPTE 344M, 540 Mbps SDI)
    22.9 dB / 328' (100 m) @ 440 MHz
    30.2 dB / 328' (100 m) @ 750 MHz (SMPTE 292M, HD-SDI)
    40 dB / 328' (100 m) @ 1.3 GHz
    43.1 dB / 328' (100 m) @ 1.5 GHz (SMPTE 424M, HD 1080p)
    55.1 dB / 328' (100 m) @ 2.4 GHz
    62 dB / 328' (100 m) @ 3 GHz
    Length 25' (7.62 m)
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 0.45 lb
    Box Dimensions (LxWxH) 6.7 x 6.1 x 0.6"
