User manual for the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002
The user manual for the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

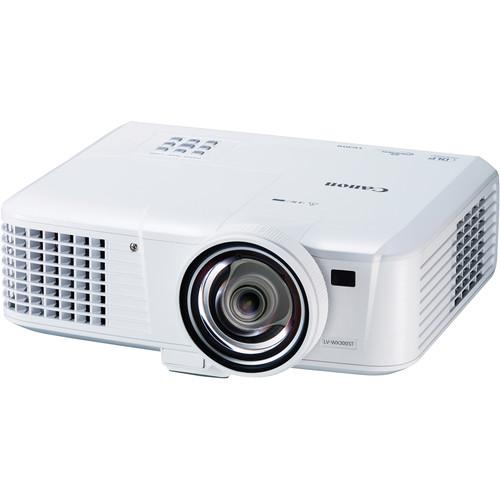

The Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP Projector is designed to combine power and portability. It delivers a notable 3000 lumens for viewing in a variety of lighting conditions. The LV-WX300ST features a 2,300:1 contrast ratio and a WXGA 1280 x 800 native resolution. It supports resolutions up to UXGA 1600 x 1200. This projector is powered by a DLP chip system, and the lamp features a long life of up to 6,000 hours in Eco mode. You can use the LV-WX300ST to project up to a 120" screen size, and it features a 0.49:1 short throw ratio at 100'.
At just 6.2 lb and 11.1" wide, the Canon LV-WX300ST is compact and light enough for travel. HDMI, S-video, dual VGA, and a composite video input are onboard for connecting video source components, plus an analog audio input and output. Other features include a 0.5W standby power consumption level, optional ceiling mount compatibility, rear screen projection capability, and the inclusion of an IR remote control and VGA cable. A 10W mono speaker is also built into the projector for audio playback.
|
If you own a Canon multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002:
| Display System | 1-Chip 0.65" / 16.51 mm DMD DLP | | Native Resolution | WXGA - 1280 x 800 | | Supported Resolutions | UXGA - 1600 x 1200
SXGA+ - 1400 x 1050
WXGA+ - 1440 x 900
FWXGA - 1366 x 768
WXGA - 1280 x 800
SXGA - 1280 x 1024
XGA - 1024 x 768
SVGA - 800 x 600
VGA - 640 x 480 | | Format | NTSC 4.43
PAL 60, M, N
SECAM | | HDTV Compatibility | 1080p
1080i
720p
576p
576i
480p
480i | | Brightness | Normal Mode: 3000 Lumens
Eco Mode: 2100 Lumens | | Uniformity | 70% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 2300:1 | | DLP Link 3D | Yes | | Color Range | R, G, B, W, Y, C | | Scan | Vertical: 15.73 - 120 kHz
Horizontal: 24 - 101.563 Hz | | Focus | Manual | | Lens | F 2.60 (f = 6.9 mm) | | Throw Distance | 29.1 - 49.9" (0.7 - 1.3 m) | | Throw Ratio | 0.49:1 | | Projection Size | 70 - 120" / 177.80 - 304.80 cm | | Keystone Correction | Vertical: - 18°
Vertical: + 12° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Projection Tilt Option | Yes | | Built-in Speaker | Yes, 10 W (Mono) | | Picture Modes | Presentation, User 1, User 2, sRGB | | Inputs/Outputs | 1x HDMI Audio/Video (Input)
2x 15-pin VGA Video (Input)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RS-232C Control (Input)
1x Mini-USB Service (Input)
1x Ethernet Control (Input/Output) | | Watts | Normal Mode: 210 W
Eco Mode: 170 W | | Life | Normal Mode: 4000 Hours
Eco Mode: 6000 Hours | | Fan Noise | Normal Mode: 36 dB
Eco Mode: 29 dB | | Remote Control | Yes | | System Requirements | Not Specified By Manufacturer | | Languages | Not Specified By Manufacturer | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Normal Mode: 330 W
Eco Mode: 270 W
Standby Mode (Network on): <3.0 W
Standby Mode (Network off): <.5 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Storage
-4 to 140°F (-20 to 60°C) | | Dimensions (WxHxD) | 11.1 x 4.6 x 10.5" / 282.0 x 117.9 x 267.5 mm including protrusion | | Weight | 6.2 lb / 2.81 kg | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 14.8 x 13.5 x 7.2" | |
The user manual for the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Canon users keep a unique electronic library
for Canon multimedia projectorss,
where you can use our link to download the user manual for the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002.
The user manual lists all of the functions of the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Canon service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Canon LV-WX300ST 3000 Lumen WXGA Short-Throw DLP 9880B002. User manuals are also
available on the Canon website under A/V Presentation - Projectors - Multimedia Projectors.
