| Image Device | 1/3" CMOS Sensor
Native 1920 x 1080
2.37 Mp; 2.07 Mp effective
Bayer pattern filter |
| Lens | 10x HD optical zoom (2x digital)
4.25-42.5mm (30.4-304mm, 35mm equivalent)
f/1.8, 8-blade iris
12 elements in 10 groups
58mm filter diameter |
| Horizontal Resolution | 900 TV lines or more (1920 x 1080i mode) |
| Focusing System | TVAF plus External Phase Difference Metering Sensor
Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual |
| Minimum Illumination | Auto: 1.3 lux (with Auto Slow Shutter)
Slow Shutter: 0.1 lux |
| Built-in Filters | Built-in ND gradation filter (Auto or Off) |
| Minimum Focus Distance | 20mm (0.78") - wide macro, 60 cm (1.97') - entire zoom range |
| Zoom/Focus Control | Zoom
Slider or handle; selectable shockless zoom mode
Zoom Speed
Zoom Slider: Variable speed/fixed speed (Fast/Normal/Slow, 16 speed level settings available in each mode)
Handle zoom: Fixed speed (Fast/Normal/Slow, 16 speed level settings available in each mode)
Focus Control
Manual: Lens ring, Touchscreen LCD (touch Focus, Touch and Track), Focus Preset
Auto: Face Priority AF / Face Only AF / Instant AF / Medium AF / TV AF |
| Iris Control | Manual: Custom dial control; touchscreen control
Auto: Yes |
| Aperture Range | f/1.8 - f/8 |
| Image Stabilization | Optical lens shift system (angle & vector movement detection)
3 modes: Dynamic, Standard, Powered |
| Video Recording System | Compression: AVCHD (high profile)
Color Space: 4:2:0 (at 24 Mb/s recording) Recording Modes:
MXP - 24 Mb/s
FXP - 17 Mb/s
XP+ - 12 Mb/s
SP - 7 Mb/s
LP - 5 Mb/s |
| Audio Recording Format | Dolby Digital (AC-3) 2-channel, PCM digital recording, 16-bit; 48 kHz |
| Audio Control | Audio limiter; auto/manual settings via control dials on handle
Microphone attenuation; microphone level meter |
| Frame Rates | 50i, PF25 |
| Pre-Record Buffer | 3 seconds |
| Scan Reverse | Up/down, left/right, up/down/left/right image inversion |
| LCD Monitor | 3.5" (8.8 cm) Touch Panel Screen, approx. 922,000 dots; 270° rotatable, backlight and brightness adjustment |
| Waveform Monitor and Vectorscopes | Waveform monitor |
| Markers | On/Off (Grid, Horizontal, Center) |
| Viewfinder | 0.24" (6.1mm) color, approx. 260,000 dots (100% FOV, adjustable brightness, color, contrast, +2.0 to -5.5 diopter) |
| Microphone | Built-in zoom microphone (customizable frequency response and directivity)
External microphone is optional |
| Memory Card Slot | SD Card: 2 Slots |
| Shutter Speed | 1/6 to 1/2000 (depending on Scene mode and frame rate)
Slow Shutter (SLS): 1/2 to 1/2000 (Low Light Scene mode)
Full Auto/Manual control (touchscreen LCD or control dial) |
| White Balance | Auto, Custom (2000K - 15000K in 100K increments), Daylight, Shade, Cloudy, Tungsten, Fluorescent H, Fluorescent, 2x Manual presets |
| Exposure | Metering: Center-weighted average or segment evaluative (determined by shooting mode)
Compensation: -2 to +2 EV (13 steps)
Modes: Smart Auto, Face Detection AE; manual control via Touch Exposure and Exposure Compensation functions
Exposure Lock: Yes |
| Gain Selection | 0 dB - 24 dB (in 1 dB increments)
AGC (with maximum gain limit) |
| Infrared System | Green or white shooting modes via built-in IR lamp |
| Maximum Recording Time | 64 GB Internal Flash Drive
(Greater capacity is possible when SD cards are used.)
24 Mb/s: 5 hours 55 minutes
17 Mb/s: 8 hours 20 minutes
12 Mb/s: 11 hours 30 minutes
7 Mb/s: 19 hours 10 minutes
5 Mb/s: 24 hours 30 minutes Class 4 or higher SDHC or SDXC card required for 24 Mb/s and 17 Mb/s modes. |
| Still Recording Media | SDXC/SDHC/SD memory card |
| Still Picture Resolution | During video recording or playback: 1920 x 1080 |
| Data Transfer | Internal: Internal memory to card, card to card (still & video) |
| Input and Output Connectors | Component (x1 Output)
Composite: 3.5mm A/V (x1 Output)
HDMI: Mini Type C HDMI 1.3 (x1 Output): 1080p50 output possible
Mic/Line: XLR 3-pin with 48V phantom power (x2 Input)
Stereo Mic: 3.5mm Mini Jack (x1 Input)
USB: Mini-B USB 2.0
Headphone: 3.5mm Mini
Remote Control Terminal: LANC (2.5mm) |
| Color Bars | SMPTE |
| Tally | Yes |
| Accessory Shoe | Cold shoe |
| Power Requirements | 7.4V DC (battery pack, included) |
| Power Consumption | 3.4W |
| Battery Backup | Lithium coin battery (built-in) |
| Operating Temperature | 23 to 113° F (-5 to 45° C), 60% relative humidity |
| Dimensions (WxHxD) | 5.1 x 7 x 8" (13 x 17.8 x 20.5 cm) - including lens hood and microphone holder |
| Weight | 1.71 lb (0.78 kg) - not including battery, memory card, lens hood, mic holder
1.81 lb (0.82 kg) - fully equipped |

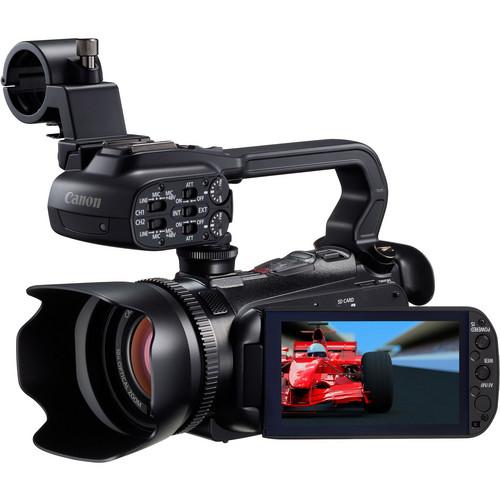

Question and answer discussion forum concerning user instructions and resolving problems with the Canon XA10 HD Professional PAL Camcorder XA10E - no comments have been made yet - be the first to add a comment
