User manual Canon XF100 HD Professional PAL Camcorder XF100E

Operating instructions and pdf manual for use - Canon XF100 HD Professional PAL Camcorder XF100E User manual, User manual Canon XF100 HD Professional PAL Camcorder XF100E, Canon, XF100, HD, Professional, PAL, Camcorder, XF100E, Video


User manual for Canon XF100 HD Professional PAL Camcorder XF100E

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Canon  XF100 HD Professional PAL Camcorder XF100E
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Professional Video - Professional Camcorders - PAL Camcorders
  • Safety instructions
  • Startup and operation of the pal camcorders
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Canon XF100 HD Professional PAL Camcorder XF100E, which address similar problems with connecting and setting up PAL Camcorders Canon.



User manual for the Canon XF100 HD Professional PAL Camcorder XF100E

The user manual for the Canon XF100 HD Professional PAL Camcorder XF100E provides necessary instructions for the proper use of the product Professional Video - Professional Camcorders - PAL Camcorders.

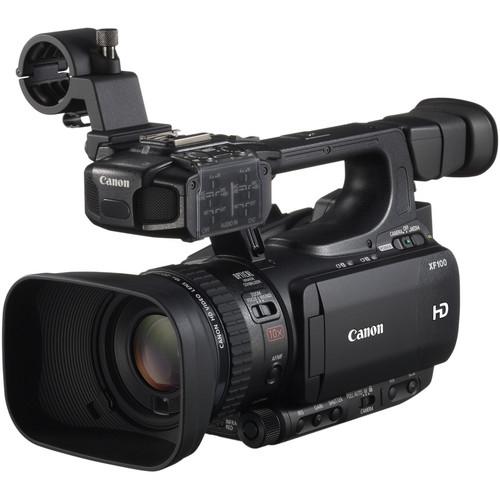

Canon's XF100 HD Professional PAL Camcorder is an amazingly compact, fully featured pro video camera that imports nearly all the features and functionality of the three-chip XF300 into a smaller, single-sensor form factor. Taking advantage of the latest HD technology – along with Canon's robust MPEG-2 4:2:2 codec – the XF100 records full HD video to affordable Compact Flash cards, making it as versatile as it is powerful.
If you own a Canon pal camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon XF100 HD Professional PAL Camcorder XF100E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon XF100 HD Professional PAL Camcorder XF100E:
Specifications
    Image Device 1/3" CMOS Sensor
    2.37 Mp (2.07 Mp effective)
    Lens 10x HD Zoom
    4.25-42.5mm (30.4-304mm, 35mm equivalent)
    f/1.8-2.8
    58mm filter diameter
    Horizontal Resolution 900 TV lines or more
    Focusing System TVAF plus External Phase Difference Metering Sensor
    Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual
    Minimum Illumination 0.08 lux (Manual mode, 50i frame rate, 1/3 shutter speed, +33 dB gain)
    Built-in Filters Neutral Density (Auto or Off)
    Minimum Focus Distance 20mm (wide macro), 60 cm (entire zoom range)
    Video Recording System Compression: MPEG-2 Long GOP
    Color Space: 4:2:2 (at 50 Mb/s recording)
    File Format: MXF

    Recording Modes:
    50 Mb/s (CBR) 4:2:2, 1920 x 1080 (50i/25p)
    1280 x 720 (50p/25p)
    35 Mb/s (VBR) 4:2:0, 1920 x 1080 (50i/25p),
    1280 x 720 (50p/25p)
    25 Mb/s (CBR) 4:2:0, 1440 x 1080 (50i/25p)

    Audio Recording Format 2-channel PCM digital recording, 16-bit, 48 kHz
    Frame Rates 50i, 50p (720p mode only), 25p
    Image Stabilization SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off
    LCD Monitor 3.5" Color, approx. 920,000 dots
    Viewfinder 0.24" Color, approx. 260,000 dots
    Microphone Stereo electret condenser microphone
    Memory Card Slot CF Card: 2 Slots (movie files only)
    SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings
    Shutter Speed Max 1/2000
    White Balance Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten
    Gain Selection -6.0 db, -3.0 db; 0-24.0 dB in 0.5 dB incremements; 33.0 dB
    Maximum Recording Time 64 GB Compact Flash (CF) card
    (Greater capacity is possible when two cards are used.)
    25 Mb/s: 310 minutes
    35 Mb/s: 225 minutes
    50 Mb/s: 160 minutes
    Input and Output Connectors Component (x1 Output)
    Composite: 3.5mm A/V (x1 Output)
    HDMI: Standard Type A (x1 Output)
    Mic/Line: XLR 3-pin (x2 Input)
    USB: Mini-B USB 2.0
    Headphone: 3.5mm Mini
    Remote Control Terminal: LANC
    Power Requirements 7.4V DC (Battery Pack)
    8.4V DC (DC In)
    Power Consumption Recording at 50 Mb/s with AF on, viewfinder/LCD screen normal brightness: 6.1W with viewfinder, 6.2W with LCD screen
    Operating Temperature 32-104°F (0-40°C), 85% relative humidity
    Dimensions (WxHxD) 4.8 x 5.8 x 9.8" (12.1 x 14.8 x 25 cm)
    Weight 2.2 lb (1 kg) not including battery, memory card, lens hood, mic holder
    Packaging Info
    Package Weight 7.6 lb
    Box Dimensions (LxWxH) 12.6 x 9.1 x 8.0"
    The user manual for the Canon XF100 HD Professional PAL Camcorder XF100E can be downloaded in .pdf format if it did not come with your new pal camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon pal camcorderss, where you can use our link to download the user manual for the Canon XF100 HD Professional PAL Camcorder XF100E.

    The user manual lists all of the functions of the Canon XF100 HD Professional PAL Camcorder XF100E, all the basic and advanced features and tells you how to use the pal camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon XF100 HD Professional PAL Camcorder XF100E. User manuals are also available on the Canon website under Professional Video - Professional Camcorders - PAL Camcorders.
