User manual Cartoni D600 Delta Fluid Head (100mm Ball Base) D600

Operating instructions and pdf manual for use - Cartoni D600 Delta Fluid Head (100mm Ball Base) D600 User manual, User manual Cartoni D600 Delta Fluid Head (100mm Ball Base) D600, Cartoni, D600, Delta, Fluid, Head, 100mm, Ball, Base, D600,


User manual for Cartoni D600 Delta Fluid Head (100mm Ball Base) D600

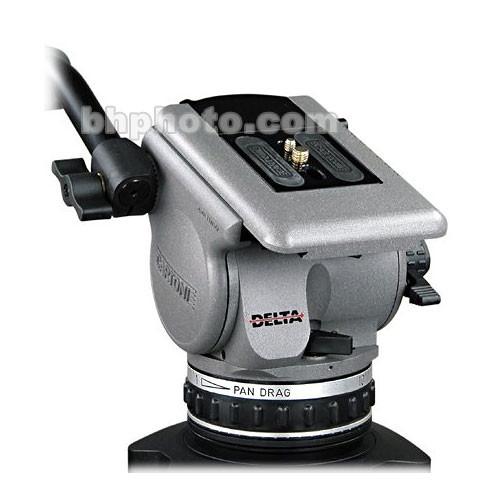

Cartoni D600 Delta Fluid Head (100mm Ball Base) D600
  • Manufacturer: Cartoni
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads
  • Safety instructions
  • Startup and operation of the video tripod heads
  • Tips for setting up your Cartoni
  • Settings and expert assistance
  • Contact Cartoni service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600, which address similar problems with connecting and setting up Video Tripod Heads Cartoni.



User manual for the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600

The user manual for the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.

The Delta fluid head is designed to support ENG dockable camcorders equipped with large lenses or employed with EFP cameras. Built with an extensive use of ultra-light magnesium alloy, combines excellent reliability with unbeatable cost efficiency and flexibility. Features the award winning, patented fluid damping system ensures consistent drag levels and smooth camera movements throughout the range and allows perfect reproduction of 10 basic tension settings continuously adjustable in both pan and tilt modes.
In addition an infinitely variable counterbalance with easily readable numeric reference, provides excellent performances at any tilt angle from -90° to +90° degrees. Designed to accommodate offset payloads such as long lenses, small prompters and top-mounted viewfinders
If you own a Cartoni video tripod heads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Cartoni D600 Delta Fluid Head (100mm Ball Base) D600Download user manual for Cartoni D600 Delta Fluid Head (100mm Ball Base) D600
(PDF file, 2.31 MB)
Additional parameters of the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600:
Load Capacity 48 lb (21.7 kg)
Diameter/Thread 100mm 4" Half Ball
Counter Balance System Single Spring Module
Counter Balance Range 18 - 48 lb (8.1 - 21.7 kg), Infinitely Adjustable
Center of Gravity 4"
Quick Release/Wedge Plate Yes (Cat #B511)
Balance Plate 60mm Sliding Plate, 2x 3/8" Screws
Tilt Drag Infinitely Adjustable with 10 Settings
Tilt Range -90/+90°
Tilt Lock Yes
Spring Loaded Counter Balance Infinitely Adjustable with 10 Settings
Pan Range 360°
Pan Lock Yes
Leveling Bubble/Illuminated Yes, Illuminated
Temperature Range -22° to +158°F (-30° to +70°C)
Weight 8.3 lb (3.7 kg)
Packaging Info
Package Weight 11.05 lb
Box Dimensions (LxWxH) 18.4 x 11.0 x 10.1"
The user manual for the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600 can be downloaded in .pdf format if it did not come with your new video tripod heads, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cartoni users keep a unique electronic library for Cartoni video tripod headss, where you can use our link to download the user manual for the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600.

The user manual lists all of the functions of the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600, all the basic and advanced features and tells you how to use the video tripod heads. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cartoni service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cartoni D600 Delta Fluid Head (100mm Ball Base) D600. User manuals are also available on the Cartoni website under Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.
