User manual Celestron 8x42 Outland X Binocular (Black) 71346

Operating instructions and pdf manual for use - Celestron 8x42 Outland X Binocular (Black) 71346 User manual, User manual Celestron 8x42 Outland X Binocular (Black) 71346, Celestron, 8x42, Outland, X, Binocular, Black, 71346, Video


User manual for Celestron 8x42 Outland X Binocular (Black) 71346

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Celestron  8x42 Outland X Binocular (Black) 71346
  • Manufacturer: Celestron
  • Basic description and contents of package
  • Product classification: Optics - Binoculars - Binoculars
  • Safety instructions
  • Startup and operation of the binoculars
  • Tips for setting up your Celestron
  • Settings and expert assistance
  • Contact Celestron service
  • Troubleshooting
  • Warranty information
  • Price: 60 USD
Celestron  8x42 Outland X Binocular (Black) 71346 Celestron  8x42 Outland X Binocular (Black) 71346
Click to enlarge image

We recommend checking out our discussion threads on the Celestron 8x42 Outland X Binocular (Black) 71346, which address similar problems with connecting and setting up Binoculars Celestron.



User manual for the Celestron 8x42 Outland X Binocular (Black) 71346

The user manual for the Celestron 8x42 Outland X Binocular (Black) 71346 provides necessary instructions for the proper use of the product Optics - Binoculars - Binoculars.

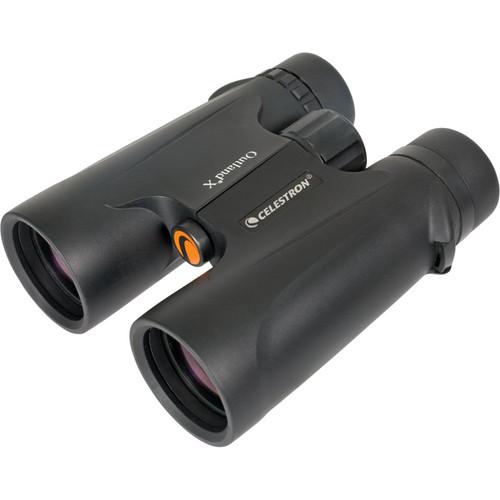

The black 8x42 Outland X Binocular from Celestron features multicoated optics, BAK4 Roof Prisms, a wide angle of view, and weather-proof construction with rubber armoring. While the multicoated lenses increase transmission and image brightness, the Roof Prisms made of BAK4 optical glass preserve true colors. The wide 6.8° angular field of view allows you to see a linear field of 356' at a distance of 1000 yards, and the center focus with a diopter allow seeing crisp details as close as 14.8'. The binocular also has a 56-74 mm interpupillary adjustment range, a 5.3 mm exit pupil and 18 mm eye relief.

In addition to optical performance features, the Outlander X presents a number of convenience and construction highlights. The binocular housing is nitrogen-purged water and fogproof, with a smooth black rubberized armoring to ensure a non-slip grip. For easy focusing, there is a large knurled center focus knob and a ribbed diopter ring on the right eyepiece. To accommodate anyone with glasses, the eyepieces have twist-up eyecups. If you want to attach the binocular to a tripod, use the threaded hole under the front center cup with an optional adapter.

Also included with the binocular are a soft neoprene carry pouch, a strap, and protective objective lens cups.
If you own a Celestron binoculars and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Celestron 8x42 Outland X Binocular (Black) 71346 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Celestron  8x42 Outland X Binocular (Black) 71346Download user manual for Celestron 8x42 Outland X Binocular (Black) 71346
(PDF file, 0.68 MB)
Additional parameters of the Celestron 8x42 Outland X Binocular (Black) 71346:
Prism Type Roof
Magnification 8x
Objective Lens Diameter 42mm
Angle of View 6.8° (actual)
Field-of-View 356' @ 1000 yd / 118.19 m @ 1000 m
Minimum Focus Distance 14.8' / 4.51 m
Exit Pupil Diameter 5.3  mm
Eye Relief 18  mm
Interpupillary Adjustment 56 - 74 mm / 2.20 - 2.91"
Dioptric Correction ±4
Focus Type Center
Tripod Mount Yes
Dimensions 5.8 x 5 x 2.1" / 147.32 x 127.00 x 53.34  mm
Weight 22 oz / 624 g
Packaging Info
Package Weight 1.9 lb
Box Dimensions (LxWxH) 7.2 x 6.4 x 3.2"
The user manual for the Celestron 8x42 Outland X Binocular (Black) 71346 can be downloaded in .pdf format if it did not come with your new binoculars, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Celestron users keep a unique electronic library for Celestron binocularss, where you can use our link to download the user manual for the Celestron 8x42 Outland X Binocular (Black) 71346.

The user manual lists all of the functions of the Celestron 8x42 Outland X Binocular (Black) 71346, all the basic and advanced features and tells you how to use the binoculars. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Celestron service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Celestron 8x42 Outland X Binocular (Black) 71346. User manuals are also available on the Celestron website under Optics - Binoculars - Binoculars.
