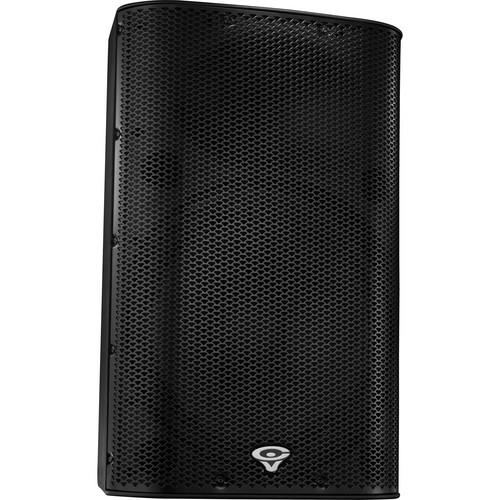

User manual Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X

Operating instructions and pdf manual for use - Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X User manual, User manual Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X, Cerwin-Vega, P1500X, 15, Portable, Powered, Loudspeaker,


User manual for Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Cerwin-Vega P1500X 15
  • Manufacturer: Cerwin-Vega
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Cerwin-Vega
  • Settings and expert assistance
  • Contact Cerwin-Vega service
  • Troubleshooting
  • Warranty information
  • Price: 799 USD
We recommend checking out our discussion threads on the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X, which address similar problems with connecting and setting up PA Speakers Cerwin-Vega.



User manual for the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X

The user manual for the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

The Cerwin-Vega P1500X 15" Portable Powered Loudspeaker is a powerful, portable speaker system that combines rugged construction, extreme clarity and unmatched bass performance in an easy to use and versatile package. The P1500X full-range speaker is suited for any sound reinforcement application, from live performances to DJ gigs, as well as public speaking engagements.
If you own a Cerwin-Vega pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Cerwin-Vega P1500X 15Download user manual for Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X
(PDF file, 10.08 MB)
Additional parameters of the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X:
Specifications
    System Type Active 2-way full-range, bass reflex
    Frequency Range 49.8 Hz to 23.5 kHz (-10 dB)
    Frequency Response 55.0 Hz to 20.5 kHz (±3 dB)
    Nominal Coverage Angle 90° Horizontal, 65° Vertical (-6 dB)
    Maximum SPL At 1 m: 134 dB

    The amplifier power measurement was performed with the limiter protection circuits engaged. Full range loudspeakers are measured in full space and subwoofers are measured in half space.

    Amplifier Type Class D
    Rating 1,500 W Dynamic
    540 W Continuous
    Driver Low Frequency: 15"
    High Frequency: 1¾" diaphragm, 1" exit
    Connectors CH 1 & 2 - Neutrik XLR/TRS inputs
    CH 3 Dual ¼" TS
    THRU 1 & 2 - XLR, MIX - XLR
    Impedance CH 1 & 2: 20 kΩ
    CH 3: 10 kΩ
    Indicators Signal/Clip, Power, Limiter, Protect
    Enclosure Polymer cabinet, flush waveguide
    Grille 18 gauge, perforated steel
    Mounting 7.5° or flat, 35mm pole socket
    4 x M10 suspension, 2 x M10 pull-back
    Fuse 0.1 x 0.7" (5.0 x 20.0 mm)
    T8A/250V (120V version)
    T4A/250V (240V version)
    Controls Gain/Level (Input - per channel), Line/Mic-D.I. (Input - per channel), Enhanced EQ (On/Off), Vega Bass Boost (On/Off), High Pass Filter (On/Off), Front Light Limiter (On/Off), Main Volume (Output), Power (On/Off)
    AC Input Voltage 220 to 240 V / 100 to 120 V
    Operating Temperature -4 to 131°F (-20° to 55°C)
    Dimensions (H x W x D) 27.5 x 17.0 x 13.5" (698.5 x 431.8 x 342.9 mm)
    Weight 53.0 lb (24.0 kg)
    The user manual for the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cerwin-Vega users keep a unique electronic library for Cerwin-Vega pa speakerss, where you can use our link to download the user manual for the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X.

    The user manual lists all of the functions of the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cerwin-Vega service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cerwin-Vega P1500X 15" Portable Powered Loudspeaker P1500X. User manuals are also available on the Cerwin-Vega website under Pro Audio - Live Sound - PA Speakers.
