User manual Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9

Operating instructions and pdf manual for use - Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9 User manual, User manual Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9, Cisco, Aironet, 2702e, Series, Access, Point, AIR-CAP2702E


User manual for Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9

Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Access Points
  • Safety instructions
  • Startup and operation of the wireless access points
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 700 USD

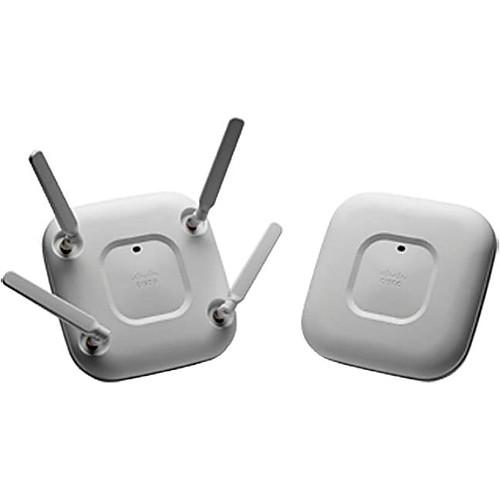

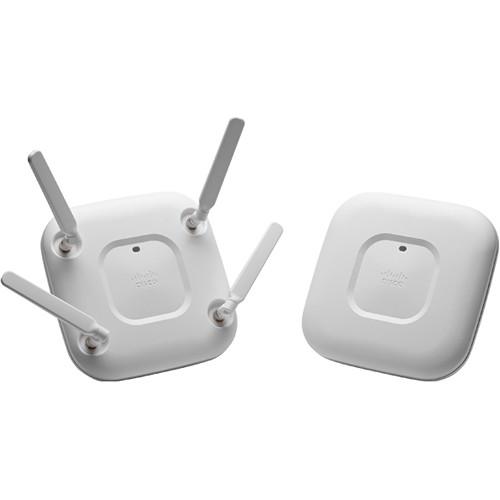

Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9 Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9
Click to enlarge image

We recommend checking out our discussion threads on the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9, which address similar problems with connecting and setting up Wireless Access Points Cisco.



User manual for the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9

The user manual for the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

With support for a theoretical connection rate of up to 1.3 Gbps, the Aironet 2702e Series Access Point with External Antennas from Cisco is designed to provide enhanced wireless connectivity to a variety of devices including smartphones, tablets, computers, and more thanks to integrated multiple-input-multiple-output technology. This technology utilizes multiple antennas to produce three spatial streams for a more stable, reliable wireless connection. This Cisco access point also features Optimized AP Roaming to streamline the process of selecting and switching to the access point offering the strongest signal.
If you own a Cisco wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9:
Specifications
802.11n 3x4 MIMO with three spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20 and 40 MHz channels
PHY data rates up to 450 Mb/s (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
802.11ac 3 x 4 MIMO with three spatial streams
Maximal Ratio Combining (MRC)
802.11ac beamforming
20-, 40-, and 80 MHz channels
PHY data rates up to 1.3 Gb/s (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Frequency Band and 20 MHz Operating Channels A Regulatory Domain:
2.412 to 2.462 GHz, 11 channels
5.180 to 5.320 GHz, 8 channels
5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz)
5.745 to 5.825 GHz, 5 channels
Max Transmit Power 2.4 GHz: 802.11b/802.11g/802.11n (HT20)
22 dBm, 3 antennas

5 GHz: 802.11a/802.11n (HT20)/802.11n (HT40)/802.11ac (non-HT80/VHT20/VHT40/VHT80)
23 dBm, 4 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details

Available Total Transmit Power Settings 2.4 GHz
22 dBm (160 mW)
19 dBm (80 mW)
16 dBm (40 mW)
13 dBm (20 mW)
10 dBm (10 mW)
7 dBm (5 mW)
4 dBm (2.5 mW)
2 dBm (1.25 mW)

5 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details

Integrated Antenna 2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360°
5 GHz, gain 4.0 dBi, horizontal beamwidth 360°
External Antennas Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios (sold separately)

Interfaces 2 x 10/100/1000BASE-T auto-sensing (RJ-45)
Management console port (RJ-45)
System Memory 512 MB DRAM
64 MB flash
Power Requirements Input: AP2600: 44 to 57 VDC
Power Supply and Power Injector: 100 to 240 VAC, 50 to 60 Hz
Power Draw AP2700: 15 W
Powering Options 802.3at PoE+
Enhanced PoE
Cisco AP2700 power injectors (AIR-PWRINJ4=)
Cisco AP2700 local power supply (AIR-PWR-B=)
Software Cisco Unified Wireless Network Software Release 7.6MR2 or later
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Temperature Operating: 32 to 104°F (0 to 40°C)
Storage: -22 to +158°F (-30 to +70°C)
Humidity Operating: 10 to 90% (non-condensing)
Altitude Test Operating: 104°F (40°C), 9,843' (3,000 m) Storage: 77°F (25°C), 15,000' (4,572 m)
Compliance Safety UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
EN 50155

Radio approvals:
FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

IEEE standards:
IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
IEEE 802.11ac Draft 5

Security:
802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
802.1X
Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2
EAP-Flexible Authentication via Secure Tunneling (FAST)
PEAP v1 or EAP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)

Multimedia:
Wi-Fi Multimedia (WMM)

Other:
FCC Bulletin OET-65C
RSS-102
Dimensions (L x W x H) 8.69 x 8.69 x 1.99" (22.10 x 22.10 x 5.10 cm)
Weight 2.2 lb (1.0 kg)
The user manual for the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9 can be downloaded in .pdf format if it did not come with your new wireless access points, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco wireless access pointss, where you can use our link to download the user manual for the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9.

The user manual lists all of the functions of the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9, all the basic and advanced features and tells you how to use the wireless access points. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco Aironet 2702e Series Access Point AIR-CAP2702E-N-K9. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Wireless Access Points.
