User manual for the Cisco Catalyst 2960-24PC-S 24-Port 10/100 WS-C2960-24PC-S

The user manual for the Cisco Catalyst 2960-24PC-S 24-Port 10/100 WS-C2960-24PC-S provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

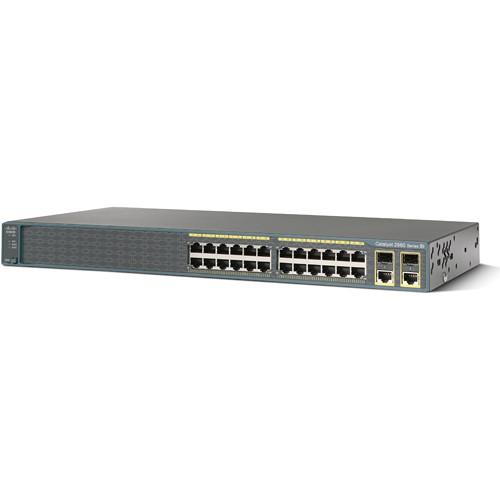

The Catalyst 2960-24PC-S 24-Port 10/100 Ethernet Switch from Cisco is an Ethernet switch with 24 ports for 10/100 Ethernet as well as 2 dual-purpose uplink ports. It comes bundled with LAN Lite software and Power over Ethernet (PoE) capabilities. A limited lifetime hardware warranty helps protect your business from malfunctioning equipment. Your business will be up and running with next business day delivery of replacement parts and 90 days of Cisco Technical Assistance (TAC) support.
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco Catalyst 2960-24PC-S 24-Port 10/100 WS-C2960-24PC-S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco Catalyst 2960-24PC-S 24-Port 10/100 WS-C2960-24PC-S:
Performance
Standards IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP without MED)
IEEE 802.3ad
IEEE 802.3ah (100BASE-X single- and multimode fiberonly)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and1000BASE-T ports
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
100BASE-FX (SFP)
1000BASE-SX (SFP)
1000BASE-LX/LH (SFP)
Remote Monitoring (RMON) I and II standards
SNMPv1, v2c, and v3
Protocols TCP/IP
Ports 24 x Ethernet 10/100 (all 24 of these ports are PoE)
2 x dual-purpose ports (10/100/1000 or SFP)
Bandwidth Forwarding: 16Gb/s
Flash Memory 32MB
Memory (DDR SDRAM) 64MB
Speed 10/100 Mbps
10/100/1000 Mbps (dual-purpose ports only)
MAC Address Table Size 8000
Frame Rate 9016 bytes
Switching Method Managed
VLANs Up to 64
Up to 4000 IDs
Output Data Size Maximum Transmission Unit (MTU): Up to 9198 bytes
Maximum Forwarding Rate 6.5 mpps
Advanced Features Unicast MAC Addresses
Default: 8000
QOS: 8000
Dual: 8000

IPv4 IGMP Groups
Default: 256
QoS: 256
Dual: 256

IPv4 MAC QoS Acccess Control Entries (ACEs)
Default: 128
QoS: 384
Dual: 0

IPv4 Mac Security ACEs
Default: 384
QoS: 128
Dual: 256
Management BRIDGE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MI
CISCO-CONFIG-COPY-MIB
CISCO-CONFIG-MAN-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-LAG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-POWER-ETHERNET-EXT-MIB
CISCO-PRODUCTS-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-SMI-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
Cisco-UDLDP-MIB
CISCO-TC-MIB
CICSO-TCP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
CISCO-VLAN-IFTABLE-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IEEE8023-LAG-MIB
IF-MIB
INET-ADDRESS-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
RFC1213-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
Pressure Levels Typical Sound: 48dB
MTBF 242,818 hours
General
Environmental Requirements Operating Temperature (5000'/1500m): 23°F to 113°F / -5°C to 45°C
Operating Temperature (10,000'/3000m): 23°F to 104°F / -5°C to 40°C
Short-term Exception at Sea Level: 23°F to 31°F / -5°C to 55°C
Short-term Exception (5000'/1500m): 23°F to 122°F / -5°C to 50°C
Short-term Exception (10,000'/3000m): 23°F to 113°F / -5°C to 45°C

Operating Altitude: 10,000' / 3,000m
Storage Altitude: Up TO 13,000' / 4,000m

Operating Relative Humidity: 10% to 95% (noncondensing)
Storage Relative Humidity: 10% to 95% (noncondensing)

Measured per ISO 7779 and declared per ISO 9296. Bystander positions operating mode at 25°C ambient.

Power Consumption 100% Throughput: 27W
5% Throughput: 24W
Power Requirements Voltage: 100-240 VAC
Frequency: 50-60Hz
Current: 1.3-0.8 A
Power Rating 0.47 kVA
Safety Compliance UL 60950-1, Second Edition
CAN/CSA 22.2 No. 60950-1, Second Edition
TUV/GS to EN 60950-1, Second Edition
CB to IEC 60950-1 Second Edition with all country deviations
CE Marking
NOM (through partners and distributors)
Emission Standard FCC Part 15 Class A
EN 55022 Class A (CISPR22)
EN 55024 (CISPR24)
AS/NZS CISPR22 Class A
CE
CNS13438 Class A
MIC
GOST
China EMC Certifications
RoHS Compliant Yes
Dimensions 1.73 x 17.7 x 13.0" / 4.4 x 45.0 x 33.0cm
Weight 5.4 lb / 2.5 kg
