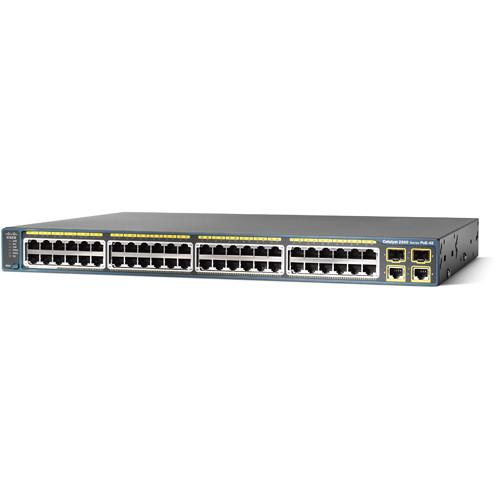

Cisco Catalyst 2960 48 PoE Ports 2 SFP & 2 WS-C2960-48PST-L
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Cisco Catalyst 2960 48 PoE Ports 2 SFP & 2 WS-C2960-48PST-L, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Cisco.



User manual for the Cisco Catalyst 2960 48 PoE Ports 2 SFP & 2 WS-C2960-48PST-L

The user manual for the Cisco Catalyst 2960 48 PoE Ports 2 SFP & 2 WS-C2960-48PST-L provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

The Cisco Catalyst 2960 48 PoE Ports 2 SFP & 2 10/100/1000 Uplinks Switch is your answer to a cost effective fixed-configuration access switch designed for enterprise, midmarket and branch office networks. The switch is the leading Layer 2 edge, giving you a secured, sustainable, easy and a borderless network experience.
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco Catalyst 2960 48 PoE Ports 2 SFP & 2 WS-C2960-48PST-L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco Catalyst 2960 48 PoE Ports 2 SFP & 2 WS-C2960-48PST-L:
Hardware Specification
Ports 48 Ethernet 10/100 ports
Uplinks 2 10/100/1000 ports
PoE Power 370 W
Maximum Number of PoE 24 ports up to 15.4W
Mean Time Between Failures 180,427 hours
Maximum Forwarding Rate 13.3 Mpps
Flash Memory 32 MB
Memory DRAM:64 MB
VLANs Max VLANs:255
VLAN IDs 4000
Maximum Transmission Unit Up to 9000 Bytes
IPv4 Host Table Unicast MAC addresses:

Default/QoS/Dual: 8000

IPv4 IGMP groups:

Default/QoS/Dual: 8000

IPv4 MAC QoS(ACEs):

Default/QoS/Dual: 128/384/0

IPv4 MAC security ACEs:

Default/QoS/Dual: 384/128/256
Environmental Requirements
Operating Temperature Up to 5000' (1500 m): 23 to 113ºF (-5 to 45ºC)

Up to 10,000' (3000 m): 23 to 104ºF (-5 to 40ºC)
Storage Temperature Up to 15,000' (4573 m): -13 to 158ºF (-25 to 70ºC)
Short-term exception At sea level*: 23 to 31ºF (-5 to 55ºC)

Up to 10,000' (3000 m)*: 23 to 113ºF (-5 to 45ºC)

Up to 13,000' (4000 m)*: 23 to 104ºF (-5 to 40ºC)

*Measured per ISO 7779 and declared per ISO 9296.  Bystander positions operating mode at 25°C ambient.

Operating Altitude Up to 10,000' (Up to 3000 m)
Storage Altitude Up to 13,000' (Up to 4000 m)
Operating Relative Humidity 10 to 95% noncondensing
Storage Relative Humidity 10 to 95% noncondensing
Certifications
Agency & Safety Certifications UL 60950-1, Second Edition

CAN/CSA 22.2 No. 60950-1, Second Edition

TUV/GS to EN 60950-1, Second Edition

CB to IEC 60950-1 Second Edition with all country deviations

CE Marking

NOM (through partners and distributors)
Power Requirements
Current 5.0 to 2.0 A
Frequency 50 to 60 Hz
Power Rating 0.5 kVA
Input Voltage 100 to 240 VAC
DC input voltage (RPS input): 12V at 5 A
Measured Power Consumption
100 Percent Throughput 67W
5 Percent Throughput 63W
Management BRIDGE-MIB

CISCO-CABLE-DIAG-MIB

CISCO-CDP-MIB

CISCO-CLUSTER-MIB

CISCO-CONFIG-COPY-MIB

CISCO-CONFIG-MAN-MIB

CISCO-DHCP-SNOOPING-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-ENVMON-MIB

CISCO-ERR-DISABLE-MIB

CISCO-FLASH-MIB

CISCO-FTP-CLIENT-MIB

CISCO-IGMP-FILTER-MIB

CISCO-IMAGE-MIB

CISCO-IP-STAT-MIB

CISCO-LAG-MIB

CISCO-MAC-NOTIFICATION-MIB

CISCO-MEMORY-POOL-MIB

CISCO-PAGP-MIB

CISCO-PING-MIB

CISCO-POE-EXTENSIONS-MIB

CISCO-PORT-QOS-MIB

CISCO-PORT-SECURITY-MIB

CISCO-PORT-STORM-CONTROL-MIB

CISCO-PRODUCTS-MIB

CISCO-PROCESS-MIB

CISCO-RTTMON-MIB

CISCO-SMI-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-SYSLOG-MIB

CISCO-TC-MIB

CICSO-TCP-MIB

CISCO-UDLDP-MIB

CISCO-VLAN-IFTABLE

RELATIONSHIP-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VTP-MIB

ENTITY-MIB

ETHERLIKE-MIB

IEEE8021-PAE-MIB

IEEE8023-LAG-MIB

IF-MIB

INET-ADDRESS-MIB

OLD-CISCO-CHASSIS-MIB

OLD-CISCO-FLASH-MIB

OLD-CISCO-INTERFACES-MIB

OLD-CISCO-IP-MIB

OLD-CISCO-SYS-MIB

OLD-CISCO-TCP-MIB

OLD-CISCO-TS-MIB

RFC1213-MIB

RMON-MIB

RMON2-MIB

SNMP-FRAMEWORK-MIB

SNMP-MPD-MIB

SNMP-NOTIFICATION-MIB

SNMP-TARGET-MIB

SNMPv2-MIB

TCP-MIB

UDP-MIB

ePM MIB

CISCO-STACKWISE-MIB (2960-S)
Electromagnetic emissions certifications FCC Part 15 Class A
EN 55022 Class A (CISPR22)
EN 55024 (CISPR24)
AS/NZS CISPR22 Class A
CE
CNS13438 Class A
MIC
GOST
China EMC Certifications
Standards
RFC RFC 768 - UDP
RFC 783 - TFTP
RFC 791 - IP
RFC 792 - ICMP
RFC 793 - TCP
RFC 826 - ARP
RFC 854 - Telnet
RFC 951 - Bootstrap Protocol (BOOTP)
RFC 959 - FTP
RFC 1112 - IP Multicast and IGMP
RFC 1157 - SNMP v1
RFC 1166 - IP Addresses
RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
RFC 1305 - NTP
RFC 1492 - TACACS+
RFC 1493 - Bridge MIB
RFC 1542 - BOOTP extensions
RFC 1643 - Ethernet Interface MIB
RFC 1757 - RMON
RFC compliance:
RFC 1901 - SNMP v2C
RFC 1902-1907 - SNMP v2
RFC 1981 - Maximum Transmission Unit
(MTU) Path Discovery IPv6
RRC 2068 - HTTP
RFC 2131 - DHCP
RFC 2138 - RADIUS
RFC 2233 - IF MIB v3
RFC 2373 - IPv6 Aggregatable Addrs
RFC 2460 - IPv6
RFC 2461 - IPv6 Neighbor Discovery
RFC 2462 - IPv6 Autoconfiguration
RFC 2463 - ICMP IPv6
RFC 2474 - Differentiated Services (DiffServ)
Precedence
RFC 2597 - Assured Forwarding
RFC 2598 - Expedited Forwarding
RFC 2571 - SNMP Management
RFC 3046 - DHCP Relay Agent Information
Option
RFC 3376 - IGMP v3
RFC 3580 - 802.1X RADIUS
Standards IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3ah (100BASE-X single/multimode fiber only)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
100BASE-BX (SFP)
100BASE-FX (SFP)
100BASE-LX (SFP)
1000BASE-BX (SFP)
1000BASE-SX (SFP)
1000BASE-LX/LH (SFP)
1000BASE-ZX (SFP)
1000BASE-CWDM SFP 1470 nm
1000BASE-CWDM SFP 1490 nm
1000BASE-CWDM SFP 1510 nm
1000BASE-CWDM SFP 1530 nm
1000BASE-CWDM SFP 1550 nm
1000BASE-CWDM SFP 1570 nm
1000BASE-CWDM SFP 1590 nm
1000BASE-CWDM SFP 1610 nm
10GBASE-LR (SFP+)
10GBASE-SR (SFP+)
10GBASE-LRM (SFP+)
10GBASE-CX1 (SFP+)
RMON I and II standards
SNMP v1, v2c, and v3
General
Dimension (DxWxH) 13.07 x 17.7 x 1.73" (23.6 x 45 x 4.4 cm)
Weight 12 lb (5.4 kg)
Packaging Info
Package Weight 15.3 lb
Box Dimensions (LxWxH) 21.8 x 17.3 x 6.8"
