User manual Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L

Operating instructions and pdf manual for use - Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L User manual, User manual Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L, Cisco, Catalyst, 2960, 48, Port, 2, 10/100/1


User manual for Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L

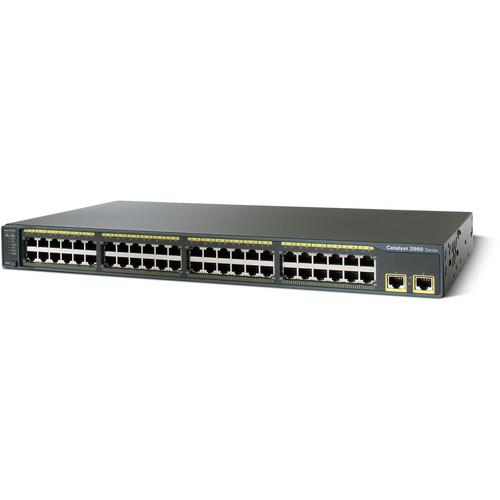

Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 800 USD
We recommend checking out our discussion threads on the Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Cisco.



User manual for the Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L

The user manual for the Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

The Catalyst 2960 48 Port 2 10/100/1000 Uplink Switch with LAN Base Image is your answer to a cost effective fixed-configuration access switch designed for enterprise, midmarket and branch office networks. The switch, is the leading Layer 2 edge, giving you a secured, sustainable, easy and a borderless network experience.
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco Catalyst 2960 48 Port 2 10/100/1000 Uplink WS-C2960-48TT-L:
Hardware Specification
Ports 48 Ethernet 10/100 ports
Uplinks 2 Ethernet 10/100/1000 ports TX
Mean Time Between Failures 243,277 hours
Bandwidth Forwarding bandwidth: 16 Gbps
Switching bandwidth*: 32 Gbps

*Switching bandwidth is full-duplex capacity.

Maximum Forwarding Rate 10.1 Mpps
Flash Memory 32 MB
Memory DRAM:64 MB
VLANs Max VLANs:255
VLAN IDs 4000
Maximum Transmission Unit Up to 9000 Bytes
Unicast MAC addresses Default/QoS/Dual: 8000
IPv4 IGMP groups Default/QoS/Dual: 255
IPv4 MAC QoS ACEs Default: 128
QoS:384
Dual: 0
IPv4 MAC security ACEs Default: 384
QoS:128
Dual:256
Environmental Requirements
Operating Temperature Up to 5000' (1500 m): 23 to 113ºF (-5 to 45ºC)

Up to 10,000' (3000 m): 23 to 104ºF (-5 to 40ºC)
Storage Temperature Up to 15,000' (4573 m): -13 to 158ºF (-25 to 70ºC)
Short-term exception At sea level*: 23 to 31ºF (-5 to 55ºC)

Up to 10,000' (3000 m)*: 23 to 113ºF (-5 to 45ºC)

Up to 13,000' (4000 m)*: 23 to 104ºF (-5 to 40ºC)

*Measured per ISO 7779 and declared per ISO 9296. Bystander positions operating mode at 25°C ambient.

Operating Altitude Up to 10,000' (Up to 3000 m)
Storage Altitude Up to 13,000' (Up to 4000 m)
Operating Relative Humidity 10 to 95% non condensing
Storage Relative Humidity 10 to 95% non condensing
Certifications
Agency & Safety Certifications UL 60950-1, Second Edition
CAN/CSA 22.2 No. 60950-1, Second Edition
TUV/GS to EN 60950-1, Second Edition
CB to IEC 60950-1 Second Edition with all country deviations
CE Marking
NOM (through partners and distributors)
Electromagnetic emissions certifications FCC Part 15 Class A
EN 55022 Class A (CISPR22)
EN 55024 (CISPR24)
AS/NZS CISPR22 Class A
CE
CNS13438 Class A
MIC
GOST
China EMC Certifications
Power Requirements
Current 1.3 to 0.8 A
Frequency 50 to 60 Hz
Power Rating 0.075 kVA
Input Voltage 100 to 240 VAC
DC input voltage (RPS input): 12V at 5 A
Measured Power Consumption
100 Percent Throughput 42 W
5 Percent Throughput 38 W
Management BRIDGE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONFIG-COPY-MIB
CISCO-CONFIG-MAN-MIB
CISCO-DHCP-SNOOPING-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-LAG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-POE-EXTENSIONS-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-PRODUCTS-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-SMI-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TC-MIB
CICSO-TCP-MIB
CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE
RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
IF-MIB
INET-ADDRESS-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
RFC1213-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
ePM MIB
CISCO-STACKWISE-MIB (2960-S)
Standards
RFC RFC 768 - UDP
RFC 783 - TFTP
RFC 791 - IP
RFC 792 - ICMP
RFC 793 - TCP
RFC 826 - ARP
RFC 854 - Telnet
RFC 951 - Bootstrap Protocol (BOOTP)
RFC 959 - FTP
RFC 1112 - IP Multicast and IGMP
RFC 1157 - SNMP v1
RFC 1166 - IP Addresses
RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
RFC 1305 - NTP
RFC 1492 - TACACS+
RFC 1493 - Bridge MIB
RFC 1542 - BOOTP extensions
RFC 1643 - Ethernet Interface MIB
RFC 1757 - RMON
RFC compliance:
RFC 1901 - SNMP v2C
RFC 1902-1907 - SNMP v2
RFC 1981 - Maximum Transmission Unit
(MTU) Path Discovery IPv6
RRC 2068 - HTTP
RFC 2131 - DHCP
RFC 2138 - RADIUS
RFC 2233 - IF MIB v3
RFC 2373 - IPv6 Aggregatable Addrs
RFC 2460 - IPv6
RFC 2461 - IPv6 Neighbor Discovery
RFC 2462 - IPv6 Autoconfiguration
RFC 2463 - ICMP IPv6
RFC 2474 - Differentiated Services (DiffServ)
Precedence
RFC 2597 - Assured Forwarding
RFC 2598 - Expedited Forwarding
RFC 2571 - SNMP Management
RFC 3046 - DHCP Relay Agent Information
Option
RFC 3376 - IGMP v3
RFC 3580 - 802.1X RADIUS
Standards IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3ah (100BASE-X single/multimode fiber only)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
100BASE-BX (SFP)
100BASE-FX (SFP)
100BASE-LX (SFP)
1000BASE-BX (SFP)
1000BASE-SX (SFP)
1000BASE-LX/LH (SFP)
1000BASE-ZX (SFP)
1000BASE-CWDM SFP 1470 nm
1000BASE-CWDM SFP 1490 nm
1000BASE-CWDM SFP 1510 nm
1000BASE-CWDM SFP 1530 nm
1000BASE-CWDM SFP 1550 nm
1000BASE-CWDM SFP 1570 nm
1000BASE-CWDM SFP 1590 nm
1000BASE-CWDM SFP 1610 nm
10GBASE-LR (SFP+)
10GBASE-SR (SFP+)
10GBASE-LRM (SFP+)
10GBASE-CX1 (SFP+)
RMON I and II standards
SNMP v1, v2c, and v3
General
Dimension (DxWxH) 13 x 17.7 x 1.73" (33.2 x 45 x 4.4 cm)
Weight 8 lb (3.6 kg)
Packaging Info
Package Weight 12.4 lb
Box Dimensions (LxWxH) 22.0 x 16.5 x 6.8"
