User manual Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9

Operating instructions and pdf manual for use - Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9 User manual, User manual Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9, Cisco, WAP371, Wireless-AC/N, Dual, Radio, Acces


User manual for Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

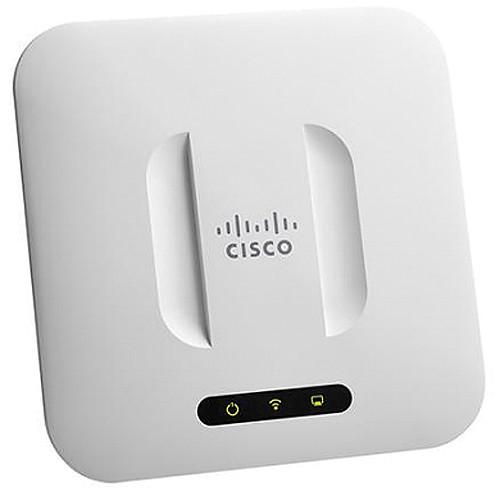

Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Access Points
  • Safety instructions
  • Startup and operation of the wireless access points
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 203 USD
We recommend checking out our discussion threads on the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9, which address similar problems with connecting and setting up Wireless Access Points Cisco.



User manual for the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9

The user manual for the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

The Cisco WAP371 Wireless-AC/N Dual Radio Access Point with Single Point Setup provides wireless network access for Wi-Fi enable devices. It connects to your wired router via an Ethernet cable and delivers 2.4 GHz and 5 GHz frequencies as well as data speeds up to 1300 Mbps. This access point features 802.11ac and 802.11a/b/g/n bands for allowing various devices to connect to your network. For easy management of multiple WAP371 access points, it comes with an integrated web-based GUI software wizard that helps you configure and secure a group of access points from a single point rather than configuring each access point individually. These flexible solutions let you connect dozens of employees, and can scale to accommodate additional users and changing business needs.

The WAP371 Wireless-AC/N Dual Radio Access Point features 3x3 multiple-input multiple-output (MIMO) technology with three spatial streams, which allows it to provide fast and reliable performance. Furthermore, intelligent QoS lets you prioritize bandwidth-sensitive traffic for voice over IP (VoIP) and video applications. You can easily mount the access point to a wall or ceiling for better Wi-Fi coverage, and the gigabit Ethernet LAN jack with PoE facilitates flexible installation and reduces cabling and wiring costs. To safeguard sensitive data, the access point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise that encode all your wireless transmissions with encryption. In addition, 802.1X RADIUS authentication helps keep unauthorized users out. Included with the access point are a ceiling/wall mounting kit, CD-ROM disc, Ethernet cable, and a limited lifetime warranty.
If you own a Cisco wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9:
Specifications
Standards IEEE 802.11ac
802.11n
802.11g
802.11b
802.3af
802.3u
802.1X (security authentication)
802.1Q (VLAN)
802.1D (Spanning Tree)
802.11i (WPA2 security)
802.11e (wireless QoS)
IPv4 (RFC 791)
IPv6 (RFC 2460)
Port LAN Gigabit Ethernet auto-sensing
10/100/1000 Ethernet with support for 802.3af/at PoE
Power port for AC adapter
Cabling Type Category 5e or better
Antennas Internal antennas optimized for installation on a wall or ceiling
LED Indicators Power
WLAN (wireless)
LAN (Ethernet)
Operating System Linux
Button Reset
Security Lock Slot Slot for Kensington lock
Network VLAN support
1 management VLAN plus 16 VLANs for SSIDs
802.1X supplicant
SSID-to-VLAN mapping
Auto channel selection
Spanning tree
Load balancing
IPv6
  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
Layer 2 - 802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN
Security WPA/WPA2
Access control
HTTPS secure management
SSID broadcast
Rogue access point detection
Mounting Mounting bracket included for easy ceiling or wall mounting
QoS Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS
Wireless Throughput Up to 950 Mbps data rate (real-world throughput will vary)
Up to 64 connective users, 30 active users per radio
Access Point Management Single Point Setup 8 access points per cluster 240 active clients per cluster
Configuration Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management Management protocols: Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management
Event logging: Local, remote syslog, email alerts
Network diagnostics: Logging and packet capture
Web firmware upgrade: Firmware upgradable through web browser, imported/exported configuration file
Dynamic Host Configuration Protocol (DHCP): DHCP client
IPv6 host
HTTP redirect
Frequency Dual concurrent radios (2.4 and 5 GHz)
Radio and Modulation Type Dual radio, orthogonal frequency division multiplexing (OFDM)
WLAN 802.11n/ac
3x3 multiple-input multiple-output (MIMO) with 3 spatial streams at 5 GHz
2x2 MIMO with 2 spatial streams at 2.4 GHz
20-, 40-, and 80-MHz channels for 802.11ac
20- and 40-MHz for 802.11n
PHY data rate up to 1.6 Gbps
802.11 dynamic frequency selection (DFS)
Data Rates Supported 802.11a/b/g: 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
802.11n: 6.5 to 450 Mbps
  • 20-MHz bandwidth: MCS 0-15 for supported data rates
  • 40-MHz bandwidth: MCS 0-15 for supported data rates
802.11ac: 6.5 to 1300 Mbps
  • 20-MHz bandwidth: MCS 0-9 for supported data rates
  • 40-MHz bandwidth: MCS 0-9 for supported data rates
  • 80-MHz bandwidth: MCS 0-9 for supported data rates
Frequency Band and Operating Channels 802.11b
2412
2437
2462
802.11g
2412
2437
2462
802.11n 20 MHz (2.4-GHz Band)
2412
2437
2462
802.11n 40 MHz (2.4-GHz Band)
2422
2437
2452
802.11a
5180
5320
5500
5700
802.11n 20 MHz (5-GHz Band)
5180
5320
5500
5700
5825
802.11n 40 MHz (5-GHz Band)
5190
5510
5795
Nonoverlapping Channels 2.4 GHz
802.11b/g 20 MHz: 3
802.11n 20 MHz: 3

5 GHz
802.11a 20 MHz: 21
802.11n 20 MHz: 21, 40 MHz: 9
802.11ac 20 MHz: 21, 40 MHz: 9, 80 MHz: 5
Transmitted Power 2.4 GHz
  • 802.11b: 17.0 +/- 1.5 dBm @ CH6, all rates
  • 802.11g: 17.0 +/- 1.5 dBm @ CH6, 6 Mbps
  • 802.11g: 15.0 +/- 1.5 dBm @ CH6, 54 Mbps
  • 802.11n (HT20): 17.0 +/- 1.5 dBm @ CH6, MCS0
  • 802.11n (HT20): 14.0 +/- 1.5 dBm @ CH6, MCS15
  • 802.11n (HT40): 12.0 +/- 1.5 dBm @ CH6, all rates
5 GHz UNII-1 (5150 to 5250 MHz)
  • 802.11a: 10 +/- 1.5 dBm @ all rates
  • 802.11ac (HT20): 10 +/- 1.5 dBm @ all rates
  • 802.11ac (HT40): 11 +/- 1.5 dBm @ all rates
  • 802.11ac (HT80): 11 +/- 1.5 dBm @ all rates
5 GHz UNII-2 (5250 to 5350 MHz)/UNII-2 Extended (5470 to 5725 MHz)
  • 802.11a: 16.0 +/- 1.5 dBm @ 6 Mbps
  • 802.11a: 15.0 +/- 1.5 dBm @ 54 Mbps
  • 802.11ac (HT20): 16.0 +/- 1.5 dBm @ MCS0
  • 802.11ac (HT20): 13.0 +/- 1.5 dBm @ MCS9
  • 802.11ac (HT40): 18.0 +/- 1.5 dBm @ MCS0
  • 802.11ac (HT40): 13.0 +/- 1.5 dBm @ MCS9
  • 802.11ac (HT80): 13.0 +/- 1.5 dBm @ all rates
5 GHz UNII-3 (5725 to 5850 MHz)
  • 802.11a: 18.0 +/- 1.5 dBm @ 6 Mbps
  • 802.11a: 15.0 +/- 1.5 dBm @ 54 Mbps
  • 802.11ac (HT20): 18.0 +/- 1.5 dBm @ MCS0
  • 802.11ac (HT20): 13.0 +/- 1.5 dBm @ MCS9
  • 802.11ac (HT40): 18.0 +/- 1.5 dBm @ MCS0
  • 802.11ac (HT40): 13.0 +/- 1.5 dBm @ MCS9
  • 802.11ac (HT80): 18.0 +/- 1.5 dBm @ MCS0
  • 802.11ac (HT80): 13.0 +/- 1.5 dBm @ MCS9
Wireless (Features) Wireless distribution system (WDS)
Fast roaming
16 Multiple SSIDs
Wireless VLAN map
WLAN security
Wi-Fi Multimedia (WMM) with unscheduled automatic power save
Operating Modes Access Point mode, WDS Bridging, Workgroup Bridge mode
Power Options IEEE 802.3at Ethernet switch
Cisco power injector: SB-PWR-INJ2-xx
AC adapter: SB-PWR-12V2A-xx
Peak power: 17W
Compliance Safety
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
IEC 60950-1
EN 60950-1

Radio Approvals
FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
AS/NZS 4268.2003 (Australia and New Zealand)

EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
EN 301.489-1 and -17 (Europe)
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 158°F / -20 to 70°C
Operating Humidity: 10 to 85% non-condensing
Storage Humidity: 5 to 90% non-condensing
System Memory 64 MB RAM
32 MB flash
Minimum Requirements Switch/router with PoE support, PoE injector, or AC power adapter
Web-based configuration: Java-enabled web browser
Dimensions (WxDxH) 9.05 x 9.05 x 1.69" / 229.87 x 229.87 x 42.93 mm
Weight 1.81 lb / 0.82 kg
Packaging Info
Package Weight 2.3 lb
Box Dimensions (LxWxH) 11.1 x 10.3 x 3.4"
The user manual for the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9 can be downloaded in .pdf format if it did not come with your new wireless access points, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco wireless access pointss, where you can use our link to download the user manual for the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9.

The user manual lists all of the functions of the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9, all the basic and advanced features and tells you how to use the wireless access points. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco WAP371 Wireless-AC/N Dual Radio Access Point WAP371-A-K9. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Wireless Access Points.
