User manual Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX

Operating instructions and pdf manual for use - Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX User manual, User manual Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX, Cool-Lux, CL2000TSX, Tungsten, PRO, Studio, Spot, Light,


User manual for Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX

Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX
  • Manufacturer: Cool-Lux
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your Cool-Lux
  • Settings and expert assistance
  • Contact Cool-Lux service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX, which address similar problems with connecting and setting up LED Lights Cool-Lux.



User manual for the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX

The user manual for the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

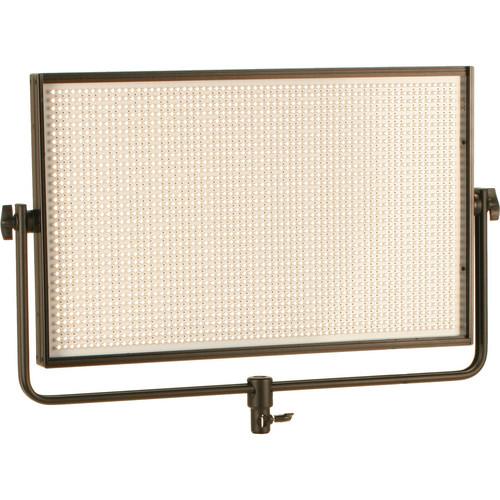

The CL2000TSX Tungsten PRO Studio Spot Light with DMX from Cool-Lux is a 27.5 x 19 x 2.75" LED panel designed for professional video, broadcast and still applications. The light features 3,200K tungsten color balance with a high CRI of >95 for precise color rendering and pleasing flesh tones. It outputs 1,400 fc at 3' (the equivalent of a 2,000W flood hot light) while drawing only 120W. Light intensity can be adjusted from 100-0% without color shifting locally using the rear-panel dial or remotely via DMX. The CL2000TSX's 30 degree beam angle ensures accurate direction of the fixture's output that can be contoured and controlled via optional barndoors. Post-purchase benefits include reduced operating costs thanks to the CL2000TSX's cool running LEDs that require far less air-conditioning in the studio, virtually no maintenance, and with a 50,000 hour life, no re-lamping and downtime.
If you own a Cool-Lux led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX:
Material of Construction Aluminum
Light Source 2,048 LEDs
Rating 2,000W Spot hot light equivalent
Power Consumption 120W
Color Range 3,200K Tungsten balance
CRI >95
Dimming 100-0%
Beam Angle 30° Spot
DMX Yes
Photometrics 15,000 lux/1,400 fc @ 3.0' (1.0 m)
4,200 lux/400 fc @ 6.0' (2.0 m)
1,840 lux/180 fc @ 9.0' (3.0 m)
Operating Voltage 100-240VAC, 50/60Hz
Mount 5/8" (16 mm)
Dimensions With yoke: 27.5 x 19 x 2.75" (69.85 x 48.26 x 6.98 cm)
Without yoke: 24.87 x 14.87 x 2.75" (63.16 x 37.76 x 6.98 cm)
Weight With yoke: 9.1 lb (4.12 kg)
Without yoke: 7.9 lb (3.58 kg)
The user manual for the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cool-Lux users keep a unique electronic library for Cool-Lux led lightss, where you can use our link to download the user manual for the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX.

The user manual lists all of the functions of the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cool-Lux service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cool-Lux CL2000TSX Tungsten PRO Studio Spot Light with DMX. User manuals are also available on the Cool-Lux website under Lighting & Studio - Continuous Lighting - LED Lights.
