User manual for the Corsair Air Series AF120 LED Blue Quiet Edition CO-9050016-BLED
The user manual for the Corsair Air Series AF120 LED Blue Quiet Edition CO-9050016-BLED provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Fans & CPU Coolers.

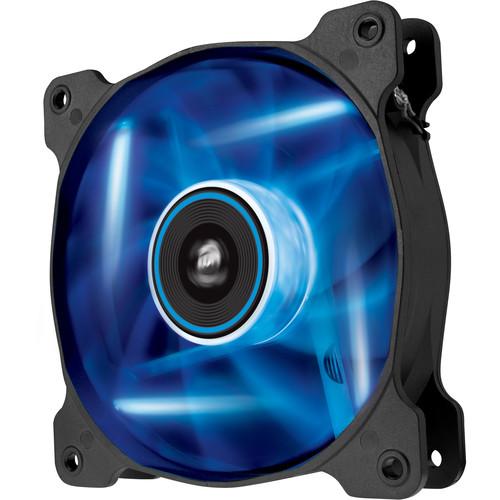

The Air Series AF120 LED Blue Quiet Edition High Airflow 120 mm Fan from Corsair provides two case fans for cooling your computer. They perform optimally in unrestricted spaces with at least 1.2" (3 cm) of clearance. The AF120 is ideal for mounting at the rear or at the top of your PC case as exhaust fans for your motherboard, CPU, graphics cards, and other components that fill the case with heat. The AF120 works equally well as unrestricted intake fans for areas like side panels or bottom intakes. The AF120 Quiet Edition also runs at a low noise level of 21 dBA without sacrificing cooling performance. Moreover, these fans illuminate the inside of your computer with a blue color.
|
If you own a Corsair fans & cpu coolers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Corsair Air Series AF120 LED Blue Quiet Edition CO-9050016-BLED in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Corsair Air Series AF120 LED Blue Quiet Edition CO-9050016-BLED:
| Performance | Performance at 12 V
Airflow: 52.19 CFM
Static Pressure: 0.75 mm / H20
Sound Level: 25.2 dBA
Speed: 1500 rpm
Power Draw: 0.4 A | | Operating Voltage | 7 - 12 V | | System Requirements | Motherboard with an open standard 3-pin fan connector | | Dimensions | 4.7 x 0.9" / 120 x 25 mm | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.299 x 4.882 x 2.126" | |
