User manual Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE

Operating instructions and pdf manual for use - Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE User manual, User manual Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE, Crown, Audio, CTs-2000, Two-Channel, Power, Ampl


User manual for Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE

Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE
  • Manufacturer: Crown Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - 70-Volt Amplifiers
  • Safety instructions
  • Startup and operation of the 70-volt amplifiers
  • Tips for setting up your Crown Audio
  • Settings and expert assistance
  • Contact Crown Audio service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE, which address similar problems with connecting and setting up 70-Volt Amplifiers Crown Audio.



User manual for the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE

The user manual for the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - 70-Volt Amplifiers.

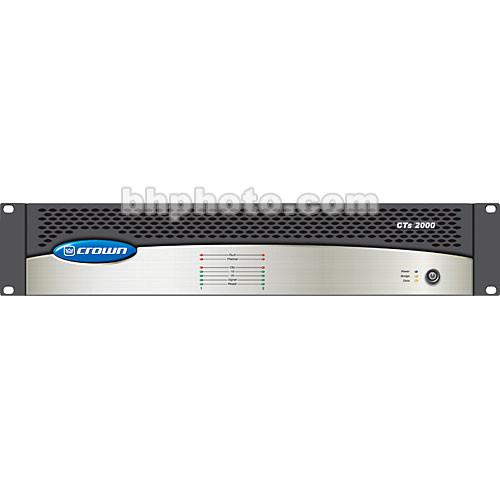

The Crown CTs-2000 is a 2-Channel power amplifier housed in a 2-space rackmount frame, offering power levels and features meant to serve fixed installation sound applications. This amplifier is notable for a completely independent array of switches and indicators for each channel, including high and low impedance operation, input sensitivity, high pass filters, and an advanced level of well designed overload protection circuitry. This unit includes a PIP-LITE module for networked controlling via HiQnet and System Architect or TCP/IQ and IQwic.
If you own a Crown Audio 70-volt amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE:
Output Power 2 ohm Dual (Per Channel): 1000W
4 ohm Dual (Per Channel): 1000W
8 ohm Dual (Per Channel): 1000W
16 ohm Dual (Per Channel): 625W
70V Dual (Per Channel): 1000W
100V Dual (Per Channel): 1000W
4 ohm Bridge: 2000W
8 ohm Bridge: 2000W
16 ohm Bridge: 2000W
140V Bridge: 2000W
200V Bridge: 2000W
Damping Factor 10 Hz - 100 Hz:>3000
Input Sensitivity Switchable:
1.4V(8/4 Ohms)
26 dB Gain:
2.46V(4 Ohm Load)
3.47V (8 Ohm Load)
1.4V(70V)
Input Impedance 10 kOhms balanced(nominal), 5 kOhms unbalanced(nominal)
Gain 63.9:1 (36 dB)
Frequency Response 20 Hz - 20 kHz +/-0.25 dB @ 1 Watt
Signal-to-Noise Ratio 105 dB A-Weighted, below rated power(20 Hz - 20 kHz)
Total Harmonic Distortion (THD) < 0.35%, at full rated power (20 Hz - 20 kHz)
Input Connections 2 x Balanced 3-Pin Terminal Block Connectors(one per channel)
Output Connectors 1 x 4-Pole Terminal Strip(Ch 1, Ch 2)
Controls Front Panel 1 x Power Switch
Controls (Rear) 1 x Reset Switch
1 x Rotary Channel Level Control(per channel)
1 x 2-Position Operation Mode Switch
1 x Highpass Filter Switch(per channel)
1 x "Y" Input Switch
1 x Interior 3-Position Input Sensitivity Switch(per channel)
Indicators Front Panel:
1 x Yellow LED Bridge Mode Indicator
1 x Green LED Ready Indicator
3 x Green LED Signal Indicators(per channel)
1 x Red LED Clip Indicator(per channel)
1 x Red LED Thermal Indicator(per channel)
1 x Red LED Fault Indicator
1 x Yellow LED Data Indicator(per channel)
1 x Blue LED Power Indicator
Back Panel: No Indicators on Back Panel
Cooling Continuously Variable Speed Fans
Ventilation Grille(Front),Cooling Vents(Back)
Front-to-Rear forced airflow
Power Consumption 35 Watts (120 VAC Mains)
Dimensions (WxHxD) 19 x 3.5 x 14.25" (483 x 89 x 362mm)
Weight 27.0 lb (12.2 kg)
Specialties Variable Speed Fan Cooling
Thermal Level Control
JTS Limiting Circuitry
Packaging Info
Package Weight 30.36 lb
Box Dimensions (LxWxH) 22.0 x 20.0 x 8.0"
The user manual for the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE can be downloaded in .pdf format if it did not come with your new 70-volt amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Crown Audio users keep a unique electronic library for Crown Audio 70-volt amplifierss, where you can use our link to download the user manual for the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE.

The user manual lists all of the functions of the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE, all the basic and advanced features and tells you how to use the 70-volt amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Crown Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Crown Audio CTs-2000 - Two-Channel Power Amplifier CTS2000LITE. User manuals are also available on the Crown Audio website under Pro Audio - Installation Sound - 70-Volt Amplifiers.
