User manual for Crown Audio XLi 3500 Stereo Power Amplifier XLI3500
- Manufacturer: Crown Audio
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - Power Amplifiers
- Safety instructions
- Startup and operation of the power amplifiers
- Tips for setting up your Crown Audio
- Settings and expert assistance
- Contact Crown Audio service
- Troubleshooting
- Warranty information
- Price: 649 USD

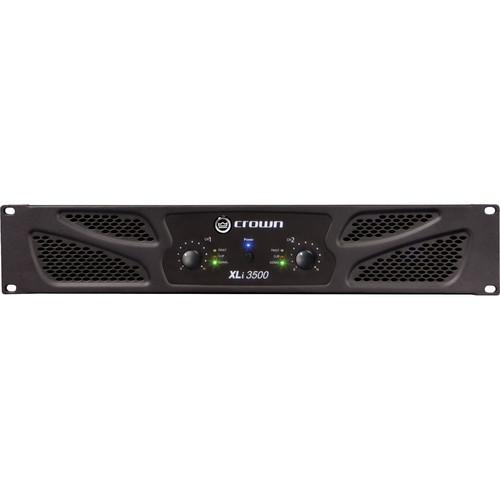

Click to enlarge image
|
We recommend checking out our discussion threads on the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500,
which address similar problems with connecting and setting up Power Amplifiers Crown Audio.
|
User manual for the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500
The user manual for the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.
Designed for musicians, DJs, entertainers, houses of worship, discos, and other venues, the Crown XLi 3500 Stereo Power Amplifier feature both RCA and XLR inputs as well as Speakon and binding post outputs. The amplifier includes a user selectable input sensitivity of 0.755V or 1.4V, stereo/parallel-bridge-mono modes, power/fault/signal presence/clip LED indicators, forced air cooling, and protection against shorts, no-load, on/off thumps, and interference from radio frequencies in the environment.
Drawing from over six decades of experience in building amplifiers, the unit is capable of delivering 1350W per channel at 4 ohms, 1000W per channel at 8 ohms, and 2700W at 8 ohms in bridged-mono mode..
|
If you own a Crown Audio power amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500:
| Input | 2x electronically balanced XLR-3F
2x electronically balanced RCA | | Output | 2x binding post
2x Speakon outputs | | THD | <0.5% from 20 to 20,000 Hz | | Intermodulation Distortion | ≤ 0.35% (60 Hz and 7,000 Hz at 4:1 from full rated output to -30 dB) | | Slew Rate | >10 V/us | | Voltage Gain | 36 dB | | Damping Factor | 8 Ohm, 10 to 400 Hz: > 200 | | Signal to Noise Ratio | > 100 dB | | Crosstalk | Below rated power: -75 dB
20 to 1,000 Hz:-59 dB | | Input Sensitivity | For full rated power at 8 ohms: 0.775 or 1.4 V | | Input Impedance | Nominal balanced: 20 kilOhm
Unbalanced: 10 kilOhm | | AC Line Power | (+10%) 120V~60 Hz
220V~50/60 Hz
230-240V~50/60 Hz | | IEC | 15 A | | Dimensions | 19 x 3.5 x 14.4" (48.3 x 8.9 x 36.6 cm) | | Weight | 43.0 lb (19.5 kg) | | Package Weight | 44.0 lb | | Box Dimensions (LxWxH) | 22.0 x 21.0 x 5.5" | |
The user manual for the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500 can be downloaded in .pdf
format if it did not come with your new power amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Crown Audio users keep a unique electronic library
for Crown Audio power amplifierss,
where you can use our link to download the user manual for the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500.
The user manual lists all of the functions of the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500,
all the basic and advanced features and tells you how to use the power amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Crown Audio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Crown Audio XLi 3500 Stereo Power Amplifier XLI3500. User manuals are also
available on the Crown Audio website under Pro Audio - Live Sound - Power Amplifiers.
