User manual Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000

Operating instructions and pdf manual for use - Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000 User manual, User manual Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000, Crown, Audio, XLS, 1000, DriveCore, Stereo, Power,


User manual for Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000
  • Manufacturer: Crown Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Crown Audio
  • Settings and expert assistance
  • Contact Crown Audio service
  • Troubleshooting
  • Warranty information
  • Price: 229 USD
We recommend checking out our discussion threads on the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000, which address similar problems with connecting and setting up Power Amplifiers Crown Audio.



User manual for the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000

The user manual for the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

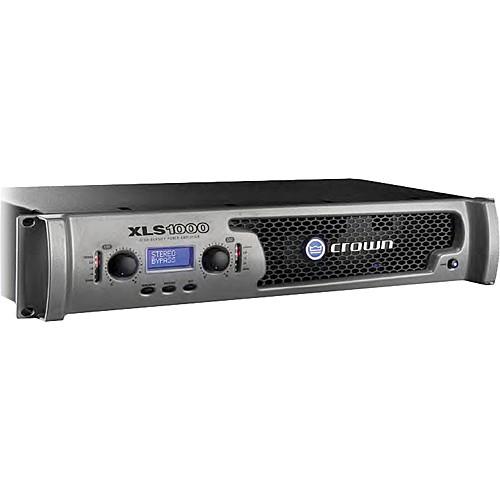

The XLS 1000 from Crown Audio is a professional-quality stereo power amplifier that offers terrific versatility and audio quality in an affordable and lightweight rackmount design. The amplifier uses DriveCore technology, a proprietary hybrid analog-digital integrated circuit that drives the internal Class-D electronics. This technology allows the amplifier to consistently provide great audio, regardless of unstable AC lines, fluctuating power, and other power issues.

The PureBand Crossover System allows you to set the crossover point anywhere between 50Hz and 3kHz for tremendous flexibility. 4th order Linkwitz-Riley filters provide a seamless transition between high and low drivers. Crown Audio's Peakx limiter technology has been specifically designed to achieve high SPL levels with minimal distortion and shutdowns, allowing the maximum amount of safe power to be delivered to your speakers. You can also turn the limiters on and off easily from the front panel.

With internal technology allowing so much audio flexibility, you need just as much flexibility when connecting to an audio system. XLR, 1/4", and RCA inputs, along with Speakon and Binding Post outputs make it easy to connect the amplifier to practically any system you encounter. Individual level controls on the front panel let you adjust each channel separately. The amplifier can also operate in stereo or bridged-mono mode for additional versatility. Forced-air cooling fans keep internal components running smoothly, and LED indicators show you vital data at a glance.
If you own a Crown Audio power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000Download user manual for Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000
(PDF file, 6.73 MB)
Additional parameters of the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000:
Specifications
    Power Rating 215W/Channel @ 8 Ohms Stereo
    350W/Channel @ 4 Ohms Stereo
    550W/Channel @ 2 Ohms Stereo
    700W @ 8 Ohms Bridged
    1100W @ 4 Ohms Bridged
    Damping Factor > 200
    Input Sensitivity Not Specified by Manufacturer
    Input Impedance 20 kOhms, Balanced
    10 kOhms, Unbalanced
    Frequency Response Not Specified by Manufacturer
    Signal-to-Noise Ratio Not Specified by Manufacturer
    Total Harmonic Distortion (THD) < 0.5%
    Input Connectors 2 x XLR Inputs
    2 x 1/4" Inputs
    2 x RCA Inputs
    1 x AC Power Input
    Output Connectors 2 x Speakon Outputs
    2 x Binding Post Outputs (2 Posts Each)
    Controls 1 x Power Switch
    2 x Level Controls
    Indicators 1 x LCD Screen
    LED Indicators
    Cooling Forced-Air
    Power Requirements 120 V AC, 60 Hz
    Dimensions (WxHxD) 19 x 3.5 x 7.7" (483 x 89 x 196mm)
    Weight 8.6 lbs (3.9kg)
    Packaging Info
    Package Weight 11.5 lb
    Box Dimensions (LxWxH) 22.0 x 12.0 x 6.0"
    The user manual for the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Crown Audio users keep a unique electronic library for Crown Audio power amplifierss, where you can use our link to download the user manual for the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000.

    The user manual lists all of the functions of the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Crown Audio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Crown Audio XLS 1000 DriveCore Stereo Power Amplifier XLS1000. User manuals are also available on the Crown Audio website under Pro Audio - Live Sound - Power Amplifiers.
