User manual Crown Audio XLS 2002 Stereo Power Amplifier XLS2002

Operating instructions and pdf manual for use - Crown Audio XLS 2002 Stereo Power Amplifier XLS2002 User manual, User manual Crown Audio XLS 2002 Stereo Power Amplifier XLS2002, Crown, Audio, XLS, 2002, Stereo, Power, Amplifier, XLS2002,


User manual for Crown Audio XLS 2002 Stereo Power Amplifier XLS2002

Crown Audio XLS 2002 Stereo Power Amplifier XLS2002
  • Manufacturer: Crown Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Crown Audio
  • Settings and expert assistance
  • Contact Crown Audio service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD
Crown Audio XLS 2002 Stereo Power Amplifier XLS2002 Crown Audio XLS 2002 Stereo Power Amplifier XLS2002 Crown Audio XLS 2002 Stereo Power Amplifier XLS2002 Crown Audio XLS 2002 Stereo Power Amplifier XLS2002
Click to enlarge image

We recommend checking out our discussion threads on the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002, which address similar problems with connecting and setting up Power Amplifiers Crown Audio.



User manual for the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002

The user manual for the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

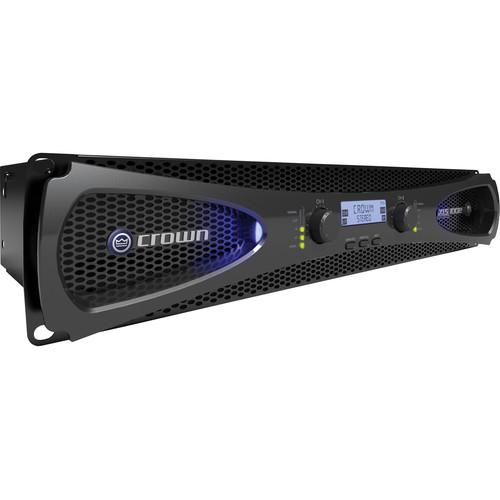

The Crown XLS 2002 Stereo Power Amplifier offers 650W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.

For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both SpeakOn and binding post connectors.

You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.
If you own a Crown Audio power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002:
Sensitivity 1.4 Vrms
Amplifier Power 1050 W at 2 ohm per channel
650 W at 4 ohm per channel
375 W at 8 ohm per channel
2100 W at 4 ohm bridged
1300 W at 8 ohm bridged
Frequency Response At 1 W, 20 to 20,000 Hz: +0 dB, -1 dB
Signal to Noise Ratio >103 dB (at 0.775 Vrms sensitivity, Signal to Noise is 6 dB lower)
THD >0.5%
Intermodulation Distortion <0.3%
Damping Factor >200
Crosstalk At 1,000 Hz: >85 dB
At 20,000 Hz: >55 dB
Dimensions (W x H x D) 19 x 3.5 x 10.7" (48.3 x 8.9 x 27.2 cm)
Weight 10.8 lb (4.9 kg)
Packaging Info
Package Weight 14.6 lb
Box Dimensions (LxWxH) 21.6 x 14.8 x 6.1"
The user manual for the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Crown Audio users keep a unique electronic library for Crown Audio power amplifierss, where you can use our link to download the user manual for the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002.

The user manual lists all of the functions of the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Crown Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Crown Audio XLS 2002 Stereo Power Amplifier XLS2002. User manuals are also available on the Crown Audio website under Pro Audio - Live Sound - Power Amplifiers.
