User manual for the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A

The user manual for the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Expansion Chassis.

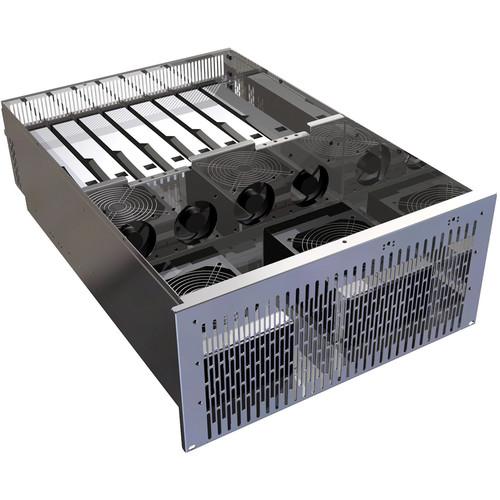

The Xpander Rackmount 16 5U Gen 2 PCIe Expansion Enclosure from Cubix provides four Main Interface Boards (MIBs), each connected to a host with a PCIe x16 cable and four PCIe x16 slots for a total of 16 single-slot GPUs or 8 double-slot GPUs with top-connected auxiliary power cables. The host must have at least one PCIe x16 expansion slot available for the Host Interface Controller (HIC). Connect each MIB to one of four HICs in one host or each MIB to a HIC in each of four host computers. Each MIB inside the Rackmount 16 enclosure connects to one HIC in one host computer.
If you own a Cubix expansion chassis and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A:
Jacks/Slots
Expansion Slots PCIe Gen 2 x16
Number of Slots (Standard) 4 x slots in each of 4 x MIBs for a total of 16 x slots
Form Factor Support
Double-Wide 8 x Full-height, full-length controllers or adapters in 4 x MIBs
Single-Wide 16 x Full-height, full-length controllers or adapters in 4 x MIBs
Cable
Connecting Cable External PCIe cable
Connector Type (Standard) x16, 136-pin
Length Standard 6.6' (2.0 m)
Connector Duty Cycle 250 mating cycles maximum per connector
PCIe x16
PCIe x16 Host Adapter Install in a PCIe x16 slot
PCIe Gen 2 Slot 80.0 Gb/s data transfer rate (theoretical)
PCIe Gen 1 Slot 40.0 Gb/s data transfer rate (theoretical)
LCD Panel
Front Panel LCD MIB Select: Left button
Main Menu: Center button
Sub Menu: Right button
Cubix Corporation MIB assembly and revision
Management firmware revision
Power Supply Status Standard main power
Temperature Status 3 x Sensor readouts in degrees Centigrade (C)
Status Fan status, voltage percent (%) speed
PCIe Link Status x16 cable connected
2.5 Gb/s or 5.0 Gb/s x16 link speed
x16 cable Connected or not connected status
Slot 1 - 4 x16 Transfer Rate PCIe Gen 2: 5.0 Gb/s x16 = 80 Gb/s (theoretical)
PCIe Gen 1: 2.5 Gb/s x16 = 40 Gb/s (theoretical)
LCD Panel Backlight Toggle on/off using right button
Panel
Rear Panel Power input receptacles
Adapter Ports On installed controllers or adapters (if available)
Receptacle 1-2 (Right) Controls MIBs 1 and 2 (rear)
Receptacle 3-4 (Left) Controls MIBs 3 and 4 (rear)
Fans
Cooling Fans 4 x Fans run at 112 cfm (cubic feet per minute) (maximum)
Xpander Power Up Fans are full-on for 10 seconds
Fan Speed 77 to 122°F (25 to 50°C) in gradual, linear progression
Normal Operation D1 LED = 1 x Pulse of 10 ms on for every 700 ms off
Error Indication D1 LED = 4 x Pulses of 10 ms on for every 700 ms off
Error Conditions 1: No fan tachometer
2: No temperature sensor connected
Power
AC Power Supply, 4 MIBs 4 x Single-phase, auto-ranging, 100 - 240 VAC, 6.0 - 3.5 A, 50/60 Hz
Total output power for each is not to exceed 750 W each
Auxiliary Power Cables 2 x Sets of 6-pin + 2 x sets of 8-pin for each of 4 x power supplies
General
Temperature 32 to 86°F (0 to 30°C)
Humidity 5 to 80%, non-condensing
Dimensions (WxHxD) 19.00 x 8.75 x 24.50" (48.26 x 22.23 x 62.23 cm)
Weight 55.0 lb (24.9 kg)
The user manual for the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A can be downloaded in .pdf format if it did not come with your new expansion chassis, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cubix users keep a unique electronic library for Cubix expansion chassiss, where you can use our link to download the user manual for the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A.

The user manual lists all of the functions of the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A, all the basic and advanced features and tells you how to use the expansion chassis. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cubix service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion XPRM-X16-844A. User manuals are also available on the Cubix website under Computers & Solutions - Computer Components - Expansion Chassis.
