User manual for the D-Link DGS-1210-28 28-Port Gigabit Smart Switch DGS-1210-28
The user manual for the D-Link DGS-1210-28 28-Port Gigabit Smart Switch DGS-1210-28 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

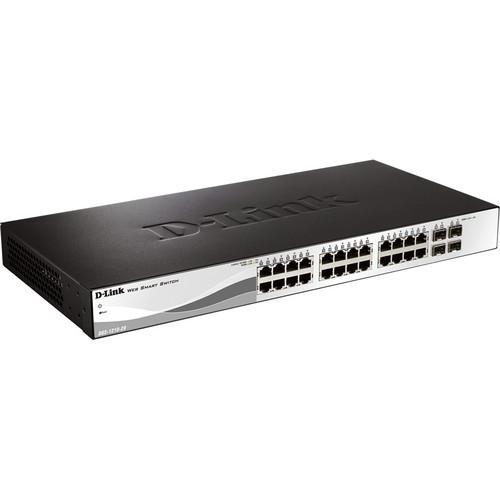

The D-Link DGS-1210-28 28-Port Gigabit Web Smart Switch with 4 Gigabit SFP Ports features D-Link Green 3.0 technology. The switch complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configuration features ensure that your network remains protected after an upgrade from IPv4 to IPv6. By offering multiple management options, this switch allows quick deployment, infrastructure expansion, and seamless upgrades.
Targeting small- and medium-sized businesses, the DGS-1210 Series Web Smart switch provides functionality, security, and manageability. The switch supports twenty-four 10/100/1000BASE-T ports, and also supports 4 Gigabit SFP ports for optical connections using multimode or single-mode SFP transceivers.
If you own a D-Link network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the D-Link DGS-1210-28 28-Port Gigabit Smart Switch DGS-1210-28 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the D-Link DGS-1210-28 28-Port Gigabit Smart Switch DGS-1210-28:
UTP CAT5 & 5e EIA/TIA-568 100 Ω STP 328.1' (100.0 m) maximum
Full/Half Duplex
Full / half duplex for 10 / 100 Mb/s speeds Full duplex for Gigabit speed
Media Interface Exchange
Auto MDI / MDI-X adjustment for all twisted-pair ports
Switching Capacity
56 Gb/s
Transmission Method
Store-and-forward
MAC Address Table Size
16,000 entries per device
MAC Address Update
Up to 256 static MAC entries Enable / disable auto-learning of MAC addresses
Packet Forwarding Rate
41.7 Mp/s Maximum: 64 bytes
Packet Buffer Memory
1 MB per device
AC Input
100 to 240 VAC, 50 / 60 Hz internal universal power supply
Power Consumption
Maximum: 16.81 W Standby: 5.9 W / 110 V, 6.42 W / 240 V
Acoustics
0 dBA
Heat Dissipation
57.36 BTU/hour
Diagnostic LEDs
Power (per device) Link / Activity / Speed (per 10 / 100 / 1000 Mb/s port) Link / Activity (per SFP port)
Layer 2 Features
MAC address table with 16,000 entries 802.3x flow control and HOL blocking prevention IGMP v1 / v2 Snooping: IGMP per VLAN Supports 256 IGMP groups, at least 64 static multicast addresses, and IGMP Snooping Querier Spanning Tree Protocol: 802.1D STP and 802.1w RSTP Loopback Detection 802.3ad Link Aggregation: Maximum 14 groups per device / 8 ports per group Port Mirroring: One-to-one, many-to-one, and supports mirroring for transmitter/receiver/both Multicast Filtering: Forwards and filters all unregistered groups LLDP, LLDP-MED
VLAN
802.1Q VLAN VLAN Group: Maximum 256 static VLAN groups and 4,094 VIDs Management, Asymmetric, and Auto Surveillance VLAN Auto Voice VLAN: Maximum 10 user-defined OUI and 8 default OUI
QoS
802.1p QoS (Quality of Service) 4 queues per port Strict and WRR (Weighted Round Robin) queue handling CoS based on 802.1p Priority Queues, DSCP, ToS1, TCP / UDP port number, and IPv6 traffic class Port-based bandwidth control (ingress / egress, minimum granularity 64 kb/s)
MTBF
236,739 hours
Access Control List
Maximum 50 profiles and 240 rules shared by profiles Single or multiple ports (each rule) ACL based on MAC address, IPv4 address (ICMP / IGMP / TCP / UDP), IPv6 address (ICMP / TCP / UDP)1, 802.1p priority, DSCP, Ethertype, and IPv6 traffic class ACL Actions: Permit and deny
Security
Port Security: Supports up to 64 MAC addresses per port Broadcast / multicast / unicast storm controlv Static MAC D-Link Safeguard Engine DHCP server screening Trusted host ARP Spoofing prevention: Maximum 64 entries SSL: Supports v1 / v2 / v3 and IPv4 / IPv6 Traffic Segmentation Smart Binding Supports 512 Entries of IP-MAC-Port Binding: Discover connected devices and click to bind, inspect ARP packets and / or IP packets, supports DHCP Snooping
Note:IPv6 management and configuration is supported with Rev B hardware and firmware v3.10 and higher.
