User manual for Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L

Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Wide Formats)
  • Safety instructions
  • Startup and operation of the electric screens (wide formats)
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L, which address similar problems with connecting and setting up Electric Screens (Wide Formats) Da-Lite.



User manual for the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L

The user manual for the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Wide Formats).

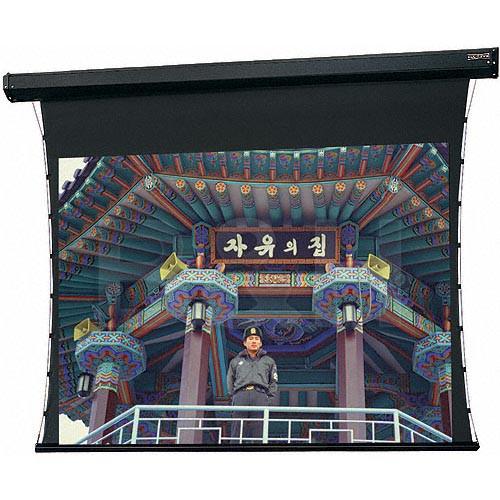

The Dalite 87 x 139" Cosmopolitan Electrol Motorized Projection Screen will be a great choice for educational or corporate use - especially when you are not able to install the screen directly into the ceiling.  The tensioning feature assures that both the horizontal and vertical planes are held firmly in place providing a flat, even projection surface.

The motor has an automatic thermal cutoff system which prevents burnouts. In addition, it features a braking system that prevents "creeping" by supplying adjustable limit switches to automatically stop picture surface in the "up" and "down" positions.

This heavy-duty screen has a metal casing (steel) with matching end caps giving it a finished, professional look. The in-the-roller motor is designed to be as quiet as possible and is oiled for life. An optional floating mounting bracket allows the screen to be mounted onto a wall or ceiling studs and aligned left or right.
If you own a Da-Lite electric screens (wide formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L:
Type
Style Cosmopolitan Electrol
Front/Rear Projection Front
Mount Wall or Ceiling
Finish Cinema Vision HC - flame retardant and mildew resistant fiberglass
Tension Control Tensioned
Keystone Control Not Applicable
Dimensions
Overall Size Not Specified by Manufacturer
Image Size 87 x 139" (2.2 x 3.5 m)
Diagonal 164" (4.2 m)
Format 16:10 Wide Format
Aspect Ratio 16:10
Masking Options Not Applicable
Controls
Voltage 120V, 60Hz
With Low Voltage Controller
Integrated Control
Motor mounted inside the roller with a patented noise silencer
Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
Control Options Wireless Remote Control for LVC
Radio Frequency Remote
Infrared Remote
Key Locking Switch Cover Plate for 120V Switch or LVC Switch
Key Operated Switch for 120V only (Note: Cannot be used with LVC)
220V (50 Hz)
Motor Video Projector Interface Control - 12V or 5V
External SCB-100 - RS-232 Serial Control Board
NET-100 Ethernet-Serial Adapter
Casing
Color White
Material 21-gauge steel
Length 152" (3.9 m)
General
Shipping Weight 85 lb (38.6kg)
Packaging Info
Package Weight 130.0 lb
Box Dimensions (LxWxH) 168.0 x 13.0 x 10.0"
The user manual for the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L can be downloaded in .pdf format if it did not come with your new electric screens (wide formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite electric screens (wide formats)s, where you can use our link to download the user manual for the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L.

The user manual lists all of the functions of the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L, all the basic and advanced features and tells you how to use the electric screens (wide formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite 34506L Cosmopolitan Electrol Motorized Projection 34506L. User manuals are also available on the Da-Lite website under A/V Presentation - Projection Screens - Electric Screens (Wide Formats).
