User manual Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150

Operating instructions and pdf manual for use - Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150 User manual, User manual Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150, Datavideo, NVW-150, Camera-Top, High, Power, WiFi,


User manual for Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150

Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150
  • Manufacturer: Datavideo
  • Basic description and contents of package
  • Product classification: Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems
  • Safety instructions
  • Startup and operation of the wireless transmission systems
  • Tips for setting up your Datavideo
  • Settings and expert assistance
  • Contact Datavideo service
  • Troubleshooting
  • Warranty information
  • Price: 700 USD
We recommend checking out our discussion threads on the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150, which address similar problems with connecting and setting up Wireless Transmission Systems Datavideo.



User manual for the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150

The user manual for the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150 provides necessary instructions for the proper use of the product Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems.

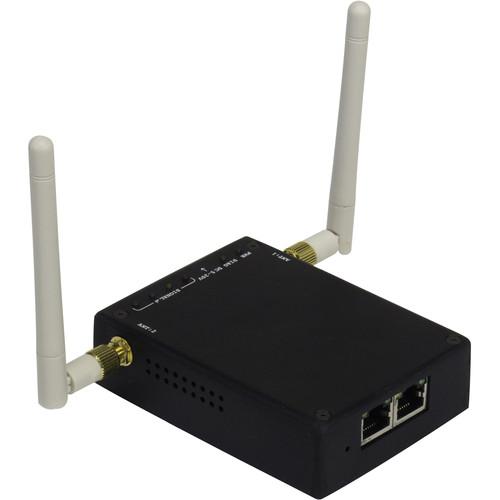

The NVW-150 Camera-Top High Power WiFiF Bridging Unit from Datavideo is a powerful miniature camera top Wifi transmitter, which can be powered by a main power outlet or a variety of battery solutions via a 2-pin LEMO connector. You can connect any network enabled device via an Ethernet connection to the NVW-150 which can then be linked to a second NVW-150 or NVW-250 unit.

The NVW-150 uses MIMO technology with 26dBm (aggregate) transmit power and carrier class receiver sensitivity. The device is designed to be mounted on to any cameras hot/cold shoe and powered from any DC source from 5 to 20 volts or via power over Ethernet (9-24v). It comes with two 3dBi omni-directional antennas ideal for use in short to medium range environments.

A built-in LED signal strength indicator allows you to remain within range, while the unit will automatically adjust transmission rates and channel numbers based on current link conditions. In more challenging environments, the devices comprehensive web interface offers a full site survey.The NVW-150 uses completely unlicensed 5Ghz bands and complies with IEEE802.11d global standards for license free operation worldwide, offering transmission speeds of up to 300Mbps and ranges in excess of 0.25Km (standard antenna) / 10km (external antenna and height dependent) while staying below the UKs 30 dBm EIRP power limit.

The NVW-150 supports multiple operating modes, in addition to the standard point to point mode Point to multipoint mode allows you to connect multiple NVW-150 units together. The unit can act as a high-powered wireless router, in this mode the Ethernet port becomes the WAN port. The unit is ideal for use with Datavideo NVS-20 H264 encoder and NVD-20 decoder (sold separately).
If you own a Datavideo wireless transmission systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150:
Specifications
    Frequency Band 5 GHz Band B (unlicensed)
    Wi-Fi Technology MIMO 802.11n 802.11a
    Network Interface 2 x 10/100 Ethernet ports
    Transmission Distance 820' (0.25 km) standard antenna
    6.2 mi (10 km) (external antenna and height dependent) at below 30 dBm EIRP (UK limit)
    Transmission Technology OFDM
    Transmitted Power 26 dBm (aggregated)
    Sensitivity -95 dBm
    Compliance IEEE802.11d
    Antennas 2 x External 3 dBi omni-directional (included)
    Supported Data Rates up to 300 Mbps
    Indicators LED, signal strength
    Connector 2-pin LEMO, power input
    Power Method 5 to 20 VDC power source
    9 to 24 VDC PoE (power over Ethernet)
    Dimensions 4 x 3 x 1" (10.1 x 7.6 x 2.5 cm)
    Packaging Info
    Package Weight 2.05 lb
    Box Dimensions (LxWxH) 10.5 x 8.2 x 3.0"
    The user manual for the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150 can be downloaded in .pdf format if it did not come with your new wireless transmission systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Datavideo users keep a unique electronic library for Datavideo wireless transmission systemss, where you can use our link to download the user manual for the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150.

    The user manual lists all of the functions of the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150, all the basic and advanced features and tells you how to use the wireless transmission systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Datavideo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Datavideo NVW-150 Camera-Top High Power WiFi Bridging NVW-150. User manuals are also available on the Datavideo website under Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems.
