User manual Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P

Operating instructions and pdf manual for use - Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P User manual, User manual Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P, Datavideo, TLM-700HD, 7, LCD, Monitor, TLM-700HD-P,


User manual for Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P

Datavideo TLM-700HD 7
  • Manufacturer: Datavideo
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - On Camera Monitors
  • Safety instructions
  • Startup and operation of the on camera monitors
  • Tips for setting up your Datavideo
  • Settings and expert assistance
  • Contact Datavideo service
  • Troubleshooting
  • Warranty information
  • Price: 800 USD
We recommend checking out our discussion threads on the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P, which address similar problems with connecting and setting up On Camera Monitors Datavideo.



User manual for the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P

The user manual for the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

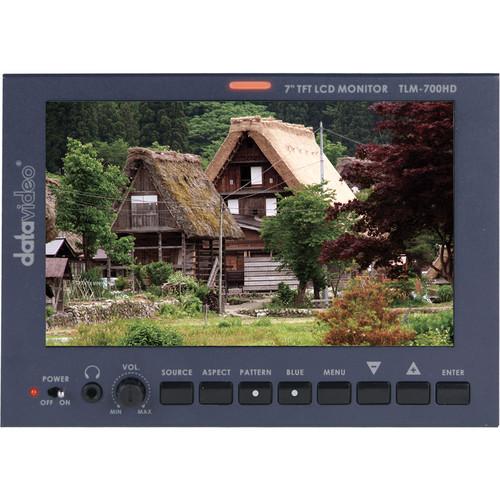

The Datavideo TLM-700HD 7" LCD Monitor with Panasonic Battery Mount is a 7" HD monitor with a rugged design that is suitable for outdoor use in the field or in a studio. In addition to offering NTSC/PAL support, the monitor offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m² and produces high-quality images at a resolution of 800 x 480. A wide viewing angle ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.

Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios. The Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun. With the time code mode, you can view the time code on the screen. In addition, the unit supports VITC (vertical interval time code) type of time code. The featured dual color tally system indicates different program statuses.

Equipped with an integrated color bar, the TLM-700HD LCD monitor offers precise and accurate screen calibration. Multi-language OSD (on-screen display) offers an intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only).

The TLM-700HD LCD monitor supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video input, thereby offering all-round connectivity.
If you own a Datavideo on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Datavideo TLM-700HD 7Download user manual for Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P
(PDF file, 0.72 MB)
Additional parameters of the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P:
Size 7" 16:9 Wide Screen Panel
Resolution 800 x 480
Viewing Angle (V)+60/-40°, (H)+60/-60°
Interface 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
1x Component Y.U.V Sony Betacam Spec
1x CV input
1x HDMI input
1x D-Sub 15 Pin Plug (Tally Light Signal)
Operating Temperature 32 to 102°F (0 to 40°C)
Humidity 10 to 90% (non-condensing)
Firmware SVN 1.6
Dimensions 7.3 x 5.19 x 2.8" (187 x 132 x 72 mm)
Weight 2.6lb (1.2kg)
Power DC 12V / 1.5A
Packaging Info
Package Weight 3.4 lb
Box Dimensions (LxWxH) 11.0 x 9.5 x 4.2"
The user manual for the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Datavideo users keep a unique electronic library for Datavideo on camera monitorss, where you can use our link to download the user manual for the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P.

The user manual lists all of the functions of the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Datavideo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Datavideo TLM-700HD 7" LCD Monitor TLM-700HD-P. User manuals are also available on the Datavideo website under Professional Video - Monitors - On Camera Monitors.
