User manual for the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001
The user manual for the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Modules.

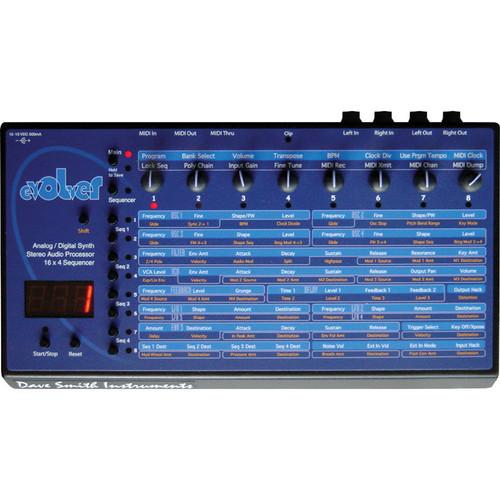

The Evolver Desktop Monophonic Synthesizer from Dave Smith Instruments is a desktop monophonic synth that is powered by two digitally controlled analog oscillators in addition to two digital wavetable oscillators. With its analog oscillators, you can select from sawtooth, triangle, saw/triangle, pulse-width, and hard-sync waves. The digital wavetable oscillators feature waves and wave-sequencing capabilities lifted from the Prophet VS synth.
Further tone-shaping possibilities come from the analog low-pass filters, 4 LFOs, 3 envelope generators, digital delays, and digital high-pass filter. The Evolver's 16x4-step sequencer is designed to create pseudo-polyphonic sounds. You can use the Evolver as an audio processing device thanks to its dual 1/4" TS audio inputs. The unit has 5-pin DIN MIDI in, out, and through connections and can be daisy-chained to other Evolvers to create polyphonic tones.
|
If you own a Dave Smith Instruments synthesizer modules and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001:
| MIDI | 1x 5-pin DIN MIDI input
1x 5-pin DIN MIDI output
1x 5-pin DIN MIDI through | | Audio I/O | 2x 1/4" (6.3 mm) unbalanced TS inputs
2x 1/4" (6.3 mm) unbalanced TS outputs | | Oscillators | 2x digitally controlled analog oscillators
2x digital wavetable oscillators
1x white noise generator | | Waveform Type | Analog Oscillators: sawtooth, triangle, saw/triangle mix, pulse wave (with pulse width modulation) and hard sync
Digital Wavetable Oscillators: Prophet VS waves, wave sequencing capability, FM and ring modulation | | Low-Pass Filter | Per Channel: 1x analog Curtis filter with selectable 2 and 4-pole operation (self resonating in 4-pole mode) | | High-Pass Filter | Digital | | Envelope Generators | 1x filter
1x VCA
1x assignable (4-stage ADSR) | | LFO | 4 | | Glides | Separate rates per oscillator (portamento) | | VCA | Analog | | Delay | 3x separate, syncable stereo line delays | | Sequencer | 16 x 4 step sequencer | | Programs | 512x fully editable programs (4 banks of 128) | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 16.4 x 10.5 x 5.9" | |
The user manual for the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001 can be downloaded in .pdf
format if it did not come with your new synthesizer modules, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Dave Smith Instruments users keep a unique electronic library
for Dave Smith Instruments synthesizer moduless,
where you can use our link to download the user manual for the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001.
The user manual lists all of the functions of the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001,
all the basic and advanced features and tells you how to use the synthesizer modules.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Dave Smith Instruments service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Dave Smith Instruments Evolver Desktop Monophonic DSI-1001. User manuals are also
available on the Dave Smith Instruments website under Pro Audio - Musical Instruments - Synthesizer Modules.
