User manual for the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240
The user manual for the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Fans & CPU Coolers.

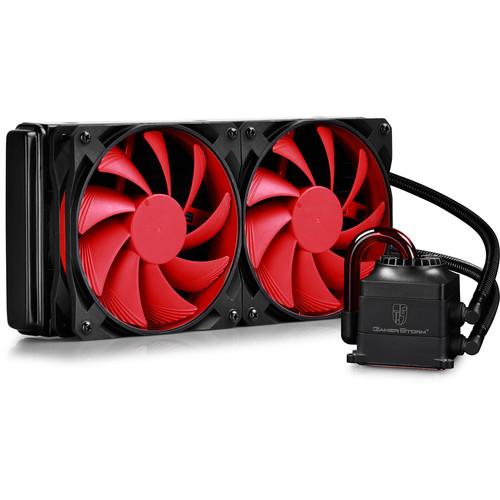

The Captain 240 Liquid CPU Cooler from Deepcool comes with two 120mm fans along with a radiator and a liquid pump to provide an All-in-One cooling solution for your processor. The pump block features a three-phase induction motor as well as an impeller inside to reduce vibrations and noise. To transfer heat effectively from the processor, the pump comes with a copper base with a water micro-channel that extends the cooling area.
Deepcool has outfitted the pump with LED lighting along with a transparent tube that lets you view the moving liquid. The liquid is pushed to the radiator where the two 120mm PWM fans provide cooling so your processor can run at maximum performance. The fan impeller is removable from the housing, which lets you lubricate and clean the inside. Included along with the Captain 240 is a mounting clip kit that lets you attach the pump to select AMD and Intel sockets.
|
If you own a Deepcool fans & cpu coolers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240:
Compatible with | Intel Sockets: LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150 AMD Sockets: FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 | Fans Included | 2 x 120 mm PWM fans | Fan Dimensions | 4.7 x 4.7 x 1.0" / 120.0 x 120.0 x 25.0 mm | Fan Air Pressure | 3.71 mmH20 (max) | Connectors | Fan: 4-pin Pump: 3-pin | Current | Pump: 0.16 ±15% A Fan: 0.26 ±10% A (max) | Fan Life Expectancy | 100,000 hours | Voltage | Fan Rated: 12 VDC Pump Operating: 6 to 13.8 VDC Pump Rated: 12 VDC | Power Consumption | Pump: 1.92 W | Fan Speed (rpm) | 600 ±200 to 2200 ±10% rpm | Fan Noise Level | 17.6 to 39.3 dBA | Material of Construction | Radiator: aluminum | Weight | 2.6 lb / 1.2 kg | Dimensions | Radiator: 10.8 x 4.7 x 1.1" / 274.0 x 120.0 x 27.0 mm | Package Weight | 3.6 lb | Box Dimensions (LxWxH) | 12.0 x 8.0 x 5.0" | |
The user manual for the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240 can be downloaded in .pdf
format if it did not come with your new fans & cpu coolers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Deepcool users keep a unique electronic library
for Deepcool fans & cpu coolerss,
where you can use our link to download the user manual for the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240.
The user manual lists all of the functions of the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240,
all the basic and advanced features and tells you how to use the fans & cpu coolers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Deepcool service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Deepcool Captain 240 Liquid CPU Cooler CAPTAIN 240. User manuals are also
available on the Deepcool website under Computers & Solutions - Computer Components - Fans & CPU Coolers.
