User manual Dell P2213 22" Professional Widescreen LED Monitor P2213

Operating instructions and pdf manual for use - Dell P2213 22" Professional Widescreen LED Monitor P2213 User manual, User manual Dell P2213 22" Professional Widescreen LED Monitor P2213, Dell, P2213, 22, Professional, Widescreen, LED, Monitor, P22


User manual for Dell P2213 22" Professional Widescreen LED Monitor P2213

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Dell P2213 22
  • Manufacturer: Dell
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Dell
  • Settings and expert assistance
  • Contact Dell service
  • Troubleshooting
  • Warranty information
  • Price: 181 USD
We recommend checking out our discussion threads on the Dell P2213 22" Professional Widescreen LED Monitor P2213, which address similar problems with connecting and setting up Computer Monitors Dell.



User manual for the Dell P2213 22" Professional Widescreen LED Monitor P2213

The user manual for the Dell P2213 22" Professional Widescreen LED Monitor P2213 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

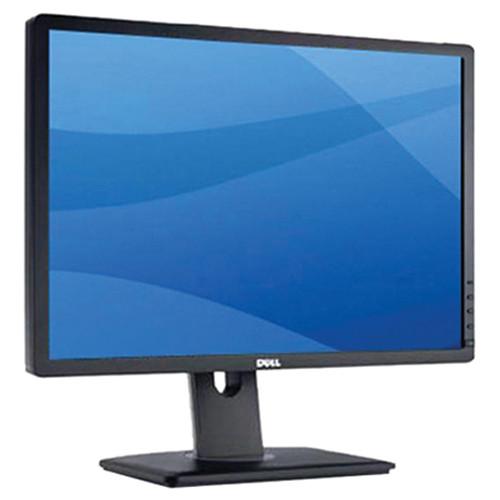

The P2213 22" Professional Widescreen LED Monitor from Dell is a widescreen flat panel display with comfortable and energy-efficient design. It features 1680 x 1050 at 60 Hz HD resolution, vivid color palate and depth as well as high dynamic contrast ratio. The monitor offers tilt, swivel, pivot and height adjustment features to suit your personal work style. Additionally, the convenient ports enable you to work comfortably.
If you own a Dell computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dell P2213 22" Professional Widescreen LED Monitor P2213 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Dell P2213 22Download user manual for Dell P2213 22" Professional Widescreen LED Monitor P2213
(PDF file, 1.13 MB)
Additional parameters of the Dell P2213 22" Professional Widescreen LED Monitor P2213:
Specifications
    Display
    Viewable Size Diagonal: 22" (55.88 cm)
    Aspect Ratio Widescreen (16:10)
    Panel/Display Type TN (twisted nematic), anti glare with hard coat 3H
    Optimal Resolution 1680 x 1050 at 60 Hz
    Contrast Ratio 1000:1 (typical)
    2,000,000:1 (max dynamic contrast ratio)
    Brightness 250 cd/m² (typical)
    Response Time 5 ms (back to white)
    Viewing Angle 160° vertical/170° horizontal (max)
    Color Support 16.7 million colors
    Pixel Pitch 0.01" (0.282 mm)
    Backlight Panel: LED
    Display Type Widescreen flat panel display
    Other Specs
    Connectivity 1 Digital Visual Interface connector (DVI-D) with HDCP
    1 Video Graphics Array (VGA)
    1 DisplayPort (version 1.2)
    2 USB 2.0 downstream ports
    DC power connector for Dell Soundbar (AX510 only)
    Devices Built-In: USB 2.0 hi-speed hub (with 1 USB upstream port and 2 USB downstream ports)
    Audio DC-out
    Security Security lock slot*
    Anti-theft stand lock slot (to panel)

    *Cable lock sold separately

    Stand Height-adjustable stand, tilt, swivel and built in cable-management
    Flat Panel Mount Interface VESA 3.94" (100 mm)
    Electrical
    Voltage Required 100 to 240 VAC/50 or 60 Hz ± 3 Hz/1.5 A (max)
    Power Consumption Operating: 25 W (typical)/45 W (max)*
    Stand By/Sleep: Less than 0.3 W

    Op*Maximum power consumption with max luminance, Dell Soundbar and USB active

    Environmental
    Temperature Range Operating: 32 to 104°F (0 to 40°C)
    Non-Operating (Storage): -4 to 140° F (-20 to 60°C)
    Humidity Range Operating: 10 to 80% non-condensing
    Non-Operating (Storage): 5 to 90% non-condensing
    Altitude Operating: 10,000' (3,048 m) max
    Non-Operating: 35,000' (10,668 m) max
    Compliance and Standards
    Compliance ENERGY STAR 5.1
    EPEAT Gold
    TCO Certified Displays
    Size and Weight
    Preset Display Area ( HxV) 18.65 x 11.66" (47.37 x 29.62 x cm)
    Dimensions (HxWxD) 14.52 ~ 19.58 x 20.09 x 7.22" (36.88 ~ 49.73 x 51.03 x 18.34 cm) with stand
    13.10 x 20.09 x 2.35" (33.27 x 51.03 x 5.97 cm) without stand
    Weight 7.55 lb (3.42 kg) panel only - for VESA mount
    Packaging Info
    Package Weight 15.0 lb
    Box Dimensions (LxWxH) 23.0 x 16.0 x 8.5"
    The user manual for the Dell P2213 22" Professional Widescreen LED Monitor P2213 can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dell users keep a unique electronic library for Dell computer monitorss, where you can use our link to download the user manual for the Dell P2213 22" Professional Widescreen LED Monitor P2213.

    The user manual lists all of the functions of the Dell P2213 22" Professional Widescreen LED Monitor P2213, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dell service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dell P2213 22" Professional Widescreen LED Monitor P2213. User manuals are also available on the Dell website under Computers & Solutions - Monitors & Displays - Computer Monitors.
